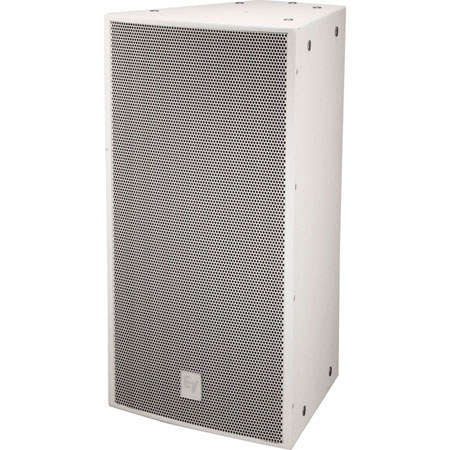

Electro-Voice EVF-1122S 96 12" Two-Way Full-Range Loudspeaker, 90x60deg. Coverage Pattern, 98dB Sensitivity, 8 Ohms Impedance, EVCoat, Single, White

SKU: EVF1122S96WH MFR: F.01U.272.507
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a 500W continuous power PA speaker.
  • Enjoy wide, even coverage, perfect for live sound at venues with 90x60 degree.
  • Ensure durability with its weather-resistant birch enclosure, great for any event.
  • Get flexible setup options using multiple M10 threaded suspension points.
  • This portable PA speaker delivers high sensitivity at 98dB, for clear audio.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Paul T : Good price for a good quality speaker.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1122S 96 Specifications

  • Environmental Specifications

    Standard versions: IEC 60529 IP44

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Frequency Response

    -3 dB: 58-16000 Hz
    -10dB: 49-19000 Hz

  • Recommended High-Pass Frequency

    65 Hz

  • Sensitivity 1 W/1 m

    98dB

  • Max. SPL/1m (calc)

    131dB

  • Coverage (Nominal -6 dB)

    H: 90 deg.
    V: 60 deg.

  • System Power Handling

    500/1000/2000 Watts (Continuous/Program/Peak)

  • LF Transducer

    SMX2121, 12" (30.48cm) Driver

  • HF Transducer

    ND2B, 2" (5.08cm) Diaphragm Compression Driver

  • Crossover Frequency

    1450Hz

  • Nominal Impedance (Passive)

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grill

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (W x D x H)

    406.3 x 413.3 x 768.6mm (15.99 x 16.27 x 30.25")

  • Weight

    28.6kg (63.05lbs)

  • UPC Code

    00800549301473

About Electro-Voice EVF-1122S 96

When it comes to high-quality sound performance, the EVF-1122S 96 12" Two-Way Full-Range White Loudspeaker stands out in the audio equipment market. This advanced loudspeaker is meticulously crafted from weather-resistant birch, ensuring its durability and longevity. Further enhancing its resilience, the loudspeaker is coated with a layer of EVCoat, offering superior protection against harsh environmental elements.

The EVF-1122S 96 12" Loudspeaker boasts a unique acoustic design that allows for the creation of both vertical and horizontal clusters, utilizing any combination of loudspeakers. This feature, coupled with a wide selection of full-range, low-frequency, and subwoofer loudspeakers, makes the EVF series a versatile choice for any audio system design, regardless of the application or budget.

One of the standout features of this two-way full-range loudspeaker is its innovative input panel. This panel offers the option of Phoenix-type connectors, or the easy addition of a dual NL4-type connector cover plate or gland nut cover plate. This feature is particularly useful for weatherizing applications, ensuring the loudspeaker's performance isn't compromised in adverse weather conditions.

The EVF-1122S 96 12" Loudspeaker also features an externally accessible jumper for selecting passive or active operation. For those requiring use in distributed systems, an available 70.7/100V transformer kit can be conveniently mounted to the input panel. These features collectively contribute to the loudspeaker's flexibility, enabling it to cater to a wide range of venues with less equipment, while swiftly and accurately meeting customer requirements.

In summary, the EVF-1122S 96 12" Two-Way Full-Range White Loudspeaker is a robust, versatile, and high-performing audio equipment choice, designed to deliver superior sound quality in any setting.

Electro-Voice EVF-1122S 96 Features

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • 4th-order passive crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice full-range loudspeaker.
  • Achieve powerful audio projection with a 500W continuous power PA speaker.
  • Enjoy wide, even coverage, perfect for live sound at venues with 90x60 degree.
  • Ensure durability with its weather-resistant birch enclosure, great for any event.
  • Get flexible setup options using multiple M10 threaded suspension points.
  • This portable PA speaker delivers high sensitivity at 98dB, for clear audio.

What's in the box:

  • Electro-Voice EVF-1122S 96 12 " Two-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
