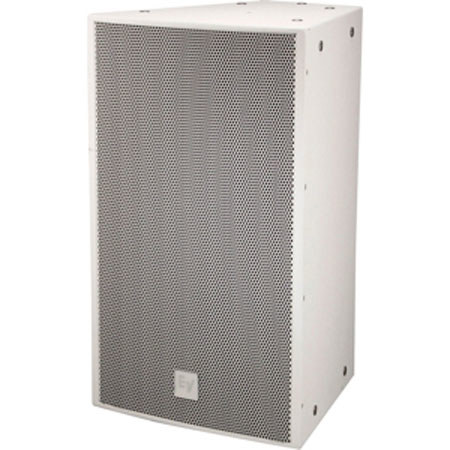

Electro-Voice EVF-1152D/43 15" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 100dB Sensitivity, 40-21000Hz Frequency, 40x30deg. Coverage, Single, White

SKU: EVF1152D43WH MFR: F.01U.272.563
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve optimal coverage with the 40x30 degree dispersion, ideal for live sound venues.
  • Enjoy powerful performance with 600W continuous power handling for demanding audio.
  • Rely on its durable birch enclosure, weather-resistant for indoor/outdoor PA speaker use.
  • Get crystal-clear audio with a frequency response of 40-21000 Hz for immersive sound.
  • Install with ease using M10 threaded points, perfect for permanent PA system setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152D/43 Specifications

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Max. SPL/1m (calc)

    134 dB

  • System Power Handling

    600 W continuous, 1200 W program, 2400 W peak

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    40 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    30 deg.

  • LF Transducer

    DVX3151A, 15" / 381mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.60 x 469.9 x 466.59mm

  • Weight

    75.7lbs / 34.33kg

About Electro-Voice EVF-1152D/43

Find unparalleled audio performance with the Electro-Voice EVF-1152D/43 15" 2-Way Full-range Loudspeaker, meticulously engineered to deliver powerful and reliable sound in a stylish white finish. This high-quality loudspeaker boasts an impressive 8 Ohms nominal impedance and a sensitivity of 100dB, ensuring that your audio is projected clearly and with great impact, even in large venues or outdoor settings.

The EVF-1152D/43 is designed to cater to the most demanding audio environments, offering a broad frequency response range from 40Hz to 21kHz. This wide frequency range allows the speaker to handle the full spectrum of sounds, from the deep bass to the highest treble, with exceptional clarity and balance. Whether you're amplifying live performances, events, or installations, this speaker is built to provide a comprehensive audio solution.

Featuring a 40x30 degree coverage pattern, the rotatable waveguide ensures precise sound dispersion, allowing for targeted audio delivery and optimal audience coverage. This makes the loudspeaker an ideal choice for professional setups where sound direction and spread are critical.

Crafted by Electro-Voice, a brand synonymous with durable and high-performance audio equipment, the EVF-1152D/43 is a testament to their commitment to audio excellence. Its robust construction not only ensures longevity but also enhances the overall sound quality, making it a go-to choice for audio professionals seeking a blend of style, power, and reliability.

In summary, the Electro-Voice EVF-1152D/43 15" 2-Way Full-range Loudspeaker is a versatile and powerful audio solution that stands out for its high sensitivity, expansive frequency range, and precise coverage. It's an exceptional choice for those who demand the best in sound reinforcement.

Electro-Voice EVF-1152D/43 Features

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3-inch DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40deg. to 90deg
  • 4th-order crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve optimal coverage with the 40x30 degree dispersion, ideal for live sound venues.
  • Enjoy powerful performance with 600W continuous power handling for demanding audio.
  • Rely on its durable birch enclosure, weather-resistant for indoor/outdoor PA speaker use.
  • Get crystal-clear audio with a frequency response of 40-21000 Hz for immersive sound.
  • Install with ease using M10 threaded points, perfect for permanent PA system setups.

What's in the box:

  • Electro-Voice EVF-1152D/43 15 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
