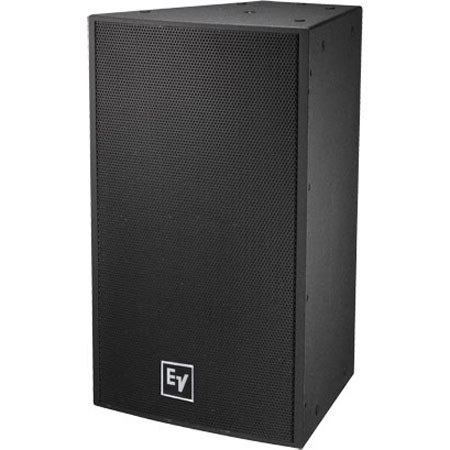

Electro-Voice EVF-1152D/66 15" 2-Way Full-range Loudspeaker, Single, Black
See all Electro-Voice items

Electro-Voice EVF-1152D/66 15" 2-Way Full-range Loudspeaker, 8 Ohms Nominal Impedance, 100dB Sensitivity, 40-21000Hz Frequency, 60x60deg. Coverage, Single, Black

SKU: EVF1152D66BK MFR: F.01U.272.570
Be the first to review this item5 questions, 3 answers
$3,512.00
OR
$293/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve powerful audio output with 600W continuous power handling for any venue.
  • Enjoy wide, even sound coverage with 60x60 degree dispersion, great for live sound.
  • This durable PA speaker is built with a weather-resistant birch enclosure, IP44 rated.
  • Get crystal-clear highs from the 3" diaphragm compression driver, enhancing vocal clarity.
  • Easily install this PA speaker with its 22 M10 threaded points for secure mounting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
2-Year Adorama Protect$299.99
3-Year Adorama Protect$449.99
5-Year Adorama Protect$949.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does the 2-way full-range feature mean in the Electro-Voice EVF-1152D/66 Loudspeaker?

The 2-way full-range feature means that this loudspeaker is capable of producing both low and high frequencies. This provides a more balanced and comprehensive sound output.

What is the significance of the 60x60-degree rotatable waveguide?

The 60x60-degree rotatable waveguide allows for mid-far field medium long throw raw spread coverage pattern. This means the sound can reach a wider area, providing an immersive audio experience for your audience.

What does the 100dB sensitivity mean?

A sensitivity of 100dB means that the loudspeaker is highly efficient in converting power into sound. The higher the sensitivity, the louder the sound output at a given power level.

What applications is the Electro-Voice EVF-1152D/66 Loudspeaker suitable for?

The Electro-Voice EVF-1152D/66 Loudspeaker is suitable for a variety of applications, including live performances, concerts, theater productions, and any other events requiring high-quality sound.

What does the 8 Ohms nominal impedance mean?

The 8 Ohms nominal impedance refers to the resistance the loudspeaker gives to the current from an amplifier. It helps ensure consistent and reliable performance from the speaker.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Electro-Voice EVF-1152D/66 Specifications

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Max. SPL/1m (calc)

    134 dB

  • System Power Handling

    600 W continuous, 1200 W program, 2400 W peak

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals

  • Coverage (Nominal -6 dB) Hdeg.

    60 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3151A, 15" / 381mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Standard versions: 16 GA Galvanneal, Powdercoat, with screen behind

  • Environmental

    Standard versions: IEC 60529 IP44

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.60 x 469.9 x 466.59mm

  • Weight

    75.7lbs / 34.33kg

  • UPC Code

    00800549699426

About Electro-Voice EVF-1152D/66

It's time to experience the exceptional audio performance with the Electro-Voice EVF-1152D/66 15" 2-Way Full-range Loudspeaker, a professional-grade audio equipment designed for those who demand high-quality sound. This powerful, black loudspeaker is engineered with a robust 15-inch woofer and a 2-way full-range design, capable of producing both low and high frequencies for a balanced, comprehensive sound output.

Boasting an impressive sensitivity of 100dB and a wide frequency range of 40-21000Hz, this loudspeaker ensures every note is captured and reproduced with utmost clarity and precision. The 8 Ohms nominal impedance guarantees consistent performance, making it a reliable choice for live performances, concerts, theater productions, and other events requiring superior sound quality.

One of the standout features of this Electro-Voice loudspeaker is its 60-degree x 60-degree rotatable waveguide. This design element allows for mid-far field medium long throw raw spread coverage pattern, ensuring the sound reaches every corner of your venue, providing an immersive audio experience for your audience.

Crafted for durability and longevity, this high-quality loudspeaker is more than just a sound system; it's a testament to Electro-Voice's commitment to delivering professional, reliable, and powerful audio solutions. Experience the difference with the EVF-1152D/66 15" 2-Way Full-range Loudspeaker.

Electro-Voice EVF-1152D/66 Features

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40deg. to 90deg
  • 4th-order crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve powerful audio output with 600W continuous power handling for any venue.
  • Enjoy wide, even sound coverage with 60x60 degree dispersion, great for live sound.
  • This durable PA speaker is built with a weather-resistant birch enclosure, IP44 rated.
  • Get crystal-clear highs from the 3" diaphragm compression driver, enhancing vocal clarity.
  • Easily install this PA speaker with its 22 M10 threaded points for secure mounting.

What's in the box:

  • Electro-Voice EVF-1152D/66 15 " 2-Way Full-range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
