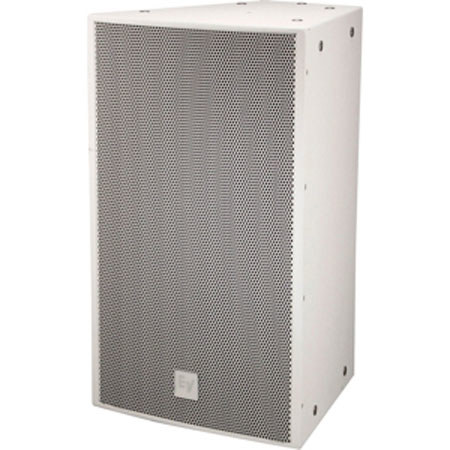

Electro-Voice EVF-1152D/66 15" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 100dB Sensitivity, 40-21000Hz, 60x60deg.Coverage, Single, White

SKU: EVF1152D66PW MFR: F.01U.272.573
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range PA speaker.
  • This durable PA speaker is weatherized for worry-free outdoor events & installations.
  • Get wide, even sound coverage (60x60 degrees) from this powerful PA loudspeaker.
  • Enjoy high sensitivity (100dB) & impressive 134dB max SPL for clear, impactful audio.
  • This 600W continuous power PA speaker delivers exceptional performance for any venue.
  • Its birch enclosure and stainless grille ensure lasting durability for your sound system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152D/66PI Specifications

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Max. SPL/1m (calc)

    134 dB

  • System Power Handling

    600 W continuous, 1200 W program, 2400 W peak

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals
    PI versions include dual-gland-nut input-panel cover

  • Coverage (Nominal -6 dB) Hdeg.

    60 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    60 deg.

  • LF Transducer

    DVX3151A, 15" / 381mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.60 x 469.9 x 466.59mm

  • Weight

    75.7lbs / 34.33kg

  • UPC Code

    00701001114771

About Electro-Voice EVF-1152D/66PI

While delivering exceptional audio performance, the Electro-Voice EVF-1152D/66 15" 2-Way PI-Weatherized White Loudspeaker is an embodiment of high-quality, durable, and efficient sound equipment. This professional-grade loudspeaker is engineered with an 8 Ohms nominal impedance and a sensitivity of 100dB, ensuring reliable and clear sound reproduction for any event.

Boasting a broad frequency range of 40-21000Hz, this loudspeaker guarantees to capture and deliver every sound detail, from the lowest bass to the highest treble. Its 60x60 degree rotatable waveguide is designed for mid-far field medium long throw raw spread coverage pattern, making it an ideal choice for live performances, concerts, and large venue events.

One of the standout features of the Electro-Voice EVF-1152D/66 is its PI-Weatherized design. This ensures the loudspeaker's durability and resilience, making it suitable for outdoor use without compromising its performance.

In a sleek white finish, this single, full-range loudspeaker not only delivers superior sound but also adds a touch of elegance to your audio setup. Experience the blend of style, functionality, and unmatched sound quality with the Electro-Voice EVF-1152D/66 15" 2-Way PI-Weatherized White Loudspeaker.

Electro-Voice EVF-1152D/66PI Features

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order crossover with HF protection

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range PA speaker.
  • This durable PA speaker is weatherized for worry-free outdoor events & installations.
  • Get wide, even sound coverage (60x60 degrees) from this powerful PA loudspeaker.
  • Enjoy high sensitivity (100dB) & impressive 134dB max SPL for clear, impactful audio.
  • This 600W continuous power PA speaker delivers exceptional performance for any venue.
  • Its birch enclosure and stainless grille ensure lasting durability for your sound system.

What's in the box:

  • Electro-Voice EVF-1152D/66 15 " 2-Way Full-range PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Limited Warranty
