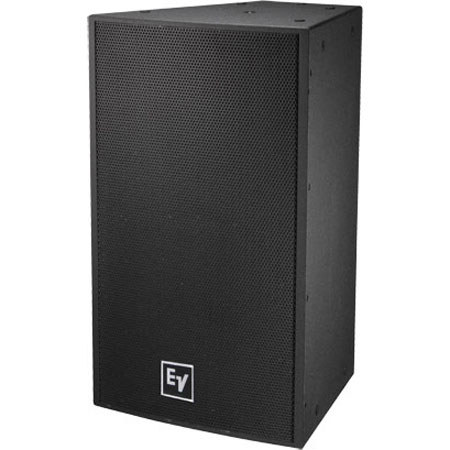

Electro-Voice EVF-1152D/94 15" 2-Way Full-range PI-Weatherized Loudspeaker, 8 Ohms Nominal Impedance, 100dB Sensitivity, 40-21000Hz, 90x40deg.Coverage, Single, Black

SKU: EVF1152D94PB MFR: F.01U.272.576
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this 15" Electro-Voice full-range PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events, offering durability and reliability.
  • Enjoy wide sound coverage (90x40 degrees) with this powerful PA system for clear audio.
  • Get peak performance with 2400W power output, ideal for live sound and professional use.
  • With M10 threaded points, this install speaker offers versatile suspension options for setup.
  • The rugged birch enclosure ensures lasting durability for your PA speakers and sound system.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152D/94PI Specifications

  • Frequency Response (-3 dB)

    70 - 18000 Hz

  • Frequency Response (-10 dB)

    40 - 21000 Hz

  • Recommended High-Pass Frequency

    45 Hz

  • Sensitivity 1 W/1 m

    100 dB

  • Max. SPL/1m (calc)

    134 dB

  • System Power Handling

    600 W continuous, 1200 W program, 2400 W peak

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Input Connections

    Phoenix/Euroblock style screw terminals
    PI versions include dual-gland-nut input-panel cover

  • Coverage (Nominal -6 dB) Hdeg.

    90 deg.

  • Coverage (Nominal -6 dB) Vdeg.

    40 deg.

  • LF Transducer

    DVX3151A, 15" / 381mm Woofer

  • HF Transducer

    DH7N, 3" / 76.2mm Diaphragm Compression Driver

  • Internal Passive Crossover Frequency

    1300 Hz

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    PI versions: 18 GA Stainless, Powdercoat, with hydrophobic cloth behind

  • Environmental

    PI versions: IEC 60529 IP55

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.60 x 469.9 x 466.59mm

  • Weight

    75.7lbs / 34.33kg

About Electro-Voice EVF-1152D/94PI

How can you elevate your audio experience to professional standards The Electro-Voice EVF-1152D/94 15" 2-Way Full-range PI-Weatherized Loudspeaker is the answer for those seeking a durable, high-quality, and powerful sound reinforcement solution. Designed by the renowned Electro-Voice brand, this black loudspeaker is engineered to deliver clear, robust audio performance with its impressive 100dB sensitivity and wide frequency range of 40-21000Hz.

Crafted for both live sound and installed sound applications, the EVF-1152D/94 is a reliable choice for venues ranging from concert halls and theaters to houses of worship. Its expansive 90x40 degree coverage angle ensures that sound is distributed evenly, reaching every corner of the space with precision. The rotatable waveguide allows for flexible positioning, making it adaptable to various acoustic environments.

The 8 Ohms nominal impedance of this loudspeaker ensures compatibility with a wide range of audio systems, while the full-range capability means it can handle both high and low frequencies with ease. The PI-Weatherized construction signifies that this loudspeaker is built to withstand the elements, making it an ideal option for outdoor events or settings where exposure to weather is a concern.

In summary, the Electro-Voice EVF-1152D/94 loudspeaker stands out as a professional-grade audio solution that combines powerful sound, wide coverage, and weather-resistant durability. It's a top-tier choice for audio professionals and enthusiasts who demand the best in sound quality and reliability.

Electro-Voice EVF-1152D/94PI Features

  • Compact and lightweight
  • Low distortion, high efficiency
  • Ideal for fixed installations
  • DVX3151A woofer with fully symmetric drive
  • 3" DH7N titanium/neodymium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Power handling: 600 W continuous, 2400 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply birch enclosure in three finishes: EVCoat, PI and fiberglass (FG)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this 15" Electro-Voice full-range PA loudspeaker.
  • This weatherized PA speaker is perfect for outdoor events, offering durability and reliability.
  • Enjoy wide sound coverage (90x40 degrees) with this powerful PA system for clear audio.
  • Get peak performance with 2400W power output, ideal for live sound and professional use.
  • With M10 threaded points, this install speaker offers versatile suspension options for setup.
  • The rugged birch enclosure ensures lasting durability for your PA speakers and sound system.

What's in the box:

  • Electro-Voice EVF-1152D/94 15 " 2-Way Full-range PI-Weatherized Loudspeaker
  • Dual-gland-nut Input-panel Cover
  • Electro-Voice 3 Year Limited Warranty
