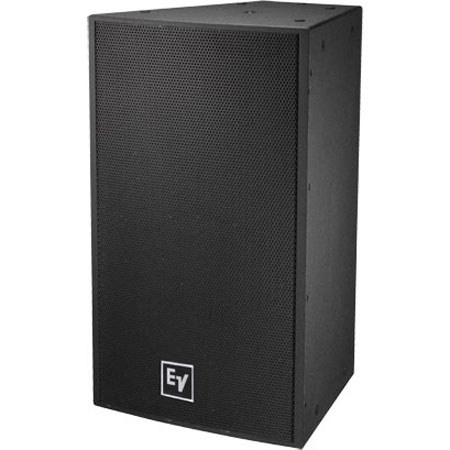

Electro-Voice EVF-1152S/96 15" 2-Way Full-Range PI-Weatherized Loudspeaker, 90x60deg., 2000W Peak, 8 Ohms Impedance, 101dB Sensitivity, 41Hz-18kHz, Single, Black

SKU: EVF1152S96PB MFR: F.01U.272.536
Earn VIP Reward Points

Key Features

  • Experience powerful, full-range audio with this 15" PA loudspeaker for crystal-clear sound.
  • This durable PA speaker is weatherized, perfect for outdoor events and permanent installations.
  • Enjoy wide sound coverage with a 90x60 degree dispersion, ideal for live sound reinforcement.
  • Get peak performance with 2000W power handling, ensuring robust sound for any application.
  • High sensitivity at 101dB means this PA speaker delivers loud, clear audio with less power.
  • Built tough with birch enclosure & steel grille, this PA loudspeaker offers lasting durability.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/96PI Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    90 deg. (or 60 deg. )

  • Vertical Coverage

    60 deg. (or 90 deg.

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    Gland Nut with Included Input Panel Cover

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    Stainless Steel with Hydrophobic Cloth

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/96PI

Where high-quality sound reinforcement is a must, the Electro-Voice EVF-1152S/96 15" 2-Way Full-Range PI-Weatherized Black Loudspeaker stands as a superior choice. This compact, lightweight loudspeaker is engineered for a multitude of applications, delivering powerful, clear sound in a robust and reliable package.

The EVF-1152S/96 is equipped with the ND2B, a high-output 2" titanium compression driver, seamlessly paired with a Constant Directivity 90-degree x 60-degree waveguide. This combination ensures optimal sound dispersion and coverage. The heart of this loudspeaker is the SMX2151 15" woofer, designed using FEA optimization for motor, suspension, and electrical design. This results in minimal distortion, high efficiency, and maximum intelligibility, even at high SPL levels.

The crossover in this loudspeaker employs steep 24 dB/octave slopes with equalization, delivering a smooth response in the vocal range and linear off-axis response. A built-in protection circuit ensures long-term reliability, making this speaker a durable choice for any audio setup.

The EVF-1152S/96's trapezoidal enclosure is constructed from weather-resistant birch and coated with EVCoat, offering maximum protection from the elements. This makes it an ideal choice for outdoor events or venues. The innovative design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF & EVH Series. With seven horn patterns to choose from and an assortment of Low Frequency and subwoofer loudspeakers, this loudspeaker offers unparalleled flexibility in system design.

The input panel is designed for versatility, offering a choice of a phoenix style connector or the option to add a dual NL4 type connector cover plate or gland nut cover plate for weatherizing applications. An externally accessible jumper allows for easy selection between passive or active operation. An optional 70.7/100 Volt transformer kit can be mounted to the input panel for use in distributed systems.

In summary, the Electro-Voice EVF-1152S/96 15" 2-Way Full-Range PI-Weatherized Black Loudspeaker is a versatile, high-performance audio solution, offering a wide range of features to meet the demands of any venue or event.

Electro-Voice EVF-1152S/96PI Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 90 Degree x 60 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience powerful, full-range audio with this 15" PA loudspeaker for crystal-clear sound.
  • This durable PA speaker is weatherized, perfect for outdoor events and permanent installations.
  • Enjoy wide sound coverage with a 90x60 degree dispersion, ideal for live sound reinforcement.
  • Get peak performance with 2000W power handling, ensuring robust sound for any application.
  • High sensitivity at 101dB means this PA speaker delivers loud, clear audio with less power.
  • Built tough with birch enclosure & steel grille, this PA loudspeaker offers lasting durability.

What's in the box:

  • Electro-Voice EVF-1152S/96 15 " 2-Way Full-Range PI-Weatherized Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
