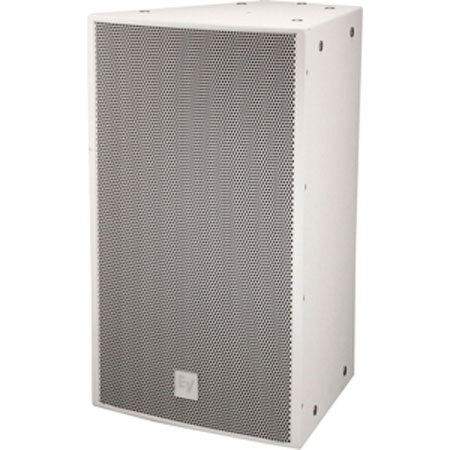

Electro-Voice EVF-1152S/96 15" 2-Way Full-Range Loudspeaker, 90x60deg., 2000W Peak Power, 8 Ohms Nominal Impedance, 101dB Sensitivity, 41Hz-18KHz, Single, White

SKU: EVF1152S96WH MFR: F.01U.272.535
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve peak power of 2000W, perfect for live sound and impactful audio experiences.
  • Enjoy wide, even coverage with its 90x60 degree dispersion for consistent sound.
  • Durable birch enclosure and weather resistance ensure lasting PA speaker performance.
  • Ideal for installations, this PA speaker delivers 101dB sensitivity for clear audio.
  • Flexible connectivity with Phoenix/EuroBlock connectors for easy PA system setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice EVF-1152S/96 Specifications

  • Frequency Response (-3 dB)

    70 Hz - 14 kHz

  • Frequency Range (-10 dB)

    41 Hz - 18 kHz

  • Rec. Hipass Frequency

    45 Hz

  • Axial Sensitivity

    101 dB (1W/1m)

  • Max. Calculated SPL

    134 dB

  • Horizontal Coverage

    90 deg. (or 60 deg. )

  • Vertical Coverage

    60 deg. (or 90 deg. )

  • Power Handling

    500W Continuous, 2000W Peak

  • LF Transducer

    SMX2151, 15" / 381mm Driver

  • HF Transducer

    ND2B, 2" / 50.8mm Diaphragm Compression Driver

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6 Ohms

  • Connectors

    (2) 4 Contact 10 AWG Phoenix/EuroBlock Style Screw Terminal

  • Enclosure Material

    13 Ply Weather Resistant Birch

  • Grille

    16 GA Galvanneal, Powdercoat, with Rotatable Logo

  • Suspension

    (22) M10 Threaded Points

  • Dimensions (H x W x D)

    30.26 x 18.5 x 18.37" / 768.6 x 469.9 x 466.6mm

  • Weight

    70.9lbs / 32.16kg

About Electro-Voice EVF-1152S/96

Are you seeking a robust and versatile audio solution for professional live performances and events Look no further than the Electro-Voice EVF-1152S/96, a 15" 2-Way Full-Range Loudspeaker that delivers exceptional sound quality and powerful performance in a sleek white finish. Designed for audio professionals who demand reliability and high-fidelity sound, this loudspeaker is an ideal choice for a wide array of sound reinforcement applications.

The EVF-1152S/96 is engineered with precision, featuring the ND2B, a high-output 2" titanium compression driver, which is paired with a Constant Directivity 90° x 60° waveguide for consistent and controlled sound dispersion. The SMX2151 15" woofer is the result of advanced FEA optimization, ensuring very low distortion, high efficiency, and crystal-clear intelligibility at high sound pressure levels (SPLs).

With a peak power handling capacity of 2000W and a nominal impedance of 8 Ohms, this loudspeaker is built to handle the most demanding audio environments. The sensitivity rating of 101dB, coupled with a comprehensive frequency range of 41Hz-18KHz, guarantees a powerful and dynamic audio experience that captures the full spectrum of sound.

The sophisticated crossover design incorporates steep 24 dB/octave slopes with tailored equalization, ensuring a smooth response across the vocal range and consistent off-axis performance. Additionally, a built-in protection circuit safeguards the loudspeaker for long-term dependability.

The EVF-1152S/96 is not only acoustically superior but also boasts a durable and weather-resistant construction. The trapezoidal enclosure is made from birch plywood and coated with EVCoat, offering maximum protection against the elements. This makes it an excellent choice for both indoor and outdoor installations.

Flexibility is at the heart of the EVF-1152S/96 design. The innovative acoustic and rigging options allow for both vertical and horizontal clustering with any combination of loudspeakers from the EVF & EVH Series. With seven horn patterns and a variety of low-frequency and subwoofer options, system customization is effortless, ensuring optimal performance for any venue or budget.

The input panel is thoughtfully designed, featuring a phoenix-style connector and the option to add a dual NL4 connector cover plate or gland nut cover plate for enhanced weather resistance. An externally accessible jumper allows for easy selection between passive or active operation. For distributed systems, an optional 70.7/100 Volt transformer kit can be mounted directly to the input panel.

In summary, the Electro-Voice EVF-1152S/96 is a high-quality, powerful, and reliable loudspeaker that offers unparalleled flexibility and performance for professional audio applications. Whether you're outfitting a concert hall, conference center, or outdoor venue, this loudspeaker is designed to exceed expectations and deliver outstanding sound reinforcement.

Electro-Voice EVF-1152S/96 Features

  • ND2B 2" diaphragm and 1.4" exit pure titanium compression driver
  • SMX2151 15" LF transducer with a fully symmetric drive
  • Fourth-order crossover network with HF protection
  • Coverage pattern 90 Degree x 60 Degree and constant directivity 12" rotatable waveguide
  • 101 dB sensitivity and 134 dB maximum SPL
  • Twenty-two M10 threaded suspension points
  • Comes with a Phoenix-style connector

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 15" full-range loudspeaker.
  • Achieve peak power of 2000W, perfect for live sound and impactful audio experiences.
  • Enjoy wide, even coverage with its 90x60 degree dispersion for consistent sound.
  • Durable birch enclosure and weather resistance ensure lasting PA speaker performance.
  • Ideal for installations, this PA speaker delivers 101dB sensitivity for clear audio.
  • Flexible connectivity with Phoenix/EuroBlock connectors for easy PA system setup.

What's in the box:

  • Electro-Voice EVF-1152S/96 15 " 2-Way Full-Range Loudspeaker
  • Electro-Voice 3 Year Limited Warranty
