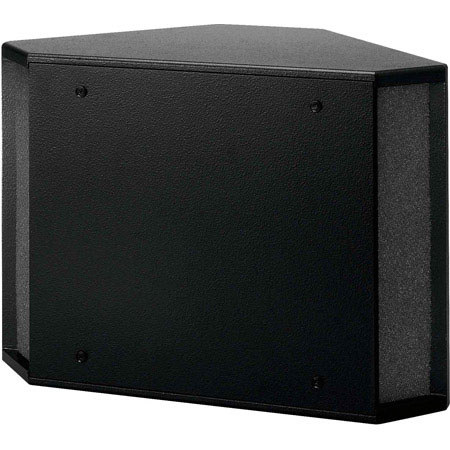

Electro-Voice EVID-12.1 12" 350 Watts Passive Installation Subwoofer, Black
See all Electro-Voice items

Electro-Voice EVID-12.1 12" 350 Watts Passive Installation Subwoofer with Dual Voice Coils, Black

SKU: EVID121

This item is no longer available.

Recommended Alternatives

Electro-Voice EKX-15S: Picture 1 regular
Electro-Voice EKX-15S 15" Passive Subwoofer, Single
$1,701.00$949.00
Electro-Voice EKX-18S: Picture 1 regular
Electro-Voice EKX-18S 18" Passive Subwoofer, Single
$2,060.00$1,149.00
Electro-Voice ELX118: Picture 1 regular
Electro-Voice ELX118 18" Live X Passive Subwoofer
$1,290.00
Electro-Voice ELX200-12S: Picture 1 regular
Electro-Voice ELX200-12S 12" 1600W Passive Subwoofer, Black
$1,217.00$699.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice EVID-12.1 Specifications

  • Chassis Size

    304.8 mm (12")

  • Input Connections

    Spring Terminal

  • Speaker Type

    Subs

  • Frequency Response (-10 dB)

    40 - 140 Hz

  • Internal Crossover

    Yes

  • Sensitivity 1 W/1 m

    100 dB 1/4 space

  • Max. SPL/1m (calc)

    128 dB 1/4 space

  • System Power Handling

    175//700 Watts per coil (Continuous/Program/Peak)

  • LF Transducer

    12-inch

  • LF Power Handling

    12-inch Watts

  • Nominal Impedance (Passive)

    8 Ohm

  • Minimum Impedance

    6 Ohm

  • Flying

    Yes

  • Outdoor

    No

  • Dimensions

    412 x 584 x 305 mm / 16.22 x 22.99 x 12.00"

  • Weight

    18.1 kg / 39.90 lbs

About Electro-Voice EVID-12.1

The Electro-Voice EVID 12.1 is a passive, surface-mount installation subwoofer (Black) featuring a 12" driver, dual voice coils that process both channels of stereo low end information, a 175-Watt per coil power reservoir and a 160Hz passive crossover.

In addition, the EVID 12.1 can distribute audio for up to four separate satellites, via the four crossed-over audio outputs on the back panel and may be wall or ceiling mounted with the supplied custom hardware. This provides extended bass performance for installation applications in bars, restaurants and meeting or event facilities, as a companion to the Electro-Voice EVID series of loudspeakers.

Electro-Voice EVID-12.1 Features

  • Supplemental bass for indoor systems
  • Ideal for sports bars, dance floors, retail and health clubs
  • High-excursion woofer with dual voice coil to accommodate L/R channels
  • High sensitivity, high power-handling
  • Crossed-over pass-thru for up to four satellite speakers
  • Trapezoidal shape for flexible placement
  • Steel-reinforced cabinet with mounting hardware included

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supplemental bass for indoor systems
  • Ideal for sports bars, dance floors, retail and health clubs
  • High-excursion woofer with dual voice coil to accommodate L/R channels
  • High sensitivity, high power-handling
  • Crossed-over pass-thru for up to four satellite speakers
  • Trapezoidal shape for flexible placement

What's in the box:

  • Electro-Voice EVID-12.1 12 " 350 Watts Passive Installation Subwoofer
  • Wall/Corner Mounting Bracket
  • 2 x Speaker Mounting Clips
  • 4 x Rubber Mounting Feet
  • Eyebolt
  • Owner's Manual
  • Electro-Voice Warranty
