Electro-Voice RE2-E Wireless Bodypack Microphone System, G Band: 614-642MHz
See all Electro-Voice items

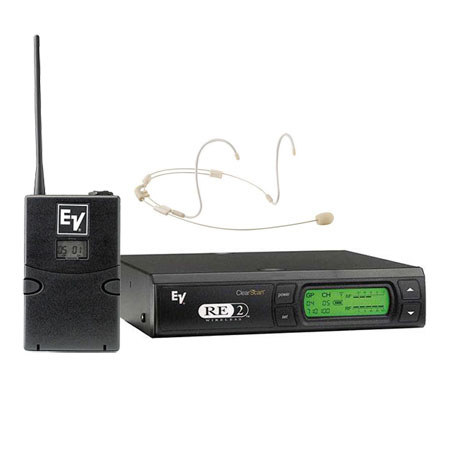

Electro-Voice RE2-E Wireless Bodypack Microphone System, Includes BPU-2 Transmitter, RE-2 Receiver, Light Beige RE97 Minimic Headworn, Case, G Band: 614-642MHz

SKU: EVRE2EBEIGCG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Electro-Voice RE2-E Specifications

  • Receiver: Receiver Type

    Synthesized PLL

  • Receiver: Frequency Range (RF)

    G Band: 614-642MHz

  • Receiver: Number of Channels

    1112 possible channels
    Programmable in 25 kHz steps

  • Receiver: Modulation

    +/- 40 kHz

  • Receiver: Diversity

    Digital Secure-Phase True Diversity

  • Receiver: RF Sensitivity

    < 1.0 mV for 12 dB SINAD

  • Receiver: Image Rejection

    > 60 dB

  • Receiver: Squelch

    Tone Code plus Amplitude

  • Receiver: Ultimate Quieting

    > 100 dB

  • Receiver: FCC Certification

    Approved under Part 15

  • Receiver: Power Requirements

    12 V AC/DC 300 mA

  • Receiver: Antennas

    Detachable 1/4 wave

  • Audio Parameters: Frequency Response

    50 - 15 kHz +/- 2 dB

  • Audio Parameters: Balanced Output

    Mic Position: -10 dBV
    Line Position: Adjustable 10 mV-2V RMS (max at 40 kHz deviation)

  • Audio Parameters: Unbalanced Output

    Adjustable 10 mV-1V RMS

  • Audio Parameters: Distortion

    <1.0%, 0.5% typical (ref 1 kHz, 40 kHz deviat)

  • Audio Parameters: Signal-to-Noise Ratio

    >100 dB A Weighted

  • Audio Parameters: Dynamic Range

    >100 dB

  • Transmitter: Radiated Output

    30 mW typical

  • Transmitter: TA4 Connector Wiring

    Pin 1: Ground; Pin 2 Mic Input; Pin 3: +5V bias; Pin 4: +5V bias through a 3k Ohms resistor

  • Transmitter: Audio Gain Adjustment

    40 dB (handheld 26 dB)

  • Transmitter: Power Requirements

    9 Volt Alkaline Battery

  • Transmitter: Battery Life (Typical)

    > 8 hours with 9-Volt Alkaline Typical

  • Transmitter: Bodypack Antenna

    Flexible external 1/4 wave

  • Microphone: Type

    Headworn

  • Dimensions

    Receiver (H x W x D): 1.72 x 7.5 x 5.9" / 4.36 x 19.05 x 14.98cm
    Bodypack Transmitter (H x W x D): 3.8 x 2.6 x 0.92" / 9.65 x 6.60 x 2.33cm

About Electro-Voice RE2-E

The Electro-Voice RE2-E Wireless Bodypack Microphone System (G Band: 614-642MHz) brings clean channels, clear sound and clever wireless to your performance. Simply switch the unit to the unique "guitar" setting to turn the receiver/ transmitter into an optimized guitar wireless system.

The BPU-2 Bodypack Transmitter is made of high-impact ABS plastic, the BPU-2 is a compact bodypack transmitter for the RE-2 wireless system. The TA4 microphone connector is compatible with any EV lavalier or headworn mic.

The RE-2 Receiver is a completely programmable, frequency-agile wireless system with one-touch Auto-ClearScan, Posi-phase diversity and advanced audio circuits for the best possible sound. Operating over 28MHz (six TV channels), it includes XLR mic/line level output, backlit LCD display and a unique mode that is optimized for guitar.

Electro-Voice RE2-E Features

  • UHF Receiver: One touch Auto-ClearScan
  • UHF Receiver: Programmable in 25kHz steps across 28 MHz operating bandwidth
  • UHF Receiver: Backlit LCD displays the Group, Channel, Frequency, transmitter battery level, diversity operation and RF and Audio signal level meters
  • UHF Receiver: Balanced XLR audio output for Microphone or Line level signals and a 1/4" line level jack
  • UHF Receiver: Fourth generation Secure-phase diversity and advanced audio circuits
  • UHF Receiver: Unique "Guitar" setting
  • UHF Receiver: Detachable 1/4 wave antennas
  • UHF Transmitter: Unique "smart" battery
  • UHF Transmitter: LCD Displays Group and Channel, Frequency or Battery Level
  • UHF Transmitter: Low battery LED
  • UHF Transmitter: One On/Off button that also acts as a mute
  • UHF Transmitter: On/Off button can be disabled
  • UHF Bodypack: Cell phone style beltclip

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • One touch Auto-ClearScan
  • Programmable in 25kHz steps across 28 MHz bandwidth
  • Multi-feature Backlit LCD display
  • Balanced XLR audio output for mic, 1/4" line level jack
  • 4G Secure-phase diversity & advanced audio circuits
  • Unique "Guitar" setting

What's in the box:

  • Electro-Voice BPU-2 Bodypack Transmitter
  • RE-2 Diversity Receiver
  • RE97 Minimic Headworn
  • Hard Shell Road Case
  • Electro-Voice 3 Year Warranty
