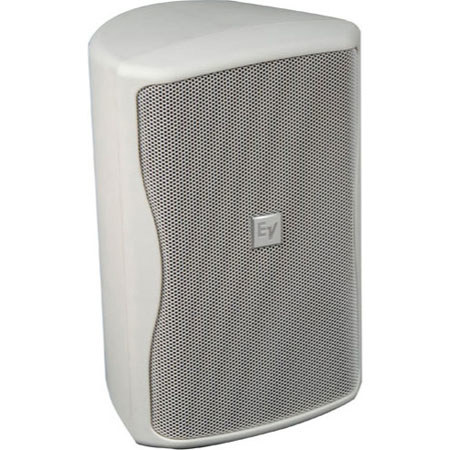

Electro-Voice ZX1i-90 2-Way 8" 200W In/Outdoor Weatherized Installation Speaker, 90x50 deg., 60Hz-20kHz, 4-pin Phoenix Connector, DH2005 1" Driver, Single, White

SKU: EVZX1I90W MFR: F.01U.265.576
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This 200W passive PA speaker delivers powerful, clear audio for any venue.
  • Weatherized design ensures durability for both indoor and outdoor installations.
  • Achieve optimal coverage with its wide 90x50 degree dispersion pattern.
  • QuickSAM mount allows for easy and secure installation of your PA speakers.
  • Enjoy versatile connectivity with the 4-pin Phoenix connector for PA systems.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice ZX1i-90 Specifications

  • Frequency Response (-3dB)

    60 Hz - 20 kHz

  • Frequency Response (-10dB)

    48 Hz - 20 kHz

  • Recommended High-Pass Frequency

    40Hz

  • Axial Sensitivity

    94 dB (1W/1m)

  • Maximum Calculated SPL

    123 dB

  • Horizontal Coverage

    90 deg.

  • Vertical Coverage

    50 deg.

  • Enclosure Rotation

    +/-35 deg.

  • Enclosure Sweep

    +/-45 deg.

  • Rated System Power

    200W continuous
    400W Program
    800W Peak

  • LF Transducer

    EV8L, 8 in (203mm) Driver

  • HF Transducer

    DH2005, 1 in. (25.4mm) Exit Compression Driver

  • Crossover Frequency

    1.7kHz

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohm

  • Overload Protection

    Full protection

  • Connector

    4-pin Phoenix

  • Enclosure Material

    High Impact Polystyrene

  • Suspension

    Integrated QuickSAM Heavy duty strong arm mountong bracket

  • Grill

    Polyester Powder Coated, 18GA Galvanized Steel

  • Dimensions (H x W x D)

    17.75 x 11.12 x 10.35" / 451 x 282.44 x 263mm

  • Weight

    Without Transformer: 8.4kg / 18.51lbs
    With Transformer: 10.4kg / 22.92lbs

  • UPC Code

    192223055247

About Electro-Voice ZX1i-90

Why settle for less when you can experience superior audio performance with the Electro-Voice ZX1i-90 2-Way 200W 8" White In/Outdoor Installation Speaker This compact, easy-to-install sound reinforcement package sets a new standard in audio versatility and uncompromised sound quality.

Crafted with a high-tech, injection-molded high-impact polypropylene enclosure, the ZX1i-90 is not just stylish but also extremely durable. The enclosure's geometry has been meticulously engineered to offer maximum rigidity and superior acoustic performance.

The ZX1i-90 stands out with its velocity compensated port design, a feature that overcomes the limitations of many small cabinet loudspeakers. This design enables exceptional low-frequency response without vent noise, ensuring a smooth and wide frequency response.

Installation is a breeze with the included QuickSAM mounting system. This unique, integrated mounting bracket is virtually foolproof, allowing for easy snapping of the speaker onto the bracket and tightening it to the desired position.

When in transformer mode, the ZX1i-90 uses a special circuit that re-configures itself to a current actuated Hi-Pass filter at the transformer primary. This feature gently rolls off the lowest frequencies to maintain a safe load on the amplifier without affecting the higher (vocal) frequencies, ensuring uninterrupted audio performance.

The ZX1i-90's molded polymer enclosure is inherently water-resistant, making it an ideal choice for outdoor installations. The multilayer grille with hydrophobic cloth and weatherized components further enhance its ability to perform under various environmental conditions.

The speaker features a long excursion, high output 8" woofer with a weatherized treated cone, delivering smooth low-frequency performance with exceptional reliability. It integrates seamlessly with the DH2005, a 1.25" voice coil true compression driver, for maximum output with extended frequency response.

The ZX1i-90 also includes full-bandwidth overload protection for reliable, long-term operation without audible effect. The 90deg. X 50deg. horn provides coverage for longer throw and cluster applications. An added benefit is the rotatable horn design, allowing the ZX1i-90 cabinet to be oriented either horizontally or vertically for ultimate design flexibility. Experience the difference with the Electro-Voice ZX1i-90 2-Way 200W 8" White In/Outdoor Installation Speaker.

Electro-Voice ZX1i-90 Features

  • 8" Woofer, 1.25" Titanium HF Driver
  • 60 Hz to 20 kHz Frequency Response
  • 200W Continuous Power Handling
  • Indoor/Outdoor Sound Reinforcement

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior sound quality with this Electro-Voice 8" PA speaker.
  • This 200W passive PA speaker delivers powerful, clear audio for any venue.
  • Weatherized design ensures durability for both indoor and outdoor installations.
  • Achieve optimal coverage with its wide 90x50 degree dispersion pattern.
  • QuickSAM mount allows for easy and secure installation of your PA speakers.
  • Enjoy versatile connectivity with the 4-pin Phoenix connector for PA systems.

What's in the box:

  • Electro-Voice ZX1i-90 2-Way 200W 8 " In/Outdoor Installation Speaker
  • QuickSAM Mount
  • Electro-Voice 5 Year Limited Warranty
