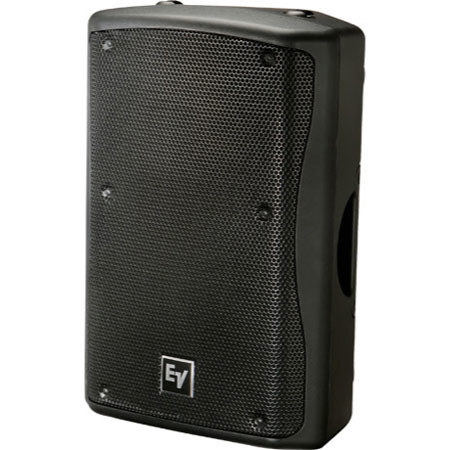

Electro-Voice Zx3-60PI 600 Watts 12" 2-Way Passive Loudspeaker, 60x60deg., 58Hz-15kHz, 8 Ohms Nominal Impedance, 131 dB, 2x Neutrik Speakon, Single, Black

SKU: EVZX360PIB MFR: F.01U.265.603
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 600W Electro-Voice PA speaker for clear audio.
  • Get wide, even coverage thanks to the 60x60 degree dispersion of this PA loudspeaker.
  • Durable polypropylene build ensures this passive PA speaker withstands demanding gigs.
  • This 12" PA speaker delivers exceptional clarity for vocals and instruments, ideal for live sound.
  • Flexible mounting options make this PA speaker perfect for installs or portable setups.
  • Enjoy high-quality audio with a wide frequency response (58 Hz - 15 kHz) from this PA speaker.
See More Product Details
Special Order?Estimated to Ship: 08/22/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOHN C : Great sound at any cost, yet space limited.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Electro-Voice Zx3-60PI Specifications

  • Frequency Response (-3 dB)

    58 Hz - 15 kHz

  • Frequency Response (-10 dB)

    48 Hz - 20 kHz

  • Recommended Hi-pass Frequency

    50 Hz

  • Max. Calculated SPL

    131 dB

  • Horizontal Coverage

    60 deg.

  • Vertical Coverage

    60 deg.

  • Power Handling (Passive)

    600W Continuous, 2400W Peak

  • LF Power Handling (Biamp)

    500W Continuous, 2000W Peak

  • HF Power Handling (Biamp)

    40W Continuous, 160W Peak

  • LF Transducer

    DVX3121, 12" (305mm) Driver

  • HF Transducer

    ND2, 1" (25.4mm) exit Neodymium Compression Driver

  • Crossover Frequency

    2 kHz

  • Nominal Impedance

    8 Ohms

  • Minimum Impedance

    6.2 Ohms

  • Connectors

    (2) Neutrik Speakon NL4's

  • Enclosure Material

    Polypropylene Structural Foam

  • Suspension

    Enclosure has locations for 4 Single-Stud Attachment Plates and 10 Forged Steel Eyebolts - 2 on Top, 2 on Bottom, 2 on Side, and 1 on Rear of Enclosure

  • Grille

    Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo

  • Environmental

    IEC 529 IP24 / IP44

  • Dimensions (H x W x D)

    613 x 397 x 362mm (24.13 x 15.62 x 14.25")

  • Weight

    19.8 kg (43.65 lbs)

  • UPC Code

    800549682732

About Electro-Voice Zx3-60PI

Explore the unparalleled audio performance and versatility of the Electro-Voice ZX3-60PI 600 Watts 12" 2-Way Passive Black Loudspeaker. This compact, easy-to-use loudspeaker sets a new standard in audio technology, delivering high-quality sound in a durable package.

At the core of the ZX3-60PI are its state-of-the-art transducers. The DVX3121, a high-performance low-frequency transducer, utilizes advanced computer-aided design techniques. This results in forced air, directional voice coil cooling for enhanced power and efficiency. The suspension and magnetic structure have been optimized through finite element analysis, ensuring long, linear travel for minimal distortion and extended low-frequency response. With forged magnetic components and special materials, this transducer offers a 500W power rating in a lightweight design.

Complementing the DVX3121 is the ND2, a 2" voice coil compression driver. This driver leverages a neodymium motor structure, achieving maximum output while minimizing size and weight. Its precision phasing plug and titanium diaphragm enhance high-frequency performance, while the integral heatsink ensures cooling for high power output.

The ZX3-60PI's enclosure is a marvel of modern design. Crafted from injection-molded high-impact polypropylene structural foam, it offers incredible durability. The enclosure's geometry has been meticulously designed to provide maximum rigidity and bass response.

This loudspeaker is not only perfect for delivering high-quality sound but also doubles as an effective stage monitor, offering two angles (45deg. or 55deg.) without the need for additional accessories. For rigging purposes, the ZX3-60PI is equipped with two anchor plates for single stud-fittings, and two additional anchor plate attachment points on the bottom. For permanent suspension or bracket attachment, there are two M8 inserts on the top and bottom, two under the handle, and one on the back of the enclosure, totaling seven attachment points.

In summary, the Electro-Voice ZX3-60PI 600 Watts 12" 2-Way Passive Black Loudspeaker is a compact, versatile, and powerful audio solution, designed to deliver superior sound quality in any setting.

Electro-Voice Zx3-60PI Features

  • DVX3121 12" LF Transducer with Forced Air Cooling
  • ND2 2" Voice Coil, 1" Exit Neodymium Compression Driver
  • 60deg. x 60deg. Coverage Pattern
  • 600W Continuous (2400W Peak) Power Handling
  • High Sensitivity, 131 dB Maximum SPL
  • Adjustable Monitor Angle (45deg. or 55deg.)
  • 2 Anchor Plates for Single Stud Fittings and 7 Integral Suspension Points
  • All Weather IEC 529, IP44, & MIL810 Environmental Specs

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience powerful sound with this 600W Electro-Voice PA speaker for clear audio.
  • Get wide, even coverage thanks to the 60x60 degree dispersion of this PA loudspeaker.
  • Durable polypropylene build ensures this passive PA speaker withstands demanding gigs.
  • This 12" PA speaker delivers exceptional clarity for vocals and instruments, ideal for live sound.
  • Flexible mounting options make this PA speaker perfect for installs or portable setups.
  • Enjoy high-quality audio with a wide frequency response (58 Hz - 15 kHz) from this PA speaker.

What's in the box:

  • Electro-Voice Zx3-60PI 600 Watts 12 " 2-Way Passive Loudspeaker
  • 3x Anchor Plates
  • 10x M8 Metric Suspension Insert Points
  • Electro-Voice 5 Year Limited Warranty
