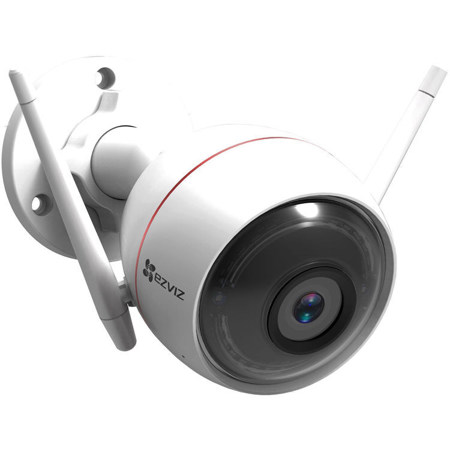

EZVIZ ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera with 2.8mm Fixed Lens, 30 fps, Up to 100' of Night Vision, H.264

SKU: EZ3101B2G16

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

EZVIZ ezGuard Plus Specifications

Camera
  • Image Sensor

    1/2.7" progressive scan CMOS

  • Minimum Illumination

    Color: 0.02 lux at f/2.0 with AGC on
    B&W: 0 lux with IR

  • Shutter Speed

    Self-adaptive shutter

  • Lens

    2.8mm, f/2.2

  • Lens Mount

    M12

  • Field of View

    Horizontal: 103 deg.
    Diagonal: 118 deg.

  • Day & Night

    IR cut filter

  • IR Range

    Max 100' (30.48m)

  • Digital Noise Reduction (DNR)

    3D-DNR

  • Wide Dynamic Range

    Digital WDR

Compression

Jump to...
  • Video Compression

    H.264

  • H.264 Profile

    Main profile

  • Video Bit Rate

    HD, balance, and fluency
    Adaptive bit rate

  • Max Resolution

    1920 x 1080, supports dual stream

  • Frame Rate

    60Hz at 30 fps, 50Hz at 25 fps, adaptive frame rate of network transmission

  • Image Settings

    Brightness, contrast, and saturation are configurable via EZVIZ Studio

  • BLC

    Supported

  • Two-Way Audio

    Yes

  • Audio Range

    Up to 15' (4.57m)

Network

Jump to...
  • Intelligent Motion Detection

    Yes

  • Configuration

    One-Key Configuration: Smart config / Wi-Fi one-push configuration

  • Interface Protocol

    EZVIZ Cloud Proprietary Protocol

  • Functions

    Flicker, filter, dual stream, heartbeat, mirror image, password protection, watermark

Interface

Jump to...
  • Storage

    Supports microSD cards up to 128GB

  • Ethernet

    1 x RJ45 Ethernet port, adaptive rate of 10/100M

  • Standard

    IEEE 802.11b/g/n

  • Frequency Range

    2.4-2.4835GHz

  • Channel Bandwidth

    Supports 20MHz

  • Security

    64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

  • Transmission Rate

    802.11b: 11 Mb/s
    802.11g: 54 Mb/s
    802.11n: 135 Mb/s

General

Jump to...
  • Operating Conditions

    -22 to 140 deg. F (-30 to 60 deg. C)
    Humidity 95% or less, non-condensing

  • Power Supply

    12 VDC +/-10%

  • Power Consumption

    6W max

  • IP Rating

    IP66

  • Dimensions

    5.92 x 3.78 x 2.82" (150.37 x 96.01 x 71.63mm)

  • Weight

    0.72 lbs (0.33kg)

  • UPC Code

    842571110418

About EZVIZ ezGuard Plus

Detect
ezGuard stands ready 24/7 watching over the important areas of your home. Weatherproof Casing, Dual Wi-Fi Antennas and Hard Wired Power Connection provide a dependable first line of defense, ready to notify you of any activity within view.

Notify
Once ezGuard detects activity, recording is automatically started and notification is sent directly to your mobile device. From the EZVIZ APP (Mobile) you can choose to view the video feed live or watch a short recording of the event.

Defend
With Two-Way Audio and a Remote Activated Alarm System, not only will you be recording the event, you will also have the tools available to interact with what's on the other side. Activate a loud siren and strobe light to scare off intruders or use the Two-Way Audio to let them know exactly what's on your mind.

Active Defense System & Two Way Talk
What good is monitoring your home if you can't defend it? Take your security system to the next level with a remote activated alarm system and give your self the tools to fight back against unwanted visitors. Combined with Two-Way Audio and Instant Activity Alerts, it will be like you are always home and ready to protect the things most precious to you. Notifications are sent directly to your mobile device and alarm functions are enabled right on screen.

EZVIZ ezGuard Plus Features

  • All- In-One Security - Full HD 1080p Video, Alarm System, Two-Way Audio, and Motion Detection all packed into a weatherproof and modern design. Everything controlled through a single APP
  • Active Defense - Remote Activated Alarm System includes loud siren and bright LED strobe to ward off unwanted visitors. Don't just monitor your home, give yourself the tools to defend it
  • Two-Way-Audio - Microphone range up to 15ft and waterproof high decibel speakers allow you to talk to whoever is on the other end. Or activate the alarm if you are unable to speak
  • Built to Last - Weatherproof IP66 housing allows functionality in any natural environment. Hard wired power and on-board recording provide additional safeguards in case internet becomes unavailable
  • FULL HD 1080P HDR - ezGuard is also enhanced with HDR technology to provide you with the clearest video feed in any lighting condition, day or night

What's in the box:

  • EZVIZ ezGuard Plus 1080p Outdoor Wi-Fi Bullet Camera
  • Power Supply
  • Mounting Accessories
  • Mounting Guide
  • Quick Start Guide
  • EZVIZ 1 Year Limited Warranty
