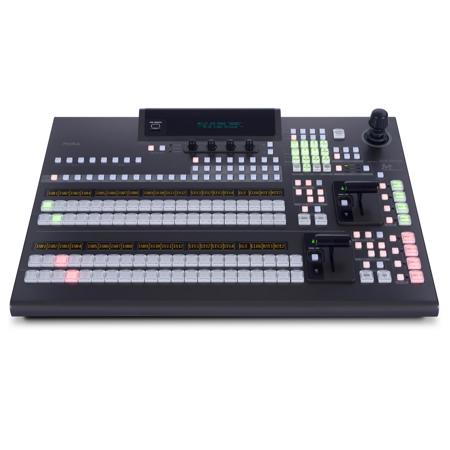

For.A HVS-390HS HD/SD Video Switcher with HVS-391OU 1 M/E 20-Button Control Panel

SKU: FAHVS390HS1M

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

For.A HVS-390HS HD/SD Video Switcher with HVS-391OU 1M/E 20Button Control Panel Specifications

  • Number of M/Es

    1

  • Control Panel

    HVS-391OU: 1 M/E 20-button rack size model

  • Video Formats

    1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)

  • Video Input

    HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 16x 75Ohms BNC, Using HVS-30HSDI/HSDI-A Input Card (Sold Separately)
    HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 4x 75Ohms BNC, Using HVS-30HSAI Input Card (Sold Separately)
    HD analog component, SD analog component, Analog composite, Using HVS-30PCIN Input Card (Sold Separately)
    DVI-D: XGA to WUXGA (1080i), XGA to WXGA (720p), VGA to XGA (SD) (HDCP incompatible)
    RGB: XGA to WUXGA (1080i), XGA to WXGA (720p), VGA to XGA (SD)

  • Number of Inputs

    Standard: 16 (SDI)
    Maximum: 24 (with 2 x HSDI or 2 x HSDI-A)

  • Video Output

    HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 8x 75Ohms BNC (2x PGM, 6x AUX), 1x HDMI (AUX) (HDCP, AUDIO incompatible), Using HVS-30HSDO Output Card (sold separately)
    HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 3x 75Ohms BNC, Using HVS-30HSAO Output Card (sold separately)
    HD analog component, SD analog component, analog composite, Using HVS-30PCO Output Card (sold separately)

  • Video Output (Cont.)

    DVI-D: SXGA to WUXGA/HDTV (1080i), SXGA/WXGA (720p), SVGA (SD) (HDCP incompatible)
    RGB: SXGA to WUXGA (1080i), SXGA/WXGA (720p), SVGA (SD), YPbPr: HDTV(1080i)

  • Number of Outputs

    Standard: 9 (8x SDI, 1x HDMI)
    Maximum: 13 (with 2 output cards)

  • AUX Outputs

    Standard: 6
    Maximum: 8 (Crossfade switching available on each AUX output)

  • Signal Processing

    4:2:2 Digital component

  • Quantization

    HD/SD-SDI: 10-bit

  • Genlock Input

    BB: NTSC: 0.429 Vpp/PAL: 0.45 Vpp or Tri-level Sync: 0.6 Vpp, 1x 75Ohms BNC, loop-through (terminate with 75Ohms terminator, if unused)

  • System Phase Adjust

    Horizontal: -1/2H to +1/2H

  • Genlock Output

    BB: NTSC: 0.429 Vpp/PAL: 0.45 Vpp or Tri-level Sync: 0.6 Vpp, 1x 75Ohms BNC

  • I/O Delay

    HD: 1 H, SD: 1.7 H (minimum delay), 1 to 2 frames + minimum delay (when FS or up-resize engine used), 2 to 3 frames + minimum delay (when FS or up-resize engine plus DVE used), 3 to 4 frames + minimum delay (when FS or up-resize engine plus output resize engine and DVE used)

  • Interfaces

    Editor: 1 x 9-pin D-sub (female), (inch screw)
    RS-422: 6 x 9-pin D-sub (female), (inch screw)
    GPI In: 1 x 15-pin D-sub (female), (inch screw) 10 inputs
    Tally Out: 1 x 25-pin D-sub (female), (inch screw) 20 outputs
    ARCNET: 1 x 75Ohms BNC, loop-through (Terminate with 75 O terminator if unused)
    Ethernet: 100Base-TX/1000Base-T: 1 x RJ-45

  • Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Humidity

    30 to 90% (no condensation)

  • Power

    100 to 240 VAC +/-10%, 50/60 Hz

  • Consumables

    Cooling Fan: Replace every 4 years
    Power Unit: Replace every 5 years
    Battery: Replace every 5 years
    (if used 24 hours a day at room temperature)

  • Consumption

    HVS-390HS: Max. 510W
    HVS-391OU: 32W

  • Dimensions (W x D x H)

    HVS-390HS: 430 x 450 x 132mm / 16.93 x 17.72 x 5.20"
    HVS-391OU: 576 x 279 x 131mm / 22.68 x 10.98 x 5.16"

  • Weight

    HVS-390HS: 17kg / 37.48lbs
    HVS-391OU: 5.5kg / 12.13lbs

About For.A HVS-390HS HD/SD Video Switcher with HVS-391OU 1M/E 20Button Control Panel

With the HVS-390HS HD/SD Video Switcher and HVS-391OU 1 M/E 20-Button Control Panel, you gain access to a high-performance video switching solution that offers unparalleled broadcast reliability and versatility. This product, part of the renowned HANABI series, comes packed with a comprehensive range of standard features, including mixed HD/SD input, frame synchronizer, 2.5D and 3D wipe effects, DVEs, chroma key-equipped keyer, DSKs, still stores, picture-in-picture, and multi-viewers.

The HVS-390HS is equipped with 4x Keyers on each M/E, including 2 high-quality Chroma keyers. These can be used as keyers and/or Picture in Picture. You can freely assign up to 4x keyers to an AUX output or M/E output. All keyers include a DVE with resize and perspective/tilt capabilities (2.5D), and 2x 3D DVEs on each M/E for background and keyer transitions.

The HVS-390HS also features a CG Wipe engine on each M/E, offering animated wipe/mix transitions. The 'Next transition' function includes direction for all keyers and background on each M/E, as well as FOR-A's On-Air programmable transition section.

The included Web Browser GUI provides total control and setup from a connected device such as a PC, Mac, or Tablet. FTP access for stills and clip sequences, plus built-in USB for stills, further enhances the versatility of this video switcher.

The HVS-390HS also offers industry-leading color correction with 2 per M/E, assignable for inputs or entire bus. It has a 4 clip store capability with up to 60 frames in each clip store. The option to save stills and clips to internal memory (HVS-39MB) is also available.

The HVS-390HS is designed with a redundant PSU for both Main and Control Panel, which is hot-swappable from the front of the MU. It also features a safe-area generator and audio monitoring that are selectable and adjustable per window on internal multi-viewer layouts.

The HVS-390HS is a versatile and reliable main unit that can be a perfect solution in all types of locations, including live events, sports, news studios, OB vans, editorial offices, and presentation venues. It is the ideal tool for shaping the imaginative ideas of video creators.

With the HVS-390HS, you can enjoy advanced AUX technology, a dozen DVE channels, 2 keyers and 2 DSKs, animation playout (CG Wipe) with Picture of CG Wipe, operation via Web browser, powerful outputs, dual multi-viewer, facility integration, and much more.

Whether you're working in a broadcasting environment, house of worship, live staging/event production, or mobile and up-link production trucks, the HVS-390HS HD/SD Video Switcher with HVS-391OU 1 M/E 20-Button Control Panel is a reliable and versatile solution that meets your video switching needs.

For.A HVS-390HS HD/SD Video Switcher with HVS-391OU 1M/E 20Button Control Panel Features

  • High-performance HVS-390HS HD/SD Video Switcher with HVS-391OU 1 M/E 20-Button Control Panel
  • Comprehensive range of standard features including mixed HD/SD input, frame synchronizer, and 2.5D and 3D wipe effects
  • Advanced functionality with 4x Keyers on each M/E, including 2 high-quality Chroma keyers
  • Enhanced control and setup via included Web Browser GUI from a connected device
  • Industry-leading color correction and ability to save stills and clips to internal memory
  • Versatile and reliable main unit, ideal for various locations including live events, sports, news studios, and OB vans

Key Features

  • Achieve seamless live video switching with the For.A HVS-390HS video switcher.
  • Enjoy reliable performance with this HD/SD video switcher, perfect for broadcast environments.
  • Create professional productions using the intuitive HVS-391OU 1 M/E 20-button control panel.
  • Experience high resolution video output for crystal-clear visuals in every broadcast.
  • Easily manage multiple video sources with 16 standard inputs, expandable up to 24.
  • Ensure good connectivity with versatile I/O options for a streamlined workflow.

What's in the box:

  • For.A HVS-390HS HD/SD Video Switcher with HVS-391OU 1 M/E 20-Button Control Panel
  • Switcher AC Cord
  • Switcher Rack Mount Brackets
  • Control Panel AC Cord
  • Control Panel BNC Cable (33')
  • Operation Manual
  • For.A 1 Year Limited Warranty
