For.A HVS-390HS HD/SD Video Switcher with HVS-392WOU 2 M/E 28-Button Control Panel

The HVS-390HS is the video switcher offering unparalleled broadcast reliability, performance and versatility with enhanced functionality and operability. Like the other HANABI series, it offers a full range of functionality as standard functions, including mixed HD/SD input, frame synchronizer, 2.5D and 3D wipe effects, DVEs, keyer with chroma key, DSKs, still stores, picture in picture and multi-viewers.

• 4x Keyers on each M/E, including 2 high quality Chroma keyers, can be used as keyers and/or Picture in Picture
• Freely assign up to 4x keyers to an AUX output or M/E output (2 from M/E 1, 2 from M/E 2)
• All keyers include DVE with resize and perspective/tilt, etc. (2.5D)
• 2x 3D DVEs on each M/E for background and keyer transitions
• CG Wipe engine on each M/E offering animated wipe/mix transitions
• Next transition' including direction for all keyers and background on each M/E, as well as FOR-A's On-Air programmable transition section
• Included Web Browser GUI gives total control and set up from a connected device such as PC, Mac or Tablet, etc.
• FTP access for stills and clip sequences, plus built-in USB for stills
• Increase the number of stills by using spare inputs as extra still stores
• The Web Browser provides an easy way to edit: Macros, Event Memories and key-frame sequences
• Industry leading color correction with 2 per M/E, assignable for inputs or entire bus
• 4 clip store capability with up to 60 frames in each clip store (HVS-39MEM option provides 120 frames)
• Option to save stills and clips to internal memory (HVS-39MB)
• Redundant PSU for both Main and Control Panel available, hot-swappable from the front of the MU
• Safe-area generator and audio monitoring are selectable and adjustable per window on internal multi-viewer layouts
• 2x Multi-viewer outputs in HD Mode, each with selectable layouts
• Standard interface for multiple external device control, including audio mixers, routers and VTR/VDCP units via RS-422 and VDCP
• Individually switchable frame synchronizer on each input
• 4x Upconverters are standard-expandable to 12
• 16 inputs are standard, expandable to 24 with optional HD/SD-SDI, DVI, VGA, composite or component cards
• 8 outputs plus 1 x HDMI output are standard, expandable to 13 with optional HD/SD-SDI, DVI, VGA, composite or component cards
• Depending on configuration and usage, HVS-390HS has a minimum delay of 1 line in HD
• Up to 100 m BNC cable can be used to connect Mainframe and control panel
• Dedicated Black Burst or Tri-Level sync output

In addition to them, the HVS-390HS offering an extreme choice in control surfaces; 6 control panels and 6AUX control panels are available. And more, featuring advanced AUX technology, the HVS-390HS has the capability to be a virtual 6 M/E unit. The unit can be perfect solution in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.

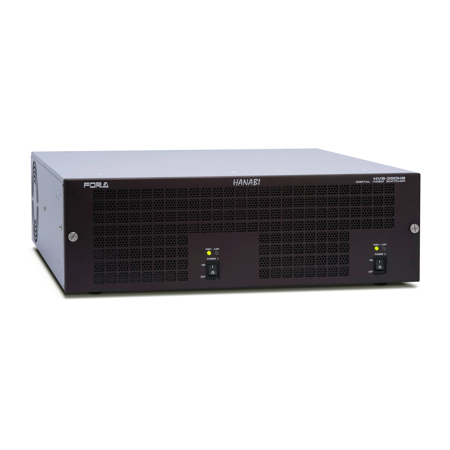

HVS-390HS Versatile and Reliable Main Unit
A 3U main unit is available with one or two redundant power supplies. It is the same main unit for 1M/E or 2(2.5)M/E systems, thus providing easy future to upgrade.

Advanced AUX- Virtual 6M/E
While the HVS-390HS has a full powered primary Mix Effects (M/E), FOR-A offers the first switcher system to use Advanced AUX technology. Operators and technical staff will appreciate the capabilities of a virtual 6M/E switcher. With Advanced AUX technology any AUX bus can be used like never before... and AUX output can cut, mix, wipe, key and move graphics with a DVE.

A Dozen DVE Channels
The HVS-390HS has 8 channels of 2.5D and 4 channels of 3D DVE. Twelve channels of DVE means you don't need to float DVEs as you should have enough for any production need. All twelve channels are included, no extra charge. Some other suppliers, ask you to pay for enough DVEs or only provide 4.

2 Keyers and 2 DSKs
Further proof of the power of these new small mixers is that they come as standard with 2 keyers, 2 DSKs and 4 powerful 2.5D DVE engines. An advanced, high quality Chroma keyer can be assigned to any one of the two M/E Keyers or two Downstream Keyers. The 4 powerful DVE engines, can be assigned to any keyer or used for transitions etc and with their standard 2.5D ability, allows flexible creativity for the operator to enhance productions.

Animation Playout (CG Wipe) with Picture of CG Wipe
The HVS-390HS can store and playout from an internal 4 channel media player. Why not free up your external clip player(s) and let the 'no extra charge' internal media player replay those animated bugs or integrate your animations into transition opens and closes. Your wipe transitions will really get noticed as the animation becomes part of your A/B wipe.

Operation via Web browser
The ability to set up, adjust and operate the HVS-390HS via a Web browser, from a PC, Mac or tablet device, over Ethernet, is included at 'no extra charge'. This also allows easy recalling and editing of macros, key-frame sequences and event memories. The Web browser control also displays thumbnails of stills loaded to still stores. This easy to use software control can be used as at secondary operational positions or as an AUX control for TD or director.

Powerful Outputs! - All at the Same Time

2.5 M/E Switcher
With Advanced AUX plus technology, For.A provide a virtual 6M/E production switcher. You can even also use AUX bus 7 and 8 as a Half M/E (Program/Preset bus) complete with mix transitions and up to 4 DSK's.

Dual Multi-viewer
Two independent multi-viewers are equipped, each capable of displaying 16 windows with safety area marker and audio level meter.

Facility Integration
When integrating a router and switcher, FOR-A's system incorporates pass through for processing of tally information and source names. Integrate an Audio mixer with the HVS-390HS using ESAM II (edit suite audio mixer) industry standard protocol. Media player interfaces can use VDCP (video disk communications protocol) RS-422 based VTR style control. VR-Link Optional software for FOR-A for current or future virtual studio use.

Mobile and Up-link Production Trucks
The full-featured HVS-390HS is perfect for mobile video production or Up-Link applications in which space is limited. The rich switcher feature set is perfect for live or recorded production. With integrated frame synchronizers and multi viewers, the HVS-390HS can reduce the amount of equipment required in trucks. The unit can even be used as two 1M/E switchers. The included web control offers new possibilities for control, including remote control applications involving multiple users over IP.

Live Staging / Event Production
The combination of rich features and easy-to-understand flow make the HVS-390HS the perfect switcher for live applications where temporary systems need to be quickly set up. Advanced AUX allows multiscreen staging with effects. Streamline the number of switchers and system operation, keeping everything simple for everyone.

Broadcasting Environment
Utilize the HVS-390HS as the main switcher for Broadcasting Stations, cable TV stations and satellite studios. Its enriched feature set and programmability, with Advanced AUX facilitating powerful 6 M/E capability, allow you to create high quality content without compromise. FOR-A's manufacturing quality ensures a reliable solution for live programming.

House of Worship
The HVS-390HS is an ideal switcher for houses of worship where easy operation and multi-screen production are required. Simple control panel or intuitive GUI operation allow seasoned operators or volunteers to produce excellent results. Lyrics can be shown in different languages on sub-screens from the main screen using the Advanced AUX function. With the HVS-390HS, you do not need to be a professional operator to create attractive and impressive video production scenes.

Sub Screens
For large studios with on-set monitors or projection systems, easily send content to several monitors, incorporating individual keying and advanced transition effects, with the HVS-390HS. Instructional, reference, as well as other types of images can be displayed on studio monitors for studio audiences. Advanced AUX allows different characters to be displayed over multiple monitors or images to be switched with different transitions.

Flypack
The HVS-390HS is the perfect solution for flight pack systems due to its outstanding reliability under tough environments. The built-in frame syncs and two multi viewer channels mean fewer items are required in a compact system. With your choice of compact control panels and advanced features, including 4 keyers with 2.5D DVE per M/E, chroma keys and 12 DVEs, flypacks are a perfect solution offering full studio production capability in a portable configuration.

Multi-channel Delivery
Broadcasters who provide Internet-based 'second screen' content for major events will love this series of switchers. Assignable keys with individual sizing allow individual program or AUX outputs to be scaled to different resolutions, including those for smartphones, computers, tablet devices and televisions. In addition, multiple panels can be connected to an HVS-390HS unit via web browser and each screen separately controlled.
