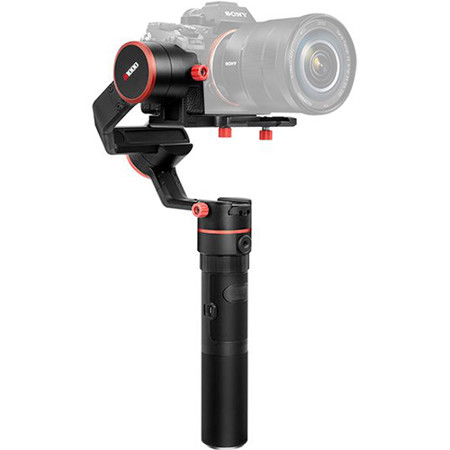

Feiyu a1000 3-Axis Handheld Gimbal Kit with Dual Grip Handle and Case for DSLR/Mirrorless Camera

a series 3-axis stabilizer provides perfect solution for steady footages and photos while shooting. Enable everyone to be professional photographer.

Multiple usage modes
Revolutionary anti-shake technology, small and portable design, making it easily to achieve the stability which can be only made by sliding rail. Simple and convenient operational experience enables everyone to be professional photographer.

1Kg payload & convenient balance solution make it compatible with more cameras
The bold innovation of a series product structure is to design the fixture module by adopting fixed system without extra tooling module, making it more convenient to balance the gravity center when change the camera and lens. No need to adjust the parameters, It will automatically adjust the motor strength and begin to work normally when boots up.

What you see is what you get
Benefits from the new optimization algorithm, a1000 adopts 45deg. elevation design at rolling axis, not only guarantee the stability, also, insure the viewfinder screen will not be covered by rolling axis. Thus, users can accurately compose the pictures without external monitor. Rolling motor of a1000 is designed to be slant. Thus, the screen of the camera will not be sheltered by rolling motor again and makes photography easier.

Rotation angle of two axis 3600 without limit
The adoption of unlimited motor at panning axis and tilting axis makes these 2 axis rotation at 360deg. without Limit. a series is the brand new handheld stabilizer for professional users. The innovative industrial design concept makes it easier to shift between the single hand held and dual handheld on professional handheld gimbal. The original factory standard of a1000 is single hand held grip. Meanwhile the users can choose the dual handle grip according to their own needs.

Integrated handle, multiple experience
Integration of joystick and control button on handle brings better user experience. Users can shift the holding gestures between standing holding, inverted holding, frontal holding, reversed holding, high position holding and low position holding easily as they like. The flat bottom make a1000 stand at any place without holder.

Innovative optimization algorithm
Innovative and high performance chips make the gimbal work perfectly. The torque of the motor is stronger. New optimization algorithm saves the redundant power, meanwhile, the motor can adapt itself automatically to work with camera of different weights.

Function button
Integrated with 4-way joystick control technology, it can adjust axis angle in all directions and accurately perceive the feedback of finger driving force, achieve smooth movement of the lens in the dynamic movement.

Time-lapse photography, fascinating visual impact
Time-lapse photography function can "compress" time, help users to shoot amazing videos containing the beauties of time change, which can't be caught by human eyes. Auto-rotation function and automatic shutter function of a series make dynamic time-lapse photography easier. Shutter cable within the product package is used to connect camera and gimbal. This cable can control the shutter button and focus button, also, can do setting for automatic shooting, time-lapse photography through APP Feiyu ON.

Platform development, more extension ports for accessories
There are nine 1/4 inch thread ports could be compatible with all external accessories with 1/4 thread such as tripod, It could be also compatible with cold shoe mount adapter with LED fill light / flash light/ soft light and other lightings. Flexible light supplement and broaden scene application of low light.

APP & Bluetooth control, abundant remote control function
The new Feiyu ON Android/iOS double-platform application program provides a1000 with remote control, parameter setting, firmware upgrading and other functions. To add the time-lapse photography and timed photography, making panorama shot and time-lapse photography more easier.

12 hours long working time
a series gimbals work with 2 pcs of Li-ion batteries:18650, with longer battery endurance and its working time is up to 12 hours in ideal condition.

Tool-Less Setup In Under 3 Minutes
Moving quick plate back and forth to balance tilting axis in a horizontal direction. Sliding the arms of three axis to balance the center of gravity of camera and then tighten the lock screws for three axis. The User-friendly damping sliding arm allows user setup the gimbal within 3 mints.

Battery
Battery model:18650, 2200mAh, 3.7V. (one positive side upward and the other negative side upward). Battery could be charged from external power sources by Micro USB port (It is fully charged when the LED changes from solid red to solid blue) or charged by smart charger (LED in solid red indicates the battery is charging, LED in solid blue indicates battery is fully charged).

Installation
Camera could be placed on the left or right side by moving tilt axis to the left or right. When moving the lens forward, we suggest placing the camera on the left side so that you can use interfaces for HDMI, shutter control, headphone, microphone and so on.

Balance Way
Moving quick plate back and forth to balance tilt axis in horizontal direction.
Sliding the arms of three axis to balance the center of gravity of camera and then tighten the lock screws for three axis.

Adjusting Motor Strength
Automatic identification algorithm to detect weights of different cameras and produce right motor strength to match with them , so that the gimbal will automatically be in the best performance without adjusting the motor strength.

Main functions for users
• Initialize the gimbal
• Firmware upgrading by computer (only supports Window for now)
• Setting the start and the end of time-lapse by hand (auto-rotation mode)
• Tilt and panning axis could be locked in any angle by hand
• Controlling focus and take picture-control of camera (shutter release needs to be connected)
• Timed photography (shutter release needs to be connected)
• Connecting Feiyu ON App for firmware upgrade, setting parameters and virtual remote control
• Controlled by smart remote within 4m after making a connection with it
