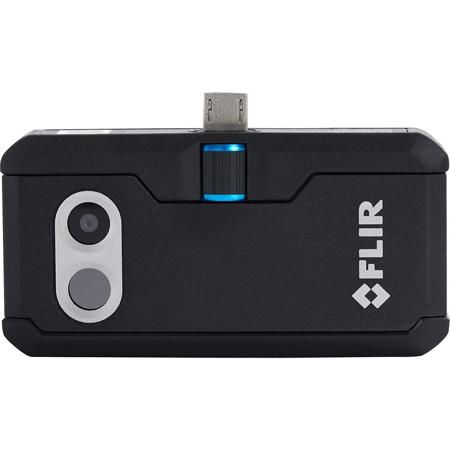

FLIR ONE PRO Pro-Grade Thermal Camera for Android with Micro USB Connector, MSX 160x120 Resolution

SKU: FLI435001103

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR ONE PRO Specifications

General

General

Jump to...
  • Accuracy

    +/-3 Degree C or +/-5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15 Degree C - 35 Degree C and the scene is within 5 Degree C - 120 Degree C

  • Non-Operating Temperature

    -4 Degree - 140 Degree F (-20 Degree - 60 Degree C)

  • Scene Dynamic Range

    -4 Degree - 752 Degree F (-20 Degree C - 400 Degree C)

  • Spot Meter

    Off / Degree C / Degree F. Resolution 0.1 Degree C / 0.1 Degree F

  • Thermal Sensitivity/NETD

    70 mK

  • Phone

    Android (Micro-USB)

  • Dimensions (H x W x D)

    2.7 x 1.3 x 0.6" (8 x 34 x 14mm)

  • Weight

    1.2 oz (36.5g)

  • Adjustable MSX distance

    0.3 m - Infinity

  • Battery charge monitor

    0 - 100%

  • Capture modes

    Video, Still image, Time lapse

  • File Formats

    Still images - radiometric jpeg

  • Palette

    Gray (white hot), Hottest, Coldest, Iron, Rainbow, Rainbow HC, Arctic, Lava and Wheel

  • Video and Still Image Display/Capture

    Saved as 1440 x 1080

Compliance & Certifications

Jump to...
  • Certifications

    MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233

Connections & Communications

Jump to...
  • Charging

    Female USB-C (5V/1A)

  • Video

    Micro USB

Environmental & Approvals

Jump to...
  • Emissivity Settings

    Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%

  • Mechanical shock

    Drop from 1.8 m

  • Operating Temperature

    32 Degree - 95 Degree F (0 Degree - 35 Degree C) , battery charging 0 Degree C - 30 Degree C (32 Degree F - 86 Degree F)

Imaging & Optical

Jump to...
  • Focus

    Fixed 15 cm - Infinity

  • Frame Rate

    8.7 Hz

  • General Description

    Thermal and Visual Cameras with MSX

  • HFOV/VFOV

    55 Degree +/-1 Degree / 43 Degree +/-1 Degree

  • Shutter

    Automatic/Manual

  • Thermal Resolution

    160 x 120

  • Thermal Sensor

    Pixel size 12 microm, 8 - 14 microm spectral range

  • Visual Resolution

    1440 x 1080

  • Battery charge time

    40 min

  • Battery Life

    Approximately 1 hour

  • UPC Code

    812462024407

About FLIR ONE PRO

The FLIR ONE Pro helps you find invisible problems faster than ever, whether you're inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage.

This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that's further enhanced by the revolutionary FLIR VividIR image processing.

Measure temperatures more than 3x higher than any FLIR ONE model-up to 400 Degree C (752 Degree F)-with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do.

The Professional's Thermal Smartphone Module

Image Detail and Clarity
With its 19,200 pixel resolution-a 4x improvement over the FLIR ONE Pro LT-and VividIR image processing, FLIR ONE Pro gives you the ability to see more detail when it matters most.

Expanded Measurement
Measure temperatures between up to 400 Degree C (752 Degree F)-compared with a maximum of 120 Degree C (248 Degree F) for the FLIR ONE Pro LT-with up to three spot temperature meters and six temperature regions of interest.

Jobsite Tough
Built to take the abuse that working on a jobsite dishes out every day, FLIR One Pro is rated to take a drop from 1.8 meters and is built to last.

What's in the box:

  • ONE PRO Pro-Grade Thermal Camera
  • FLIR 1 Year Limited Warranty
