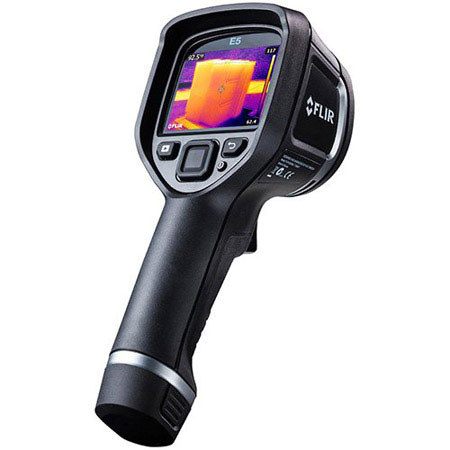

FLIR E-Series E5 Thermal Imaging Infrared Camera with MSX Enhancement, 120x90 IR Resolution, 3.0" 320x240 Color LCD Display, 9Hz Frame Rate

SKU: FLIE5

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR E5 Specifications

  • IR Resolution

    120 x 90

  • MSX Resolution

    320 x 240

  • Thermal Sensitivity

    <0.10deg.C

  • Field of View

    45deg. x 34deg.

  • Focus

    Focus Free

  • Detector

    Uncooled Microbolometer

  • Screen

    3.0 in. 320 x 240 color LCD

  • Frame Rate

    9 Hz

  • Image Modes

    IR image, visual image, MSX, thumbnail gallery

  • Multi Spectral Dynamic Imaging (MSX)

    IR image with enhanced detail presentation

  • Temperature Range

    -4deg. F to 482deg.F (-20deg. to 250deg.C)

  • Accuracy

    +/-2% or 2deg.C

  • Measurement Modes

    2 modes: 1 Spot (center); 1 Area Box (Min/Max)

  • Emissivity Correction

    Variable from 0.1 to 1.0

  • Color Palettes

    Iron, Rainbowand Gray

  • Set-up Commands

    Local adaptation of units, language, date and time formats

  • Storage Capacity

    Internal memory store at least 500 sets of images

  • Storage Mode

    Simultaneous storage of images in IR, visual and MSX

  • File Formats

    Standard JPEG, 14-bit measurement data included

  • Battery Type / Operation Time

    Lithium-ion Battery /4 hours

  • Drop

    2 m / 6.6'

  • Weight

    1.27 lbs (0.57 kg)

  • UPC Code

    845188005146

About FLIR E5

The FLIR E-Series E5 Thermal Imaging Infrared Camera is designed to enhance the electrical, mechanical and building diagnostics of users across key industries and professions. The FLIR E5 is an affordable solution that can help professional users track down electrical and mechanical overheating, air leaks, moisture ingress, missing insulation and a host of other issues that thermal imagers can detect and quantify.

Featuring a 10,800 (120 x 90) pixel IR resolution, a 20 degrees C to 250 degrees C temperature range and +/-2 percent or 2 degrees C accuracy, the FLIR E5 features a compact, rugged and user-friendly design, a vivid 3-inch color LCD display, wide-angle autofocus lens, intuitive camera controls and an on-board 640 x 480-pixel digital camera.

The E5 also provides FLIR's exclusive MSX (Multi-Spectral Dynamic Imaging) technology, which uses visible details from digital camera photos to create sharper IR images. Along with delivering a much clearer thermal picture overall, MSX makes it much easier to recognize the location of heat issues without obscuring or compromising the integrity of the original thermal scene. MSX is ideal for creating an All-in-One thermal image that clearly illustrates the location of emerging or existing issues and the bundled FLIR Tools software makes it simple to import, analyze and incorporate images into easy-to-understand reports to help provide convincing evidence for repairs.

MSX Thermal Image Enhancement
MSX adds key details from the onboard visible light camera to the entire infrared image in real time. The result: an All-in-One thermal picture with numbers, labels and other structural features intact so you'll instantly recognize where the heat issue is.

The Power of One Button
A focus-free lens and simple button navigation to on-screen settings, imaging modes, measurement tools and saved JPEGS make all four of these cameras amazingly easy to operate, even with just the press of a single gloved thumb.

Removable Battery
Quick-release, tool-type Li-ion battery is easy to remove, recharge and snap back in. Charge in-camera or with the optional charging station to keep you up and running all day.

Fast Temperature Measurement Tools
It gives you an area box tool with an automatic hot or cold spot that hunts down temperature extremes.

Multiple Imaging Modes
Let you view thermal, visual and MSX images and store them simultaneously for further analysis using FLIR Tools software.

What's in the box:

  • FLIR E-Series E5 Thermal Imaging Infrared Camera with MSX Enhancement
  • Lithium-Ion Rechargeable Battery
  • Power Supply
  • USB Cable
  • Hard Case
  • FLIR Tools Software for PC and Mac OS
  • User Manual
  • FLIR 10 Years Detector/5 Years Battery/2 Years Parts & Labor Warranty
