FLIR VS70-4 VideoScope Kit, Includes 4-Way Articulating 8mm Long Focus Camera

SKU: FLVS704

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

FLIR VS70-4 Specifications

  • Display Resolution

    640 x 480 px

  • Display Size

    5.7" (14.48cm)

  • Battery Life

    6 to 8 hrs (integrated)

  • Frame Rate

    30 fps (NTSC & PAL)

  • Video / Image Transfer

    SD Card or USB

  • Camera Diameter Range

    3.9 mm to 28 mm

  • Camera Focal Length Options

    Long View or Short View Macro

  • Camera Length Range

    0.3 m to 30 m

  • Certifications

    CE, FCC

  • UPC Code

    793950401743

About FLIR VS70-4

Maneuver into extremely tight operating environments to uncover hidden problems and solve issues. The FLIR VS70 is a rugged, waterproof and shock-resistant videoscope that features intuitive handset controls that enable users to maneuver the narrow camera probe into tight spaces to deliver vivid and sharp video and images to a large 5.7" color LCD display. Advanced inspection solutions, expansion cameras and add-on accessories enable users to expand their FLIR VS70 to address many different inspection needs.

Narrow Cameras
Gain access into tight spaces to uncover hidden problems, by delivering clear and sharp video and images to a large 5.7" color LCD display.

Versatile Controls
Intuitive handset controls enable users to select wide-angle 180-degree or 90-degree viewing angles with a simple press of the switch.

Reliable Design
Long battery life coupled with flexible USB charging options - including car charger - keeps your FLIR VS70 on the job for the entire day.

Shock-Resistant
Double-molded, rubber-reinforced case design is water- and dustproof and capable of withstanding drops from up to two meters high.

Video Capability
Instead of attempting to capture time-sensitive still images, record dynamic video that better illustrates the nature of problems. Also, grab still images from captured video directly on the FLIR VS70.

Voice Annotations
The included headset allows for easy voice annotation during deep-dive inspections to clarify findings and simplify reporting.

SD Card/USB
The VS70 includes SD card storage of video, image and audio files, as well as an on-board USB port for file transfer and battery charging.

Rugged and Durable
• Built tough to handle inspections all day long
• Waterproof (IP67 rated) Rubber-reinforced display unit is capable of withstanding two-meter drops (6.6')
• Extended battery life accommodates a full day of inspections without recharging
• Waterproof IP67 cameras with tungsten-reinforced articulation

Customizable
• Many applications for one system, with optional camera expansion and add-on accessories
• Multiple articulation options including two-way, twoway wireless and four-way wireless controls
• Handset controls allow users to select 180-degree or 90-degree camera angles with dual channel camera
• Base system is also available with a wide range of handsets, camera probes and wireless options

Document your findings
• Create reports quickly and easily
• Record video and images that transfer to a PC via SD card or USB port
• Voice annotate video recordings to add critical details (with included headset)
• Grab still images from captured video directly on the base unit

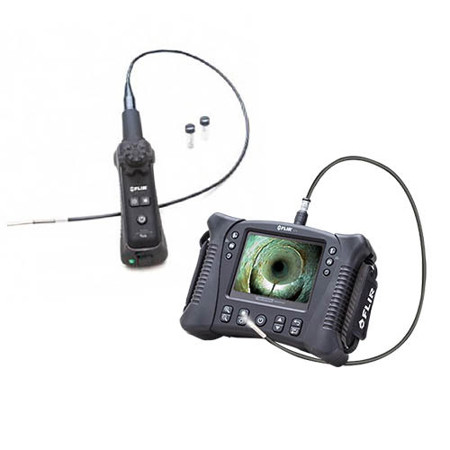

What's in the box:

  • FLIR VS70 Videoscope
  • 4-Way Articulation Wireless Handset
  • 8mm Long Focus Camera
  • 3x Screw-On Accessory Tips (Anti-Snag Ball/Magnet Tip/Mirror Tip (for 90deg. Side Views)
  • 4GB SD Card
  • USB/ Video Out Cables
  • Power Adapter
  • Vehicle Charger
  • Audio Headset
  • Shoulder Strap
  • Cleaning Kit
  • Hard Case
  • User Manual (Printed and on CD)
  • FLIR 2 Year Warranty
