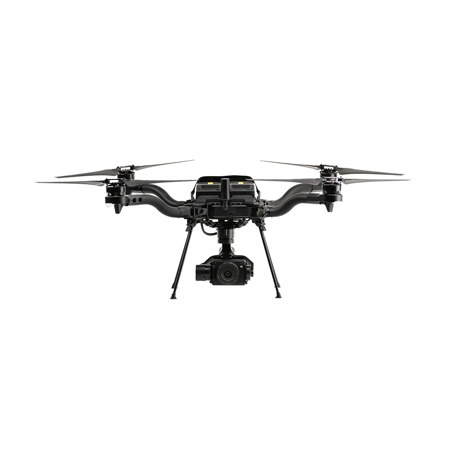

Freefly Astro Prime Drone with LR1 Payload and Pilot Pro Herelink RF Controller

Explore the cutting-edge capabilities of the Astro Prime Drone with LR1 Payload and Pilot Pro Herelink RF Controller, a compact industrial platform designed to elevate your aerial operations. Engineered by Freefly, a leader in commercial drone technology with over 100,000 successful flights, the Astro Prime Drone is a testament to innovation and precision.

This advanced drone platform integrates the Sony LR1 payload, Pilot Pro controller, Doodle Labs Radio, RTK, LTE cloud connectivity, and AuterionOS, offering a seamless and efficient aerial experience. The Astro Prime Drone is part of Freefly's mission to create the world's most productive drone ecosystem, adhering to open industry standards for maximum compatibility and value.

With a payload capacity ranging from 0 to 35 lbs, the Astro Prime Drone is versatile enough to meet diverse operational needs. Its design features 21-inch propellers on a compact 14-inch square body, maximizing flight time and stability. This unique configuration, where 96% of the total area is dedicated to the propellers, results in long flight durations, exceptional precision, and a remarkably low noise footprint.

The Astro Prime Drone is powered by the latest 21700 round cell lithium-ion battery technology. The SuperLight (SL8) batteries, equipped with an OLED screen, comprehensive protections, diagnostics, and an integrated USB-C PD port, ensure reliable power supply and accessory support in the field. Designed to fly on a single battery in case of a pack failure, these batteries are guaranteed for 500 cycles, with performance data stored in the Auterion Suite for easy fleet management.

Precision and agility are at the core of the Astro Prime Drone's design. Its motors and motor drives are capable of accelerating at 40kHz/s, providing smooth and responsive flight control. The Smart Dovetail system, developed by Freefly, offers a standard interface for payload manufacturers, ensuring compatibility and enhancing operational flexibility across your fleet.

Equipped with RTK GPS technology, the Astro Prime Drone achieves unparalleled positional accuracy, even in challenging conditions. The ublox F9p system locks onto over 20 satellites, and with the optional RTK base station, accuracy improves tenfold. The Pilot Pro controller allows real-time adjustments to the drone's velocities, enabling high-speed travel and precise positioning.

The Astro Prime Drone's LR1 Payload is ideal for high-resolution mapping and imaging missions, delivering stunning 61MP images. This payload seamlessly integrates with the Freefly Smart Dovetail system, providing power and data communication for camera and gimbal control.

Built and tested in the USA, the Astro Prime Drone undergoes rigorous structural, environmental, electrical, material, flying, control, payload, and software tests to ensure reliability and performance. With over 200 engineering test plans and 1,000+ hours of flight and simulated testing, this drone is designed to withstand the toughest conditions.

The Pilot Pro Herelink RF Controller offers complete control with real-time logging, error reporting, redundant screens, and a redundant kill switch. Machined from aerospace-grade aluminum, it is built to endure extreme conditions and provide uninterrupted operation with internal and hot-swappable external batteries.

Experience the future of drone technology with the Astro Prime Drone, designed to capture more, create faster, and work smarter, all while being supported by Freefly's comprehensive training, support, and spare parts services.
