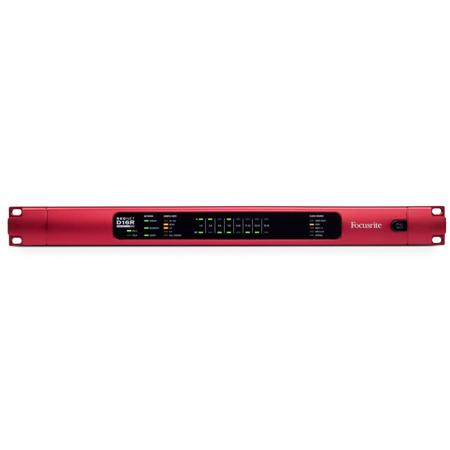

Focusrite RedNet D16R MkII 16x16 AES3 I/O Dante Audio Interface

-78 to 0dB in 1dB steps (per channel)

-78 to 0dB in 1dB steps (per channel)

32Hz to 214kHz

-0.3dB

Greater than 138dB (-60 dBFS method)

Less than -130dB (0.00003%); 0 dBFS input

11 to 45 samples (network and input sample rate dependent)

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit

Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master

Nominal sample rate +/-7.5%

2 x 2 S/PDIF Channels (reduces AES/EBU input channels)

2x DB25 connectors (AES59 Combined I/O / Tascam Digital)

Female XLR (replaces DB25 channels 1-2)

Male XLR (duplicates DB25 channels 1-2)

2 x 2 S/PDIF Channels (reduces AES/EBU input channels)

RCA phono socket (replaces DB25 channels 3-4)

RCA phono socket (switchable, duplicates any DB25 channel pair)

BNC 75 Ohm port (switchable termination)

BNC 75 Ohm port

2x Internal, 100-240V, 50/60Hz, consumption 30VA

2x EtherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accommodates rugged EtherCON NE8MC. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65 cable)

Green LED. Illuminates when an AC input is applied and all DC outputs are present

Green LED. Illuminates when an AC input is applied and all DC outputs are present

Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode

Green LED. When unit is following network grand master, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected

Orange LED for each: 44.1kHz, 48kHz, x2, x4

Orange LED. Indicates unit is set to operate on a Dante pull up/down domain

16 Green LEDs, 8 input/8 output indicators. Illuminate @ -126dBFS

Orange LED for each: Internal, Word Clock, DARS, Input 1-2 and Input 9-10

Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in switched mode, a valid network connection at either primary or secondary network port will cause this LED to illuminate

Allows unit to connect to two independent networks

Connects both ports to integrated network switch allowing daisy-chaining of devices

2x Internal, 100-240V, 50/60Hz, consumption 30VA.

Operates at up to an ambient temperature of 50 degrees Celcius

1.75 x 19 x 10.35" (44.5 x 482.6 x 263mm)

8.4 lbs (3.84kg)

815301001195
