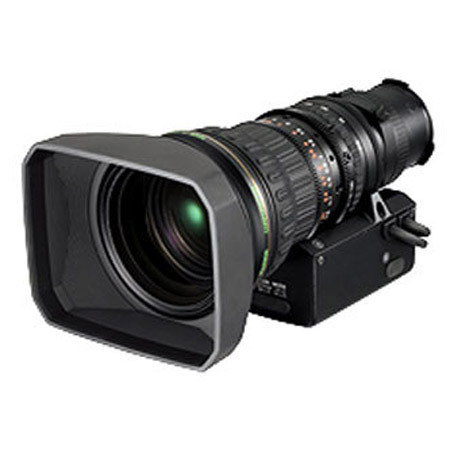

Fujinon ZA17X7.6BMD-DSD 7.6-130mm f/1.8-2.3 ENG Style Lens with Motor Drive, 17x Zoom Ratio

SKU: FU1776BMDDSD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Fujinon ZA17X7.6BMD-DSD Specifications

  • Format

    2/3" sensors

  • Focal Length

    7.6 - 130mm

  • Zoom Ratio

    17x

  • Aperture

    7.6 - 102mm: f/1.8 (T1.9)
    130mm: f/2.3 (T2.5)

  • Minimum Focus Distance

    From Image Plane: 2.76' (0.84 m)
    From Front of Lens: 1.97' (0.6 m)

  • Object Dimensions @ M.O.D. (16:9)

    7.6mm: 27.4 x 15.43" (69.6 x 39.2 cm)
    130mm: 1.69 x 0.94" (4.3 x 2.4 cm)

  • Angular Field of View (16:9)

    7.6mm: 64deg.30' x 39deg.03'
    130mm: 4deg.13' x 2deg.23'

  • Filter Size

    M82 with 0.75 thread

  • Dimensions (Dia x L)

    3.35 x 7.99" (8.5 x 20.3 cm)

  • Weight

    3.31 lbs (1.5 kg)

About Fujinon ZA17X7.6BMD-DSD

The Fujinon 7.6-130mm f/1.8-2.3 ENG Style Lens with 2x Extender and Digital Servo provides 2/3" cameras with a wide to long telephoto focal range. The fast maximum aperture is f/1.8 at 7.6-102mm and f/2.3 at 130mm. Motor Drive makes this lens suitable for full servo remote control as part of a pan and tilt system. This servo cannot be controlled while on the shoulder.

Internal focusing minimizes the effects of lens breathing, ensuring a more consistent focal length when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Zoom Limit function purposefully constrains the focal range to only desirable focal lengths.

Fujinon ZA17X7.6BMD-DSD Features

  • 7.6-130mm focal length for 2/3" cameras
  • Fast f/1.8 aperture at 7.6-102mm and f/2.3 at 130mm
  • Motor Drive for full servo remote control of focus and zoom
  • Innerfocus, QuickZoom and Zoom Limit

Key Features

  • 7.6-130mm focal length for 2/3 cameras
  • Innerfocus, QuickZoom and Zoom Limit
