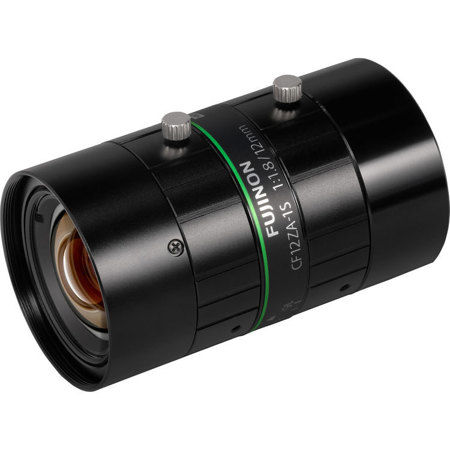

Fujinon CF12ZA-1S 1.1" 12mm f/1.8 Manual Iris C-Mount Lens

Before diving into the specifics, it's essential to note that the Fujinon CF-ZA-1S 1.1" 12mm f/1.8 Manual Iris C-Mount Lens is a high-resolution, compact lens designed to support large sensors. This lens is part of the CF-ZA-1S series, renowned for its superior optical design and performance.

The Fujinon CF-ZA-1S lens supports a 1.1" type sensor with a 2.5 microm pixel pitch, equivalent to a 23 mega-pixel resolution. This feature ensures that the lens can capture clear, high-quality images from the center to the peripheral areas. The relative illumination of this lens reaches above 90%, a testament to its ability to provide bright, balanced images.

One of the standout features of this lens is its original optical design by Fujifilm, which ensures a relative illumination of above 90%. This design supports a large 1.1" type sensor and keeps the Chief Ray Angle (CRA) below 5 degrees. The balance between these two factors results in clear, bright images, even in peripheral areas.

The Fujinon CF-ZA-1S lens also boasts the "4D High Resolution" feature, which maintains uniform high resolution from the image center to the peripheral area. This feature prevents the decline of resolution caused by shooting distance or F-Stop, ensuring high-resolution images under various settings and photographic conditions.

The lens is compatible with next-generation sensors, making it a future-proof investment. It is particularly suitable for IMX253 (1.1" type) and IMX255 (1" type) sensors. The lens can also support a 1.1" type sensor and 2.5micro m pixel, equivalent to a 23 mega-pixel resolution.

The Fujinon CF-ZA-1S lens also incorporates high-precision assembly technology and an original detector to restrain unilateral bokeh and single flaw. It adopts Fujifilm's original mechanical structure design for vibration-resistance and impact-resistance, ensuring high resolution even under challenging conditions.

The compact design of the lens, with an outer diameter of 39mm, contributes to space-saving. Despite its compact size, it can retrofit CF-ZA series on the Machine Vision camera that supports large sensors. The lens also features an internal mechanical focus, ensuring the overall length of the lens does not change when focused.

The Fujinon CF-ZA-1S lens is designed with user convenience and reliability in mind. It comes with three positioning holes for the fixation of the Iris and focusing on the lens body. The lens also features an indication sign that shows the optimal focus position when the subject is 50cm apart, aiding in effective flange back dislocation detection.

In conclusion, the Fujinon CF-ZA-1S 1.1" 12mm f/1.8 Manual Iris C-Mount Lens is a high-quality, compact, and reliable lens that delivers superior image quality, making it an excellent choice for professional photographers and videographers.
