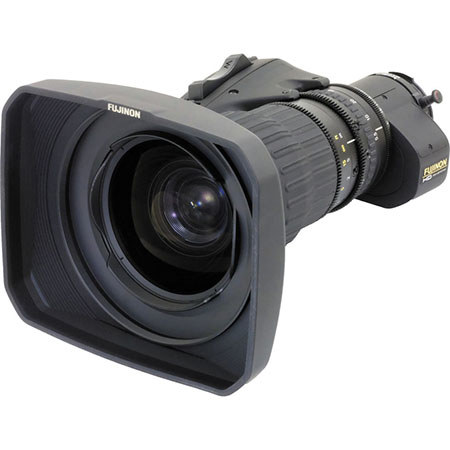

Fujinon HA18X5.5BERM-M6 Premier Series ENG/EFP Lens with Manual Focus, Servo Zoom and Robotics Applications, 5.5-100mm, f/1.8 (T1.9) and f/2.9 (T3.1) Aperture

SKU: FUHA18X55BRM

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Fujinon HA18X5.5BERM-M6 Specifications

  • Format

    2.3" / 58.42mm Type

  • Focal Length

    5.5 to 100mm
    With 2x Extender: 11 to 200mm

  • Zoom Ratio

    18x

  • Extender

    2x

  • Maximum Aperture

    5.5 to 62mm: f/1.8 (T1.9)
    100mm: f/2.9 (T3.1)

  • M.O.D. from Image Plane

    2.26' / 0.69m

  • M.O.D. from Front of Lens

    15.7"' / 0.4m

  • Object Dimensions at M.O.D. (16:9)

    5.5mm: 31.5 x 17.7" / 800.1 x 449.58mm
    101mm: 1.7 x 0.98" / 43.18 x 24.89mm

  • Angular Field of View (16:9)

    5.5mm: 82deg. 10' x 52deg. 13'
    100mm: 5deg. 29' x 3deg. 05'
    With 2x Extender:
    12.6mm: 47deg. 06' x 27deg. 32'
    202mm: 2deg. 45' x 1deg. 33'

  • Filter Thread

    1x M127

  • Dimensions

    3.74 x 9.5" / 95 x 241.3mm (without lens hood)

  • Weight

    4.49lbs / 2.04kg (without lens hood)

About Fujinon HA18X5.5BERM-M6

The all-new HA18x5.5 is a portable HDTV lens, covering the focal lengths of 5.5mm on the wide angle end to 100mm on the telephoto end. It features high-precision large-diameter aspheric elements, designed with Fujifilm's proprietary cutting-edge optical simulation technology, achieving sharpness at the centre as well as all corners to deliver edge-to-edge premium image quality. HA18x5.5 lets you approach objects up to a minimum distance of 40 cm. With the use of the built-in 2x Extender, the focal length on the telephoto end can be extended to 200mm. These features accommodate a broad range of scenes to dramatically improve on-site usability in news coverage and program content production. Ergonomic drive unit design effectively reduces the physical load on camera operators during hand-held shooting. Compatibility with a 16-bit encoder, which outputs focus and other lens data at high resolution, enables combination with various systems such as a Virtual Studio for combining CG and live footages.

Fujinon HA18X5.5BERM-M6 Features

  • Wider 5.5mm focal length at wide end
  • Outstading HD optical performance
  • 16bit encoders device for virtual system

What's in the box:

  • Fujinon HA18X5.5BERM-M6 Premier Series ENG/EFP Lens
  • Fujinon 2 Year Limited Warranty
