Closeout

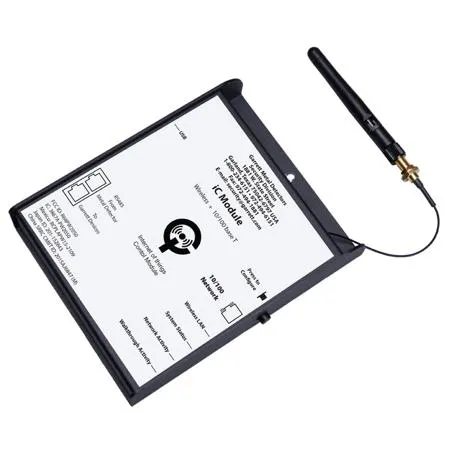

Garrett Wireless or Wired iC Module with CMA Software for PD 6500i or MZ 6100, Open Box

SKU: GA1171600O MFR: 1171600 O
Earn VIP Reward Points

Key Features

  • Seamlessly integrate this Garrett iC Module with your PD 6500i or MZ 6100 for enhanced security.
  • Enjoy reliable wireless or wired connectivity, ensuring your security system is always operational.
  • Utilize the included CMA Software for accurate data analysis and efficient management of your walkthroughs.
  • Benefit from easy-to-use controls and indicators, simplifying the configuration and monitoring process.
  • Experience long battery life and backup power, providing continuous operation even during power interruptions.
  • Enhance your public safety measures with this durable module, designed for demanding security environments.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Garrett IC MODULE OPEN BOX Specifications

  • System Requirements

    Wi-Fi or LAN Network
    USB Flash Drive
    Static IP Address to be assigned to each individual iC module

  • Software Requirements

    CMA Connect software (Included)
    Current Java Runtime Environment

  • Communication Input

    RS485 Garrett proprietary communications protocol

  • Communications Output

    USB for data retrieval
    WEP (40 bits and 104 bits), WPA-Personal/Enterprise, WPA 2 Personal/Enterprise
    802.1x support for all EAP variants, including LEAP
    RS 485 for additional Garrett devices such as Remote Control

  • Network Requirements

    Wi-Fi, 802.11 ac/b/g/n on 2.4GHz and 5GHz WiFi bands
    LAN, 10/100 base T ethernet

  • System/Software Requirements

    Personal Computer and Wireless Network
    Garrett CMA Connect Software
    Java Runtime (provided)

  • Simultaneous Connections

    10 Control session
    10 Monitor session

  • Memory

    128 Mb Flash

  • Built In Features

    Clock with internal battery backup
    Secondary local Wi-Fi channel reserved for device configuration
    Real time communication of PD 6500i and MZ 6100settings and status
    Backup power for 45 seconds, to notify when walkthrough is turned off
    12 month alarm history
    Powered from the PD 6500i or MZ 6100 via the RS485 communication cable

  • Controls

    Pushbutton to enable configuration channel broadcast and access
    Power Cycle to block configuration channel broadcast and access

  • Indicators

    Wireless LAN
    System Status
    Network Activity
    Walkthrough Activity

  • Antenna

    Weatherproof External Dual Band Dipole with RSMA connector

  • Certification

    FCC and Industry Canada Certification

  • Power

    15 Volt, 3.75 Watts

  • Operating Temperatures

    -4 Degree F to 158 Degree F (-20 Degree C to 70 Degree C)
    Environmental Module protected inside PD 6500i or MZ 6100 housing

  • Battery Info

    Required, included

  • Battery Quantity

    1

  • Dimensions

    4.5 x 1.2 x 5.9" (11.4 x 2.9 x 14.9cm)

  • Weight

    9.2 oz (260.8g)

About Garrett IC MODULE OPEN BOX

Because security and efficiency are paramount in high-traffic environments, the iC Module with CMA Software for PD 6500i or MZ 6100 is an indispensable tool for enhancing your metal detection operations. This high-tech module, compatible exclusively with Garrett's PD 6500i or MZ 6100 walk-through metal detectors, offers a seamless integration that allows for comprehensive control, real-time monitoring, and advanced diagnostics from any remote location.

Crafted with durability in mind, the iC Module is a robust accessory that ensures reliable performance in various settings. Whether you opt for a wired or wireless configuration, this module maintains a user-friendly interface that simplifies the management of your security equipment. Its compact design ensures it is portable and unobtrusive, fitting effortlessly into your existing security infrastructure.

The internal memory of the iC Module is a testament to its high-tech capabilities, meticulously recording all adjustments to settings, passenger flow, and alarm history. This data is crucial for analytical evaluation, enabling security personnel to make informed decisions based on accurate, historical information. With the ability to download and save up to one year of data, the iC Module provides a comprehensive overview of the activities and statistics for each metal detector within your network.

The CMA Connect Software Monitor is a standout feature, offering a bird's-eye view of all walk-through detectors in your network. It allows for real-time monitoring of operational status, patron counts, and alarm incidents, ensuring that security supervisors are always informed and ready to respond.

Furthermore, the iC Module's Group Management functionality is a powerful feature for organizations with multiple detectors. It enables the detectors to be organized into groups for efficient viewing and management. Settings can be synchronized and pushed out to all units within a group simultaneously, saving time and ensuring uniformity across the network.

Lastly, the remote control capability empowers supervisors with the ability to troubleshoot or modify detector settings from afar, minimizing downtime and enhancing the overall security process.

In summary, the iC Module with CMA Software for PD 6500i or MZ 6100 is a sophisticated, durable, and user-friendly solution that elevates the functionality of your Garrett metal detectors, ensuring that your security measures are as robust and efficient as possible.

Garrett IC MODULE OPEN BOX Features

  • Check settings and diagnose issues from your network computer
  • Analyze security checkpoint alarm rates, patron counts and other diagnostic statistics. 12-Month alarm history offers one-year rolling log file
  • Control walk-through settings remotely as individual units or as groups
  • Real-time data output of activity can be viewed on your PC
  • No separate power is required. Uses walk-through power
  • Software included. Garrett's CMA Connect software is included with each CMA Wireless Module. See reverse side for details on this software

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Seamlessly integrate this Garrett iC Module with your PD 6500i or MZ 6100 for enhanced security.
  • Enjoy reliable wireless or wired connectivity, ensuring your security system is always operational.
  • Utilize the included CMA Software for accurate data analysis and efficient management of your walkthroughs.
  • Benefit from easy-to-use controls and indicators, simplifying the configuration and monitoring process.
  • Experience long battery life and backup power, providing continuous operation even during power interruptions.
  • Enhance your public safety measures with this durable module, designed for demanding security environments.

What's in the box:

  • Garrett Wireless or Wired iC Module with CMA Software
  • Garrett 2 Year Limited Warranty
