Galaxy Audio Any Spot DHX Wireless Microphone System, Includes DHXR Receiver, MBP77 Bodypack Transmitter and LV-U3BK Lavalier Microphone, Frequency D: 584 - 607MHz

SKU: GADHXR77LVD MFR: DHXR/77LVD
Earn VIP Reward Points

Key Features

  • Crystal-clear audio: The lavalier microphone captures pristine sound for interviews and presentations.
  • Wireless freedom: Enjoy up to 300 feet of range with this UHF wireless microphone system for mobility.
  • Versatile use: Perfect wireless microphone for lectures, church services, and live performances, indoors.
  • Easy setup: The wireless lavalier microphone system includes everything needed for quick, simple operation.
  • Durable design: Built with a metal chassis, this wireless microphone system is designed for reliable use.
  • Long battery life: Get up to 6 hours of continuous use with the bodypack transmitter on this microphone.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Galaxy Audio DHXR/77LVD Specifications

DHX System

DHX System

Jump to...
  • Frequency Range

    CODE D 584 - 607 MHz

  • Transmitter Output Level

    20 mW

  • Band

    UHF

  • Operating Range

    Under Typical Conditions 300' (92m), actual range depends on RF signal absorption, reflection and interference

  • Audio Frequency Response

    (+/-3 dB) 60 Hz - 16 kHz

  • Total Harmonic Distortion

    (+/-30 kHz deviation, 1 kHz tone): <1%

  • Dynamic Range

    >90 dB A-weighted

  • Operating Temperature Range

    14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range

Receiver

Jump to...
  • Audio Output Level

    XLR Connector (into 600 Ohms load) -12 dBV
    1/4" Connector (into 3 k Ohms load) -18 dBV (+/-30 kHz deviation, 1 kHz tone)

  • Output Connections

    1 Male XLR Balanced
    1 1/4" Unbalanced

  • Output Impedance

    XLR connector 200 Ohms
    1/4" connector 1 kOhms

  • XLR Output

    Impedance balanced:
    Pin 1: Ground (cable shield)
    Pin 2: Audio +
    Pin 3: No Audio -

  • Sensitivity

    -93 dBm for 30 dB

  • Image Rejection

    >90 dB

  • Casing

    Metal Chassis EIA STANDARD 1/2 U

  • Power Requirements

    12-18 V DC at 1000 mA, supplied by external power supply

Bodypack Transmitter

Jump to...
  • Max Audio Input Level

    0 dBV maximum at mic gain position
    +10 dBV maximum at 0 dB gain position
    +20 dBV maximum at -10 dB gain

  • Gain Adjust

    Mic / 0 dB / -10 dB

  • RF Output

    20 mW

  • Input Impedance

    470 kOhms

  • Power Requirements

    2 "AA" size alkaline or rechargeable batteries

  • Battery Life

    About 6 hours (alkaline)

Microphone

Jump to...
  • Sensitivity

    -65 +/- 4dB (0dB=1V/UBR 1kHz)

  • Frequency Response

    50Hz - 19kHz

  • Output Impedance

    2K Ohms Max. (RL-2.2K Ohms)

  • Directionality

    Uni-directional

  • Working Voltage Range

    1 - 10V

  • Standard Working Voltage

    3V

  • Current Consumption

    250UA (Max.)

  • Maximum Input Sound Pressure

    110dB SPL

  • S/N Ratio

    >44dB

General

Jump to...
  • Dimensions (HxWxD)

    Receiver: 1.7 x 8.3 x 6.3" (4.32 x 21.08 x 16cm)
    Bodypack Transmitter: 3.5 x 2.6 x 1" (8.89 x 6.60 x 2.54cm)

  • Weight

    Receiver: 31.7 oz (898.68g)
    Bodypack Transmitter without Batteries: 3.0 oz (85.05g)

  • UPC Code

    691281007118

About Galaxy Audio DHXR/77LVD

Why settle for less when you can have the best in wireless audio technology The Any Spot DHX Wireless Microphone System is a comprehensive, high-quality solution for all your live performance needs. This professional-grade system includes a DHXR Receiver, an MBP77 Bodypack Transmitter, and an LV-U3BK Lavalier Microphone, all operating within the reliable frequency range of 584-607MHz.

The DHX system is designed with the professional in mind, featuring Auto Scan technology that automatically searches for an available frequency and syncs it to your transmitter via IR Sync. Its large LCD display provides clear visibility of the channel number, frequency, lock mode, and volume output, ensuring you're always in control of your audio setup.

The DHX receiver is equipped with an easy-to-read RF and AF indicator, and UHF diversity antennas for quality operation. It's compatible with any 77 or 65 Series transmitter and boasts a range of up to 300 feet. The receiver also includes a single/dual rack kit for easy installation.

The MBP77 Bodypack Transmitter features an LCD display, a 3-bar battery life indicator, and an on/off/mute button for easy operation. It also offers IR Sync from transmitter to receiver, a manually set frequency, and operates on 2 AA batteries for up to 6 hours of alkaline use. It's compatible with the WMC-CGR Charger Station for added convenience.

The LV-U3BK Lavalier Microphone, included in the package, is a uni-directional lapel microphone that comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, and Traveler Lavalier Systems. It can be wired to work with transmitters made by Galaxy Audio, Shure, Sennheiser, AKG, and Audio Technica, as well as most other brands of wireless microphone systems.

Experience the difference of a durable, innovative, and professional wireless microphone system with the Any Spot DHX. It's the perfect choice for those who demand quality and reliability in their audio equipment.

Galaxy Audio DHXR/77LVD Features

  • Professional-grade wireless system with DHXR Receiver, MBP77 Bodypack Transmitter, and LV-U3BK Lavalier Mic
  • Auto Scan and IR Sync for seamless frequency matching and setup
  • Clear LCD display for monitoring channel, frequency, and volume levels
  • Operates within a 584-607MHz frequency range for reliable wireless audio
  • UHF diversity antennas and up to 300' range for uninterrupted performance
  • Compatible with multiple transmitter brands, enhancing system versatility

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Crystal-clear audio: The lavalier microphone captures pristine sound for interviews and presentations.
  • Wireless freedom: Enjoy up to 300 feet of range with this UHF wireless microphone system for mobility.
  • Versatile use: Perfect wireless microphone for lectures, church services, and live performances, indoors.
  • Easy setup: The wireless lavalier microphone system includes everything needed for quick, simple operation.
  • Durable design: Built with a metal chassis, this wireless microphone system is designed for reliable use.
  • Long battery life: Get up to 6 hours of continuous use with the bodypack transmitter on this microphone.

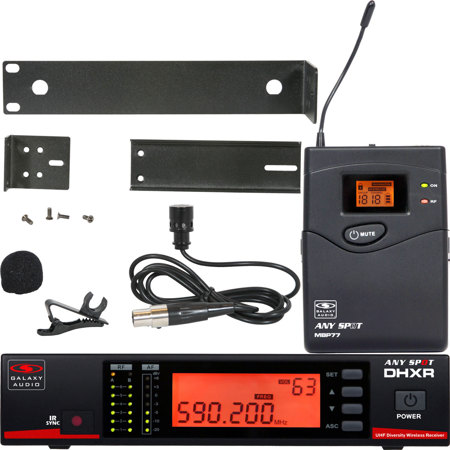

What's in the box:

  • Galaxy Audio DHXR Receiver
  • MBP77 Bodypack Transmitter (2AA Batteries Not Included)
  • LV-U3BK Lavalier Microphone
  • Single/Dual Rack Kit
  • 1/4 " to 1/4 " Audio Cable
  • Power Supply
  • 2x Antennas
  • 6x Rack Ear Screws
  • 2x Coupler Screws
  • 2x Antenna Plugs
  • Quick Start Guide
  • Galaxy Audio 3 Year Limited Warranty
