16
CODE D 584-607 MHz
10 mW
UHF
Under Typical Conditions 200' (61m), actual range depends on RF signal absorption, reflection and interference
(+/-3 dB) 60 Hz - 16 kHz
(+/-30 kHz deviation 1 kHz tone): <1%
>90 dB A-weighted
14 to 122 deg. F (-10 to 50 deg. C), battery characteristics may limit this range
XLR Connector (into 600Ohms load) -12 dBV
1/4" Connector (into 3KOhms load) -18 dBV
XLR Connector 200Ohms
1/4" Connector 1KOhms
Impedance balanced:
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
-92 dBm
>92 dB
12-18 VDC at 300mA, supplied by external power supply
0 dBV
Trim pot
10 mW
70 Hz - 10 kHz
2 "AA" size alkaline or rechargeable batteries
About 8 hours (Alkaline)
Receiver (HxWxD): 1.7 x 8.3 x 5" (4.32 x 21.08 x 12.70cm)
Handheld Transmitter (LxDia.): 10.9 x 1.85" (27.69 x 4.70cm)
Receiver: 13.6 oz (385.55g)
Handheld Transmitter: 6.9 oz (195.61g) (without batteries)
691281006494

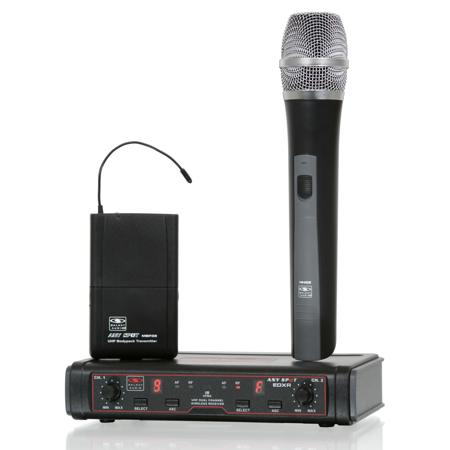

The EDX Series is a dual channel wireless system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit. The EDXR can be used and will sync with HH38 handheld transmitter. The handheld transmitter features an on/off switch and are powered by two "AA" batteries.
200' Range
16 Selectable UHF Frequencies
Internal Antennas
- EDXR Receiver -
Dual Channel Receiver
AF & RF Indicators
IR Sync Receiver to Transmitters
1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
2 Internal Antennas (Non-Diversity)
Rugged Plastic Casing
- HH38 Dynamic Handheld Transmitter -
Dynamic Handheld Microphone Transmitter for the EDX Wireless Microphone System.
Dynamic Cardioid
On/Off Switch
IR Sync Transmitter to Receiver
Plastic Casing
Operates on 2 AA Batteries (up to 8 hours Alkaline)
