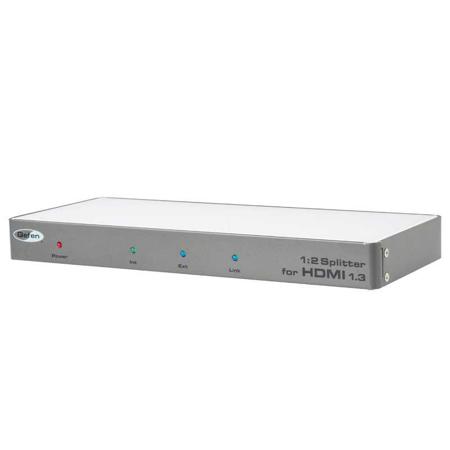

Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio

Split HDMI 1.3 to 2 HDTV Displays - with additional optical digital audio output
The 1:2 Splitter for HDMI 1.3 with Digital Audio sends a Hi-Def A/V source to up to 2 HDTV displays at the same time without losing quality or resolution. This product works with any Hi-Def source supporting resolutions up to 1080p Full HD with Deep Color, 3DTV pass-through and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. A TOSLINK output on the rear of the Splitter feeds digital audio to an external amplifier or receiver for additional installation flexibility.

How It Works

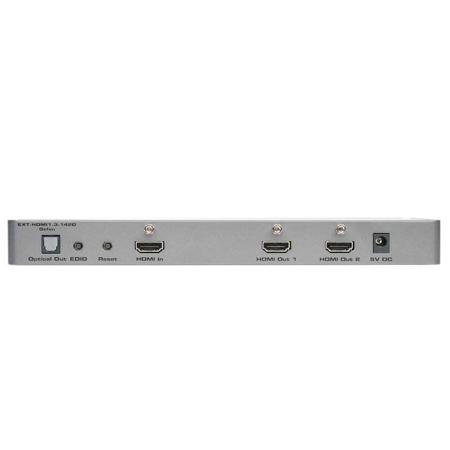

Connect the Hi-Def source to the HDMI input on the product using the supplied HDMI cable. Connect up to two (2) HDTV displays to the two (2) HDMI outputs on the product. Connect an optical audio cable from the TOSLINK connector on the Splitter to an A/V receiver or amplifier. Connect the power supply to the product and connect the power cable to an available electrical outlet. Apply power to the source and displays. The source signal will now be seen on two (2) displays at the same time.

Features
• Simultaneously displays a single Hi-Def source on up to two (2) HDTV displays without signal loss
• Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
• 3DTV Pass-Through
• EDID Management for rapid integration of sources and display devices
• Locking HDMI Connectors
• Built-in TOSLINK audio output connector
• Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
• HDMI and HDCP compliant
