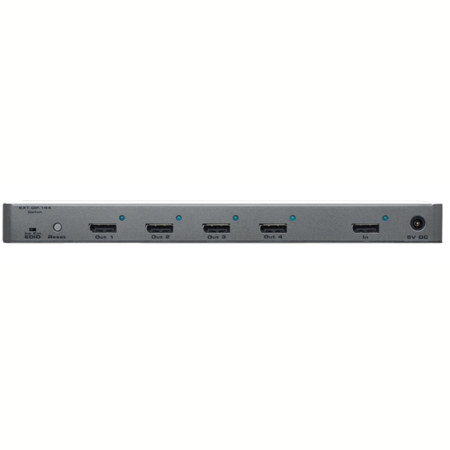

Gefen 1:4 Splitter for DisplayPort

SKU: GEDP144 MFR: EXT-DP-144
Earn VIP Reward Points

Key Features

  • Share crisp visuals with this DisplayPort splitter, perfect for presentations and displays.
  • Boost your productivity using this 1x4 splitter to extend a DisplayPort signal to four screens.
  • Enjoy high-resolution video up to 2560x1600 with our reliable DisplayPort splitter solution.
  • This DisplayPort splitter supports up to 10.8Gbps, ensuring smooth, high-quality video output.
  • Compact design makes this DisplayPort splitter easy to integrate into any workspace or setup.
  • Built for durability, this DisplayPort splitter offers consistent performance for years to come.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Gefen 1:4 Splitter for DisplayPort Specifications

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions (W x H x D)

    10.75 x 1.25 x 5.25" / 273.05 x 31.75 x 133.35mm

  • Maximum Data Rate

    10.8Gbps

  • Power Consumption

    15W (max.)

  • Maximum Resolution

    2560x1600

  • Maximum Pixel Clock

    300MHz

  • Video Output Connectors

    4x DisplayPort, Female

  • Power Supply

    5V/3A DC

  • Video Input Connector

    DisplayPort, Female

  • Certification

    UL Listed

  • UPC Code

    845344047645

About Gefen 1:4 Splitter for DisplayPort

Distribute a DisplayPort source to four locations
The Gefen 1:4 Splitter for DisplayPort allows a DisplayPort-equipped source to be connected to four DisplayPort displays. EDID management provides rapid integration of source and displays. Two or more of these splitters can be connected together to create larger video distribution networks.

How It Works
Connect a DisplayPort source to the input on the splitter using the supplied DisplayPort cable. Connect up to four DisplayPort high-definition displays to the outputs of the 1:4 Splitter for DisplayPort. If the source and/or displays are not 100% DisplayPort compliant, a protocol-specific adapter will be required in order to connect the non-compliant source to the splitter or to connect the splitter to the non-compliant display.

Features
• Simultaneously displays one DisplayPort source on up to four displays
• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
• EDID Management for rapid integration of source and displays
• EDID Reset button
• Supports up to 7.1 channels of linear PCM audio (32 kHz - 192 kHz sampling rate)
• Supports DisplayPort 1.1a

Key Features

  • Share crisp visuals with this DisplayPort splitter, perfect for presentations and displays.
  • Boost your productivity using this 1x4 splitter to extend a DisplayPort signal to four screens.
  • Enjoy high-resolution video up to 2560x1600 with our reliable DisplayPort splitter solution.
  • This DisplayPort splitter supports up to 10.8Gbps, ensuring smooth, high-quality video output.
  • Compact design makes this DisplayPort splitter easy to integrate into any workspace or setup.
  • Built for durability, this DisplayPort splitter offers consistent performance for years to come.

What's in the box:

  • Gefen 1:4 Splitter for DisplayPort
  • CAB-DPN-06MM 6' DisplayPort Cable
  • EXT-PS53AIP 5V/3A Power Supply
  • QSG-DP-144 Quick Start Guide
  • Gefen 2 Year Limited Warranty
