Gefen 4K Ultra HD 600MHz 8x8 Matrix Router with HDR and Audio De-Embedder

After extensive research and development, we present the advanced 4K Ultra HD 600MHz 8x8 Matrix Router with HDR and Audio De-Embedder. This high-tech device is designed to route eight 4K 60 Hz 4:4:4 sources to any combination of up to eight 4K 60 Hz 4:4:4 displays, providing a versatile solution for high-quality video and audio signal distribution.

This innovative product supports 18.2Gbps of bandwidth and 600MHz TMDS Clock frequency, the highest specified under the HDMI 2.0 standard. This state-of-the-art technology allows the device to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4), along with HDR (High Dynamic Range) for superior image quality.

The device is also compatible with HDCP 2.2 and the legacy HDCP 1.4 content protection algorithms. It supports 1080p Full HD, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p resolution), making it a versatile choice for various video formats.

Understanding the importance of audio in creating a complete sensory experience, this sophisticated device features analog and digital audio outputs. These break out the audio stream (2 channel analog, 2 channel PCM, and up to 5.1 channel Bit stream) from each HDMI source, allowing the de-embedded audio content to be sent to external amplifiers and music distribution systems. This feature enhances the audio impact in settings such as bars, restaurants, clubs, venues, and corporate offices.

The device also supports high-performance multichannel digital audio, including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. These are passed through from the sources to the HDMI outputs, ensuring a rich and immersive audio experience.

The 4K Ultra HD 600MHz 8x8 Matrix Router with HDR and Audio De-Embedder is designed to work seamlessly with the Gefen Syner-G software, simplifying initial IP configuration and EDID Management. It can be controlled via various methods including front-panel push buttons, the included handheld IR Remote Control, RS-232, Telnet, UDP, and Gefen's intuitive web server interface.

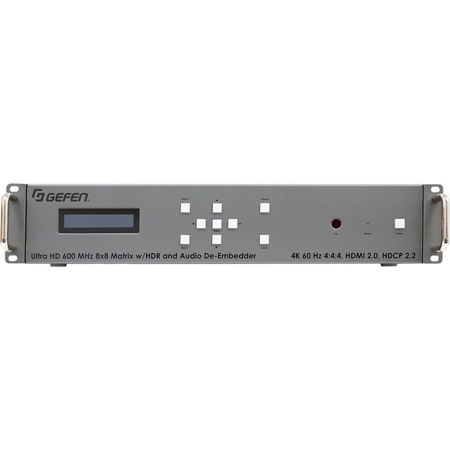

This device is housed in a 2U tall, rack-mountable enclosure that can also be placed on a shelf. It accommodates Gefen locking HDMI cables to ensure secure connections. The super-bright OLED front panel display provides clear routing status and IP settings information. This product is a testament to our commitment to providing cutting-edge audio/video signal processing solutions.
