X-Rite i1Basic Pro 3 Plus, 1024x768 Pixels or Higher

SKU: GHEO3PLBAS MFR: EO3PLBAS
Earn VIP Reward Points

Key Features

  • Achieve accurate color with the i1Basic Pro 3 Plus for professional-grade monitor calibration.
  • Ensure high resolution display accuracy; supports 1024x768 pixels or higher for detailed work.
  • Enjoy wide coverage with a spectral range of 380-730 nm, capturing a broad color spectrum.
  • Fast response times for quick, reliable measurements with 400 measurements per second.
  • Get good contrast and consistent color with the included polarizing filter for optimal viewing.
  • Supports HDR, ensuring your monitor displays a high dynamic range for vibrant, true-to-life images.
See More Product Details
Pre Order Now?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

X-Rite i1Basic Pro 3 Plus Specifications

  • Aperture

    Measurement aperture: 0.31" (8mm) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)

  • Available Disk Space

    2GB

  • Calibration

    Automatic on Integrated Calibration Reference

  • Communication Interface

    USB 1.1

  • Connectivity

    Powered USB port

  • Display Resolution

    1024 x 768 pixels or higher

  • Experience Level

    Intermediate to Advanced

  • Humidity

    30 to 85% RH (non-condensing)

  • Illumination Spot Size

    0.47" (12mm)

  • Inter-Instrument Agreement

    0.4 dE00 average, 1.0 dE00 max. (deviation from X-Rite manufacturing standard at a temperature of 23 Degree C (73.4 Degree F) on 12 BCRA tiles (D50, 2 Degree )

  • Internet Connection

    Required for software install, download and automatic update

  • Languages Supported

    Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish

  • Light Source

    i1Pro 3 Plus LED Illumination (including UV)

  • Macintosh

    MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)

  • Measurement Conditions

    M0 - UV included - ISO 13655:2017
    M1 - D50 - ISO 13655:2017
    M2 - UV excluded Filter - ISO 13655:2017
    M3 - Polarization - ISO 13655:2017

  • Measurement Frequency in Scanning Mode

    400 measurements per second

  • Measurement Geometry

    45 Degree :0 Degree ring illumination optics, ISO 13655:2017

  • Measurement Spot

    0.315" (8mm)

  • Media Thickness

    0.039" (1mm) or less

  • Memory

    2GB Minimum

  • Operating Temperature Range

    50 Degree F to 95 Degree F (10 Degree C to 35 Degree C)

  • Patch Size (W x H)

    Minimal Patch Size in Scanning Mode: 0.63 x 0.63" (16 x 16 mm) with sensor ruler
    0.79 x 0.63" (20 x 16 mm) without sensor ruler

  • Photometric Range

    10nm; Sampling interval 3.5nm

  • Processor

    MAC: Intel Core 2 Duo CPU or better; WINDOWS: Intel Core 2 Duo or AMD Athlon XP or better

  • Scan Length

    Maximum 20.28" (515mm)

  • Scanner Target Support

    Yes

  • Scanning Capability

    Yes

  • Security

    User must have Administrator rights to install and uninstall the application

  • Short Term Repeatability - White

    Reflectance: 0.1 dE94 (D50, 2 Degree , mean of 10 measurements every 3 seconds on white)

  • Spectral Analyzer

    i1 technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array

  • Spectral Range

    380 - 730 nm

  • Spectral Reporting

    380 ... 730 nm in 10 nm steps

  • Storage Temperature Range

    -4 Degree to 122 Degree F (-20 Degree to 50 Degree C)

  • Supported Profile Format

    ICC version 2, version 4.3, & iccMax

  • User Experience

    Choose between a 'Basic', wizard-driven interface or an 'Advanced', user-driven interface for highest level professional results

  • Video Card

    MAC: Latest drivers for video card installed
    WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded

  • Windows

    Windows 7, 8, 8.1, 10 (with latest Service Pack installed)

  • Dimensions (L x W x H)

    6.4 x 2.7 x 2.5" (162 x 69 x 64mm)

  • Weight

    10.1 oz (285g)

  • UPC Code

    7640111923046

About X-Rite i1Basic Pro 3 Plus

i1Basic Pro 3 Plus is an affordable, professional-level spectral color measurement solution including display and projector profiling and print quality assurance.

The Standard of Color Perfection
Designed for imaging professionals who rely on accurate color for their displays and projectors who want to track and verify monitor and print quality and who need to capture spot color measurement, the i1Basic Pro 3 Plus is the answer.

The i1Basic Pro 3 Plus calibrates and matches multiple displays, including up to four displays connected to a single computer as well as unlimited multiple monitors connected to different computers for consistent color viewing.

With the i1Basic Pro 3 Plus, you can quickly and easily create custom monitor and projector profiles that ensure the colors you view are true, verify soft proofs and print quality with built-in Quality Assurance (QA) tools, and easily capture and manage spot colors.

Benefits:

Large aperture (8mm) with support for high brightness levels (up to 5000nits), improve emissive measurement, resulting in the best possible calibration and profiling of monitors and projectors.

Full support for the latest video standards, including NTSC, ITU-R-Rec.BT.709 and PAL SECAM broadcast video standards.

PANTONE Color Manager software enables accurate capture and management of spot colors and helps users build palettes of best match PANTONE colors that are auto-extracted from their own images.

Easy upgrade to i1Publish software to add complete printer (RGB, CMYK, CMYK + any four) profiling and quality control functionality, and camera profiling capabilities.

For increased automation, use the optional i1iO automated hands-free chart reader or add an i1iSis 2 automated chart reader for creating printer profiles.

Key Features

  • Achieve accurate color with the i1Basic Pro 3 Plus for professional-grade monitor calibration.
  • Ensure high resolution display accuracy; supports 1024x768 pixels or higher for detailed work.
  • Enjoy wide coverage with a spectral range of 380-730 nm, capturing a broad color spectrum.
  • Fast response times for quick, reliable measurements with 400 measurements per second.
  • Get good contrast and consistent color with the included polarizing filter for optimal viewing.
  • Supports HDR, ensuring your monitor displays a high dynamic range for vibrant, true-to-life images.

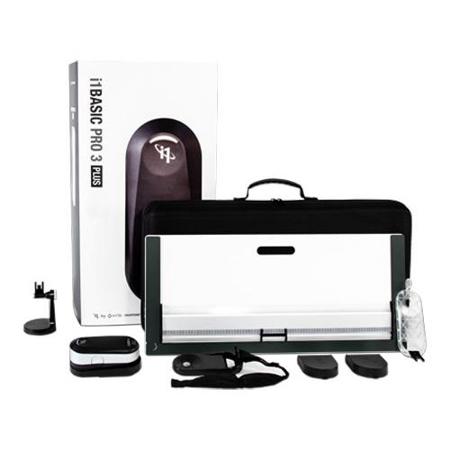

What's in the box:

  • i1Basic Pro 3 Plus Spectrophotometer (Measurement Device)
  • Calibration Plate
  • Polarizing Filter
  • Ambient Light Measurement Head
  • Monitor Holder
  • Positioning Target
  • XL Scanning Ruler
  • XL Backer Board
  • USB Cable
  • i1Profiler v3.x Software
  • PANTONE Color Manager Software
  • X-Rite 1 Year Limited Warranty
