Garmin Tacx NEO Specifications

Connectivity

Connectivity

Jump to...
  • Wireless Communication

    ANT+ connectivity, BLUETOOTH wireless technology

  • Control by

    Smartphone, tablet, ANT+ bike computers, stand alone, computer connection via ANT+ antenna

  • Read Out on

    Smartphone, tablet, bike computer, computer with ANT+ antenna

  • Connection Indicator (ANT+/Bluetooth)

    2 LEDs

  • Power Indicator

    Multicolor LED, spot on floor

Indoor Training Features

Jump to...
  • Magnets

    32 neodymium magnets

  • Electrical Requirement

    110-240 Volts

  • Gear Ratio

    Chainring set-up: up to 3 sprockets, teeth per sprocket adjustable between 22 and 53; rear cassette: up to 12 sprockets, teeth per sprocket adjustable between 11 and 40

  • Q-Factor

    147mm

  • Max Power

    2200 Watt

  • Max Incline

    25%

  • Simulation of Descent

    Yes

  • Max Torque

    88 Nm

  • Max Brake Force

    260 N

  • Flywheel

    Virtual

  • Mass Inertia

    Variable to 275.6 lbs (125kg)

  • Calibration

    No calibration needed

  • Output

    Speed, cadence, power

  • Accuracy

    <1%

  • Measured Speed

    Yes

  • Measured Cadence

    Yes

  • Measured Power

    Yes

General

Jump to...
  • Height

    46.1" (1170mm)

  • Dimensions

    54.7 x 29.5" (1390 x 750 mm)

  • Weight

    110 lbs (50kg)

  • UPC Code

    8714895058252

About Garmin Tacx NEO

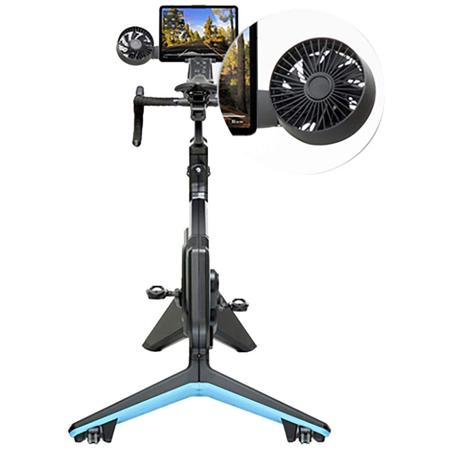

With the Tacx NEO Bike Smart Trainer, revolutionize your indoor cycling experience. This high-tech and innovative smart bike from Garmin, a trusted brand, offers a quiet, powerful, and accurate training tool that makes indoor cycling remarkably realistic and enjoyable.

Experience the dynamic inertia feature that simulates an outdoor ride indoors by controlling mass inertia and compensating for weight, speed, and angle of inclination. This ensures a more realistic ride, enhancing your training experience.

The Tacx NEO Bike Smart Trainer also features a unique Road Feel function, compatible with Tacx software or the Zwift app. This feature allows the trainer to vibrate, simulating the sensation of riding on various road surfaces, such as cobblestone and gravel, for an immersive training session.

The Ultimate Immersion feature mimics the sensation of your chain jumping into a different gear while riding, and when connected to an external power source, the descent simulation accurately replicates a downhill drive.

The Pedal Stroke Immersion feature measures the position of your left and right legs to analyze your pedaling technique, aiding in the development of a more effective stroke.

Track your performance and progress with reliable, consistent measurements - no calibration needed. This includes power, speed, and cadence, measured accurately within 1%.

The well-balanced design of the Tacx NEO Bike Smart Trainer ensures maximum stability, even during the most explosive sprints, up to 2,200 watts. Train on realistically simulated inclines up to a 25% gradient to get the most out of your intense workouts.

The combination of NEO smart technology and the internal design of the Tacx NEO Bike Smart Trainer results in one of the most silent indoor bike trainers available.

Customize this bike to your liking by adjusting the pedal, saddle, (tri) handlebar, bar tape, and crank lengths. It can even be set according to the exact settings of your road or tri bike.

The Tacx NEO Bike Smart Trainer communicates via BLUETOOTH Smart technology and ANT+ FE-C protocol, making it compatible with a number of popular training apps such as TrainerRoad and Zwift.

In stand-alone mode, the trainer simulates a flat road; the faster you ride, the higher the resistance. Connect the Tacx NEO Bike Smart Trainer to multiple devices simultaneously, so you can enjoy Tacx software and track your performance on your Garmin bike computer at the same time.

Enjoy a library filled with more than 100 high-quality, real-life videos that let you experience the rush of riding the steep hills of the Alps or the cobblestone roads of Milan with the Tacx Training Software. Take advantage of structured training plans, designed for your fitness level to help you meet your goals.

The Tacx NEO Bike Smart Trainer features a 4.5" display and has USB chargers so you can power up your devices. Built-in interactive fans are automatically controlled by your power and heart rate, keeping you cool during your workout.

In conclusion, the Tacx NEO Bike Smart Trainer is a sleek, stylish, and modern addition to any home gym or training space. Train your way with this innovative and high-tech indoor cycling tool.

Garmin Tacx NEO Features

  • Rides so real, you might just forget you're indoors
  • Make gains, not noise, with this super silent trainer
  • See how you measure up with power and pedal stroke analysis
  • Climb that leaderboard with your favorite apps, including Zwift and Tacx
  • Feel the rumble and crunch of simulated cobblestones and gravel

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • High-tech indoor smart bike trainer for a realistic and immersive cycling experience
  • Dynamic inertia feature simulates outdoor riding indoors for enhanced training
  • Unique Road Feel function compatible with Tacx software or Zwift app for varied surface simulation
  • Pedal Stroke Immersion analyzes pedaling technique for improved efficiency
  • Customizable settings including pedal, saddle, handlebar, & crank lengths for personalized comfort
  • Bluetooth Smart technology and ANT+ FE-C protocol for compatibility with popular training apps

What's in the box:

  • Garmin Tacx NEO Bike Smart Trainer
  • Fans
  • Tablet Mount
  • Saddle
  • Handlebars
  • 2x USB Chargers (Front)
  • Sweat Cover
  • Ciro Bottle Cage
  • Bottle
  • Tacx Towel
  • 1 Month Tacx Premium Software
  • 1 Month Zwift Membership Software Trial
  • (Pedals and Tablet Not Included)
  • Garmin 1 Year Limited Warranty
