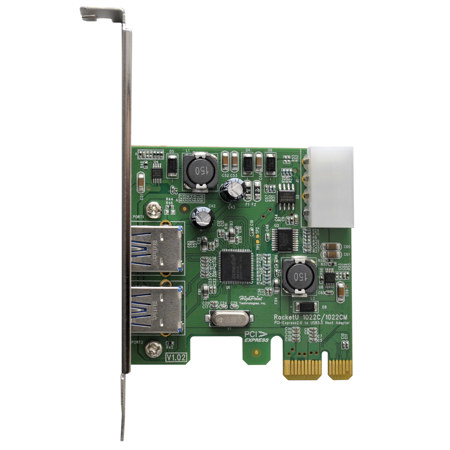

HighPoint RocketU 1022C Dual-Port USB 3.0 SuperSpeed PCIe 2.0 Host Bus Adapter, 5Gb/s Transfer Bandwidth

SKU: HIRU1022C

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

HighPoint RocketU 1022C Specifications

  • Interface

    PCIe 2.0 x1

  • Ports

    2 x USB 3.0 type A connectors (female)

  • Transfer Bandwidth

    5 Gb/s

  • Compatibility

    Optimized for USB 3.0 storage devices
    Backwards compatible with USB 2.0 and 1.1

  • Supports

    Hot-swap and hot-plug

  • Compliance

    With Extensible Host Controller Interface (xHCI) specification

  • OS Support

    Windows 8, 7, 2008, Vista
    Linux kernel v2.6.31 and later

  • Requirements

    Standard 4-pin Molex 8981 power connector (female). This connector type is the same used for standard SATA hard drives

  • Dimensions (L x H x W)

    2.68 x 2.57 x 0.06" / 6.81 x 6.53 x 0.15cm

  • UPC Code

    643653102235

About HighPoint RocketU 1022C

HighPoint RocketU 1022C: Industry's best Cost/Performance USB 3.0 upgrade for PC's. This 2nd generation, 2-port PCIe 2.0 SuperSpeed USB 3.0 HBA delivers 5Gb/s performance and is fully compliant with industry standard USB 2.0/3.0 storage devices and peripherals.

• PCI-E 2.0 x1
• 2x USB 3.0 ports
• Designed for industry standard USB devices
• Supports Windows 7 / Server 2008 & later (PC's only) and Mac OS X 10.9 & later

Supports Any Industry Standard USB Device
The RocketU 1022C is an all-in-one, USB 3.0 connectivity solution for any PCIe capable desktop and workstation PC's. In addition to high-performance storage devices, the RocketU 1022C's Next-Generation USB 3.0 architecture supports industry standard USB 2.0 and 3.0 peripherals, such as device hubs, card readers and interface devices.

Simple, Affordable USB 3.0 Upgrade
The RocketU 1022C's two type-A ports have are optimized for USB 3.0 hard drives and SSD's and can support a wide-range of applications including portable/removable storage, storage expansion, personal media libraries and backup solutions. The RocketU 1022C was designed with maximum compatibility in mind and can be easily installed into any free PCIe2.0 or 1.0 x1, x4, x8 or x16 slot. The RocketU 1022C is fully compliant with the XHCI specification and is natively supported by Windows 8 and Linux distributions that utilize kernel v2.6.31.

What's in the box:

  • HighPoint RocketU 1022C Dual-Port USB 3.0 SuperSpeed PCIe 2.0 Host Bus Adapter
  • Software CD
  • Quick Installation Guide
  • Low Profile Bracket
  • HighPoint 1 Year Warranty
