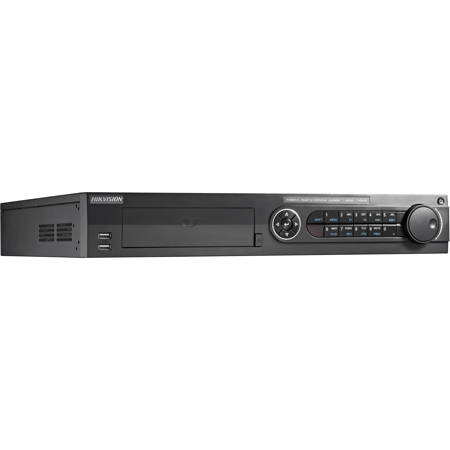

Hikvision TurboHD 3.0 8-Channel 3MP Tribrid DVR with 1TB HDD
See all Hikvision items

Hikvision TurboHD 3.0 8-Channel 3MP Tribrid DVR with 1TB HDD

SKU: HV308HHIF4N1

This item is no longer available.

Recommended Alternatives

See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Hikvision TurboHD 3.0 DVR Specifications

Video/Audio Input

Video/Audio Input

Jump to...

  • Video Compression

    H.264+/H.264

  • Analog video Input

    8-channel
    BNC interface (1.0 Vp-p, 75Ohms), supporting coaxitron connection

  • HDTVI Input

    3MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz

  • AHD Input

    720p/25Hz, 720p/30Hz

  • CVBS Input

    Support

  • IP video Input

    2-ch (up to 10-ch)
    Up to 8MP resolution
    H.265/H.264+/H.264

  • Audio compression

    G.711u

  • Audio Input

    4-ch, RCA (2.0 Vp-p, 1kOhms)

Video/Audio Output

Jump to...

  • CVBS Output

    1-ch, BNC (1.0 Vp-p, 75Ohms)

    Resolution:
    PAL: 704 x 576, NTSC: 704 x 480

  • HDMI1/VGA Output

    1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • HDMI2 Output

    1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

  • Encoding Resolution

    3MP/1080p/720p/WD1/4CIF/VGA/CIF

  • Frame Rate

    Main stream:
    3 MP at 15fps
    1080p/720p/WD1/4CIF/VGA/CIF at 25fps (P)/30fps (N)

    Sub-stream:
    WD1/4CIF at 12fps
    CIF/QVGA/QCIF at 25fps (P)/30fps (N)

  • Video Bit Rate

    32Kbps to 10Mbps

  • Audio Output

    2-ch, RCA (Linear, 1kOhms)

  • Audio Bit Rate

    64Kbps

  • Dual Stream

    Support

  • Stream Type

    Video, Video & Audio

  • Synchronous Playback

    8-ch

Network Management

Jump to...

  • Remote Connections

    128

  • Network Protocols

    TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP

Hard Disk

Jump to...

  • SATA

    4x SATA interfaces

  • eSATA

    Support

  • Capacity

    Up to 6TB capacity for each disk (1TB HDD preinstalled)

Disk Array

Jump to...

  • Array Type

    RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

  • Number of Arrays

    16

External Interface

Jump to...

  • Two-way Audio Input

    1-ch, RCA (2.0 Vp-p, 1kOhms) (Independent)

  • Network Interface

    2x RJ45 10M/100M/1000M self-adaptive Ethernet interface

  • USB Interface

    Front Panel: 2x USB 2.0
    Rear Panel: 1x USB 3.0

  • Serial Interface

    RS-232, RS-485 (full-duplex), Keyboard

  • Alarm in/out

    16/4

General

Jump to...

  • Power Supply

    100 to 240 VAC

  • Consumption

    Without HDD: <= 45W

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working Humidity

    10 to 90%

  • Dimensions (WxDxH)

    445 x 390 x 70mm (17.52 x 15.35 x 2.76")

  • Weight

    Without HDD: 11 lbs (4.99kg)

Other

Jump to...

  • UPC Code

    842571106398

About Hikvision TurboHD 3.0 DVR

Appearance Design
• Typical chassis design to guarantee the low noise and environmental protection of the device
• Front slot of DVD-R/W for more convenient installation and maintenance

Video Input and Transmission
• Connectable to HDTVI, AHD and analog cameras
• Up to 10-ch 8MP IP cameras input
• Long distance transmission over UTP and coaxial cable

Compression and Recording
• H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
• Full channel recording at up to 3MP resolution
• Supports POS triggered recording and POS information overlay

Video Output
• Simultaneous HDMI1 and VGA output at up to 1920 x 1080 resolution and independent HDMI 2 output at up to 4K (3840 x 2160) resolution
• Independent CVBS output improves compatibility at the most possibility

Storage and Playback
• Four SATA interfaces (1TB HDD preinstalled)
• Hot-swappable HDD supporting RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10 storage scheme
• 8-ch synchronous playback
• Smart search for efficient playback
• Supports playback by main stream or sub-stream for IP cameras
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function
• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• VQD (Video Quality Diagnostics)

Network & Ethernet Access
• Hik Cloud P2P & HiDDNS (Dynamic Domain Name System) for easy network management
• Two gigabit Ethernet network interfaces

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hikvision TurboHD 3.0 8-Channel 3MP Tribrid DVR with 1TB Preinstalled HDD
  • IR Remote Control
  • Hikvision 3 Year Parts and Labor Warranty
