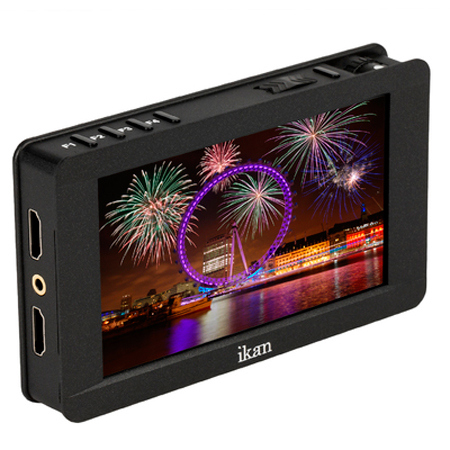

Ikan 5" 4K Signal Support & Touchscreen HDMI On-Camera LCD Field Monitor with Canon LP-E6 & Sony L Battery Plates, 1920x1080

DH5e
The successor to the popular DH5 is here! The DH5e keeps what made the original great: it's small, lightweight and has great image quality. In addition, it now features 4K and Ultra HD support as well as an intuitive touch screen that allows for "pinch to zoom" pixel to pixel. The DH5e is the perfect monitor for those who need an easy-to-use lightweight on-camera monitor such as gimbal operators or shooters that are always on the go.

• 1920 x 1080 Full HD LCD Panel
• 4K & Ultra HD Support via HDMI
• Pinch to Zoom Pixel to Pixel Function
• Histogram and Audio Meters
• 3.5mm Audio Output
• Image Flip
• Includes Canon E6 & Sony L Battery Plates

Full HD and Touch Capability
The Full HD 1920 x 1080 panel on the DH5e is amazingly clear, packing 440 pixels per inch. The touch capability is new for the DH5e. Now you can easily and intuitively zoom in and out of your shot with the pinch-to-zoom gesture. You can also get a quick glance at your menu settings and features with an easy tap on the screen.

Right Tools for the Right Shot
The DH5e is equipped with all of the necessary software features to create the perfect shot: false color, peaking, zooming, guides, as well as histogram & audio meters. It also features image flip so you can adjust the monitor according to your needs.

Inputs and Outputs
It's incredibly easy to set your HDMI input and output signals on the DH5e. A headphone jack and audio meter display helps you make sure audio levels are optimally set.

Peaking
iKan monitors are equipped with Monochrome Peaking features which highlight the desired focus area in a bright, red outline. The operator adjusts the focus control until the red indicator outlines on the desired area are razor sharp, indicating optimal focus. For the best results, be sure the subject is properly exposed.

Movable pixel to pixel
The 1:1 pixel-to-pixel mapping allows the video professional to emphasize on individual chosen elements in the shot. This feature is essential for capturing optimum detail.

DSLR Scaling
The DSLR Scaling function enables users to extend their DSLR camera's HDMI video output to any option of four: Normal, 3:2, 16:9 or Full Screen f convenience made simple.

Underscan
Underscan constrains the size of your image so the monitor shows everything the camera is seeing.
