Ikan 5" 4K Support HDMI EVF LED Monitor Kit with Canon LP-E6 Battery Plate and Cage with Viewfinder

SKU: IAEVF50KIT

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2019-01-15T12:31:08

Rated 1 out of 5

Great Monitor, Terrible Loupe

The VL35 monitor itself is great. It's chalk-full of handy features and the latency is unnoticeable. Unfortunately, this loupe quickly fogs up from the warmth of your face and the adhesive on the metal monitor edge surround (which this loupe magnetically attaches to) failed in under an hour of usage. The adhesive couldn't handle the weight of the loupe. As a viewfinder, it's a fail.

David M.

Ikan Monitor Kit Specifications

  • Screen Size

    5"

  • Resolution

    1920 x 1080

  • Response Time

    20ms

  • Aspect Ratio

    16:9

  • Backlight

    LED

  • Brightness

    450 cd/m2

  • Build Material

    Heavy Duty Plastic & Aluminum

  • Color Depth

    16.7 Million

  • Color System

    PAL/NTSC/SECAM (Auto-Detected)

  • Contrast Ratio

    1000:1

  • Input Voltage

    DC 7V - 24V

  • Inputs and Outputs

    HDMI

  • Pixel Pitch

    0.01925 x 0.05775mm

  • Power Consumption

    6W

  • Supported Video Signals

    HDMI:
    720x480i & 720x480p at 59.94, 60Hz
    720x576i at 50Hz
    1280x720p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
    1920x1080i at 50, 59.94, 60Hz
    1920x1080psf at 24, 25, 29.97, 30Hz
    1920x1080p at 23.97, 24, 25, 29.94, 30, 50, 59.94, 60Hz
    3840x2160p at 24, 25, 30Hz
    4096x2160p at 24Hz

  • Viewing Angle

    160 deg. horizontal/160 deg. vertical

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Dimensions

    5.5 x 3.2 x 0.7" (13.97 x 8.13 x 1.78cm)

  • Weight

    Monitor: 0.2 lbs (0.09kg)
    Cage: 0.76 lbs (0.34kg)

  • UPC Code

    847983025091

About Ikan Monitor Kit

EVF50-KIT

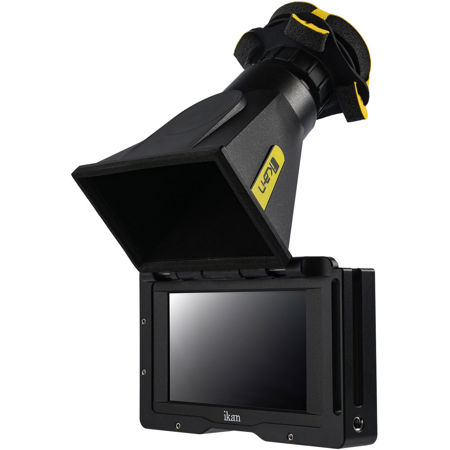

The EVF50-KIT takes the popular DH5e monitor and makes it even better. This kit adds an aluminum form-fitting cage with a built-in high quality viewfinder. The cage adds protection for the monitor as well as additional 1/4-20 mounting points and cable locks. The viewfinder is able to easily flip up and includes a Bluestar Ultrasuede eye cushion that provides function and comfort. The monitor supports 4K and includes a super sharp 1920x1080 screen with HDMI inputs and outputs.

• 1920 x 1080 Full HD LCD Panel
• DCI 4K & Ultra HD Support via HDMI
• DH5e with Cage and Viewfinder Kit
• Form Fitted Aluminum Cage
• High Quality Viewfinder with Diopter
• Pinch to Zoom Pixel to Pixel Function
• Histogram and Audio Meters
• 3.5mm Audio Output
• Image Flip
• Includes Canon E6 Battery Plate

Stronger Yet Lightweight
The EVF50-KIT includes a high quality, formfitting, machined aluminum cage. The cage is light and adds very little weight, keeping the DH5e monitor slim and portable.

More Flexibility

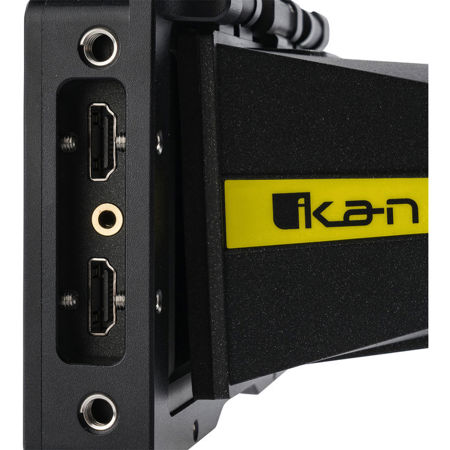

The cage also adds more flexibility to the DH5e. It adds an additional four 1/4"-20 mounting points and cable locks for the HDMI connectors.

Clearer Picture
The viewfinder included in the kit has a high quality diopter that allows the user to get the sharpest image out of the DH5e monitor. The viewfinder is securely attached to the cage via a hinge that allows you to quickly flip it out of the way when you don't want to use it.

A Better Eye Cushion
The EVF50-KIT includes a Bluestar Ultrasuede eye cushion for better comfort and performance. Made in Canada, Bluestar eye cushions have been a world leader in the camera viewfinder eye cushion market since 1984.

Recommended For
• Event Photography
• Filmmakers
• First AC's
• Landscape Photographers

What's in the box:

  • Ikan DH5e Monitor
  • Canon LP-E6 Battery Plate
  • AC Adapter
  • Bluestar Eye Cushion
  • Monitor Cage with Viewfinder
  • Screen Cleaning Wipe
  • Screen Protection Film
  • Sunhood
  • Ikan 1 Year Warranty
