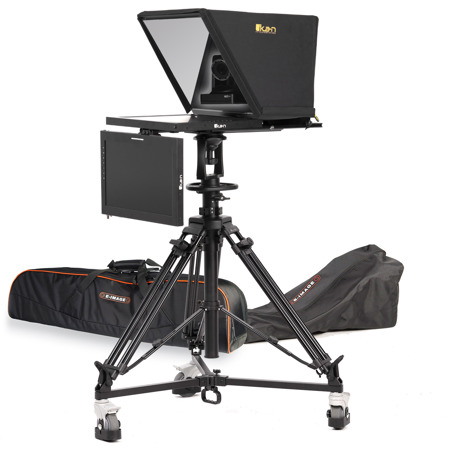

Ikan 19" Professional High Bright Teleprompter with Pedestal, Dolly Turnkey, SDI Talent Monitor and OTTICA 20x PTZ Camera

SKU: IAPT4900P11 MFR: PT4900-PTZ-TM-PEDESTAL-OT
Earn VIP Reward Points

Key Features

  • Get professional results with this 19" teleprompter, perfect for studio or on-location shoots.
  • The included PTZ camera integrates seamlessly, offering remote control and versatile angles.
  • Achieve smooth camera movements with the included pedestal and dolly system for stability.
  • Enjoy a clear, bright display with the 19" SDI monitor, ensuring easy readability on set.
  • This teleprompter package includes PrompterPro software for script management & control.
  • Durable build and included carrying bags make this teleprompter system easily portable.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ikan PTZ Camera Teleprompter Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    PrompterPro Software
    Talent Monitor Mount
    Talent Monitor Attachment
    Rod Clamp with Screws
    PTZ Teleprompter Hood
    50-Degree Glass Frame Holder Bracket
    PTZ Riser
    1/4-20" Screw (Long)
    1/4-20" Screw (Short)
    Lens Cap
    Power Adapter
    RS232 Cable
    IR Remote Controller
    Wall Mounting Bracket
    Mounting Screws
    RS485 Connector
    Cascade Cable
    User Manual
    (Hard Case Not Included)

19" Teleprompter

Jump to...
  • Build Material

    Chassis: Anodized Aluminum
    Rods: Carbon Fiber

  • Riser Plate Height

    Low: 2.06" (52.5mm)
    Medium: 3.74" (95mm)
    High: 5.31" (135mm)
    DSLR: 6.29" (160mm)

  • Length of Rods

    15 x 400mm

  • Reading Range

    25' (7.62m)

  • Beamsplitter Ratio

    70/30

  • Beamsplitter Shape

    Rectangular

  • Beamsplitter Material

    Glass

  • Tripod Mounts

    11x 1/4" -20 Female
    9x 3/8" -16 Female

  • Height of Teleprompter

    16" (406mm)

  • Weight

    With Low Plate: 22.70 lbs (10.2kg)
    With Medium Plate: 23.10 lbs (10.4kg)
    With High Plate: 23.23 lbs (10.5kg)
    With DSLR Plate: 22.60 lbs (10.2kg)

PTZ Teleprompter Add-on Kit

Jump to...
  • Material

    Hood: Polyester Canvas
    Riser Plates: Aluminum
    Glass Frame Holder: Aluminum

  • Angle of Glass Frame Holder

    50 Degree

19" SDI Teleprompter Monitor

Jump to...
  • Build Material

    Aluminum Chassis

  • Aspect Ratio

    4:3

  • Maximum Brightness

    1000 cd/ sq. m

  • Screen Size (Diagonal)

    19" (48.26cm)

  • Mount

    VESA 100mm

  • Video Inputs

    SDI, HDMI, VGA

  • Input Voltage

    DC 12v / 4A

  • Power Consumption

    30W

  • Native Resolution

    1280 x 1024

  • Viewing Angle

    160 Degree (H) / 170 Degree (V)

  • Image Flip

    Horizontal: Yes
    Vertical: Yes

  • Dimensions

    17 x 15 x 1" (43.1 x 38.1 x 2.54cm)

  • Weight

    6 lbs (2.72kg)

Pedestal

Jump to...
  • Build Material

    Aluminum

  • Bowl Size

    100mm

  • Payload Capacity

    44 lbs (19.95kg)

  • Height Range

    40.2 - 72.6" (102 - 184.5cm)

  • On-Shot Stroke

    12.6" (32cm)

  • Steering Ring Diameter

    7.67" (195mm)

  • Weight

    34.8 lbs (15.8kg)

100mm Flat Base

Jump to...
  • Diameter

    4.52" (115mm)

  • Weight

    15.68 oz (444g)

Soft Carrying Case

Jump to...
  • Material

    Waterproof 1680D Nylon

  • Dimensions

    External: 42.5 x 8.7 x 9.4" (107.9 x 22 x 23.87cm)
    Internal: 40.9 x 6.3 x 8.3" (103.8 x 16 x 21cm)

  • Weight

    6.2 lbs (2.81kg)

  • Build Material

    Legs: Aluminum
    Wheels: Rubber
    Screws: Steel

  • Footprint Diameter

    39.4" (100cm)

  • Cable Guard Diameter

    4.92" (12cm)

  • Height

    6.7" (17cm)

  • Radius

    19.7" (50cm)

  • Wheel Width

    3.9" (100mm)

  • Lockable Wheels

    Yes

  • Payload

    132.3 lbs (60kg)

  • Weight

    15 lbs (6.8kg)

PTZ Camera

Jump to...
  • Color

    Black

  • AV

    F1.6 - F3.5

  • Aspect Ratio

    16:9

  • Audio Compression Format

    AAC/MP3/G.711A

  • Audio Input Interface

    A-IN: Double Track 3.5mm Linear Input

  • Audio Output

    Yes

  • Auxiliary Power

    Yes

  • Base Connection Type

    1/4"-20 Screw Mount

  • BLC

    ON/OFF

  • Communication BPS

    2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

  • Control Interface

    RS232 (input & output), RS485

  • Control Protocol

    IP VISCA, VISCA, PELCO-D, PELCO-P, ONVIF; Baud Rate:115200/9600/4800/2400bps

  • Digital Resolution

    1920x1080p

  • Digital Noise Reduction

    2D & 3D DNR

  • Effective Pixels

    16: 9, 2.07 megapixel

  • Focusing

    Input Audio Format

  • Input Audio Format

    1/8"

  • Input Current

    1A (Maximum)

  • Input Voltage

    DC12V +/-10%

  • Inputs

    1/8" Audio, RS-232 Cascade, DC12V

  • Interface

    3G-SDI, HDMI, LAN(NDI), RS232 (In & Out), RS485, A-IN

  • Modulation Mode

    OFDM

  • Motor Type

    Step-Driving Motor Mechanism

  • Signal to Noise Ratio

    >55dB

  • Optical Zoom

    20x f=5.5-110mm

  • Output Voltage

    DC12V

  • Pan Control Speed

    0.1 -60 Degree /sec

  • Pan Rotation

    +/-170 Degree

  • Port Network

    RJ45

  • Power Adapter

    Input: AC110V-AC220V. Output: DC12V/1.5A

  • Power Consumption

    12W (Max) / CONTROLLER: 0.6 W (Max)

  • Power Interface

    HEC3800 Outlet (DC12V), 2-pin Waterproof Aerial Socket (RF Model)

  • Power Supply

    DC12V +/-10%

  • Preset Number

    255 presets (10 presets by Remote Controller)

  • Preset Speed

    Pan: 60 Degree /sec, Tilt: 30 Degree /sec

  • Remote Control

    IR Remote Included

  • Resolution

    1080p 60fp

  • Sensor

    1/2.8" HD CMOS sensor

  • Serial Port

    RS422, RS232

  • Storage Temperature

    14 Degree F - 140 Degree F (-10 Degree C - 60 Degree C)

  • Storage Humidity

    20%-95%

  • Tilt Control Speed

    0.1-30 Degree /sec

  • Tilt Rotation

    30 Degree -+90 Degree

  • Video Compression Format

    H.264, H.265

  • Viewing Angle

    3.3 Degree -54.7 Degree

  • Voltage

    DC12V

  • White Balance

    Auto / Manual/ One Push/2400K - 7100K

  • Working Humidity

    20%-80%

  • Working Temperature

    14 Degree F - 122 Degree F (-10 Degree C - 50 Degree C)

  • Dimensions (W x H x D)

    5.9 x 6.6 x 5.9" (150 x 167.5 x 150mm)

  • Weight

    3.08 lbs (1.40kg)

  • UPC Code

    847983033836

About Ikan PTZ Camera Teleprompter

After extensive research and development, we present the 19" Professional High Bright Teleprompter with Pedestal, Dolly Turnkey, SDI Talent Monitor, and OTTICA 20x PTZ Camera. This professional-grade teleprompter is a comprehensive solution for all your broadcasting and presentation needs.

Engineered for professional use, this teleprompter features a high-quality 19" monitor with a brightness of 1000 cd/sq. m, ensuring clear visibility under any lighting conditions. The 70/30 20"-wide beamsplitter glass offers a generous 25' reading range, making it ideal for a wide variety of settings.

The teleprompter's unique design allows for extensive left-right panning, accommodating a broad range of PTZ cameras. The base system can be easily adjusted forward and backward, eliminating the need for counterweights and simplifying the camera mounting process.

The teleprompter's hood is lightweight and fully encloses the PTZ camera, allowing unrestricted movement and quick access to the camera's inputs and outputs. The hood's drawstring closure eliminates light leaks, ensuring optimal image quality.

The package includes a 19-inch widescreen 3G-SDI Talent Monitor, conveniently mounted below the teleprompter. This allows on-camera talent to view their presentations live. The monitor supports 3D-SDI, HDMI, and VGA inputs, and offers a native resolution of 1920 x 1080 HD.

The OTTICA PTZ Video Camera, included in the package, features a 1/2.8" CMOS sensor and a 5.5-110mm varifocal lens with 20x zoom. This camera captures high-resolution videos at 1080p at 60fps and supports a variety of connectivity options.

The teleprompter comes with a sturdy pedestal and a dolly turnkey for easy movement and positioning. The pedestal's pneumatic column offers an on-shot stroke of 12.75" and supports up to 44 pounds. The dolly features 4" locking rubber wheels and has a capacity of 132.3 pounds.

This professional teleprompter is delivered in reusable custom cut foam for safe transportation and storage. This comprehensive teleprompting solution is designed to meet the demanding needs of professionals in the broadcasting and presentation industry.

Ikan PTZ Camera Teleprompter Features

  • 19" Teleprompter Features
  • Includes OTTICA 20x Full-HD PTZ Camera with NDI|HX, HDMI, 3G-SDI
  • 19" Teleprompter System Designed to Use OTTICA PTZ Camera
  • Teleprompter Monitor Includes Composite (BNC), HDMI, and VGA Inputs
  • Talent Monitor Includes 3G-SDI, HDMI, and VGA Inputs
  • Hood Completely Encloses OTTICA PTZ Camera Allowing it to Move Freely
  • Includes 1000-Nit High-bright Monitor
  • Easy Balancing with Adjustable Base
  • Comes in Reusable Foam for Easy Transport
  • PrompterPro Software for MAC & PC is FREE with This Teleprompter
  • On-Shot Stroke of 12.75" with Easy-Adjust Latch
  • Pedestal Height Range: 41" - 73"
  • EI-7004B Dolly with Locking Wheels and Cable Guard
  • Includes Carrying Bags for Pedestal Legs & Dolly
  • PTZ Camera Features
  • NDI|HX2 Compatibility with POE (Power Over Ethernet)
  • 1/2.8" CMOS Sensor
  • 1080/60P Resolution/Frame Rate
  • Fast, Stable, & Accurate Auto-focus
  • Silent PTZ Motor Mechanism
  • 5.5-110mm Varifocal Lens with 20x Zoom
  • HDMI, SDI, Ethernet, RS-232, RS-485, & Audio-in Connectivity
  • 2D/3D Noise Reduction
  • Purchase of Additional NDI HX License NOT Required

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Get professional results with this 19" teleprompter, perfect for studio or on-location shoots.
  • The included PTZ camera integrates seamlessly, offering remote control and versatile angles.
  • Achieve smooth camera movements with the included pedestal and dolly system for stability.
  • Enjoy a clear, bright display with the 19" SDI monitor, ensuring easy readability on set.
  • This teleprompter package includes PrompterPro software for script management & control.
  • Durable build and included carrying bags make this teleprompter system easily portable.

What's in the box:

  • Pedestal
  • 100mm Bowl with Flat Base
  • Pedestal Carrying Bag
  • Dolly
  • Dolly Carrying Bag
  • Bottom Plate
  • Base
  • Glass Frame Holder Bracket
  • 19" 70/30 Teleprompter Glass
  • Hood Attachment Frame
  • Glass Holder
  • 2x 15mm Rod Clamps
  • 2x 15mm Rods
  • 19" Teleprompter Monitor
  • AC Adapter with Cord
  • Teleprompter Glass
  • 19" SDI 16:9 Teleprompter Monitor with Tally
  • OTTICA 20x PTZ Camera
  • (See the Specification Section for Additional Included Items)
  • Ikan 1 Year Limited Warranty
