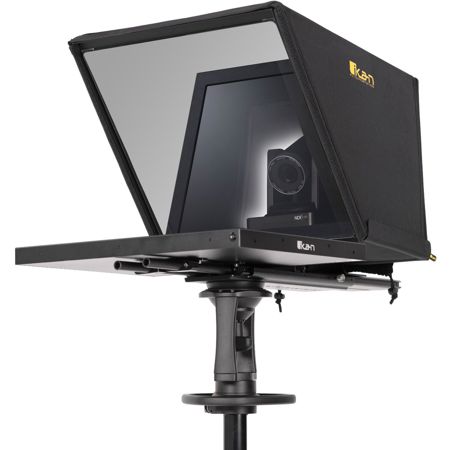

Ikan 19" Professional High Bright SDI Teleprompter with OTTICA 20x PTZ Camera

PT4900S-PTZ-OTTICA
The 19" PTZ Teleprompter from Ikan is a professional solution for teleprompting with PTZ cameras. The package provides an extra-wide hood assembly to allow considerable movement of the camera within the wide beam splitter glass. The PTZ Teleprompter features a 19" 1000 cd/ sq. m monitor, 70/30 20"-wide beamsplitter glass, and a 25' reading range. The teleprompter is designed for use with a wide range of PTZ cameras, as the wide beamsplitter provides for a wide amount of left-right panning. The teleprompter includes a base system that can be easily shifted forward and backwards, which enables mounting the camera to the prompter without requiring counterweights.

PTZ Teleprompting
The Ikan PTZ Teleprompter system is a unique PTZ teleprompting system that enables the PTZ camera's pan, tilt and zoom capabilities while still behind the reflective teleprompter glass. You can easily pan the camera between multiple people reading from the same script.

Fully Enclosed PTZ Hood
The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows it's movement to remain unconstrained. The hood includes an opening in the back that gives you quick access to the PTZ cameras inputs and outputs. The opening can be closed with a drawstring which removes the possibility of any light leaks.

Extreme Clarity
The high quality 70/30 Made-in-America teleprompter glass provides the perfect balance of reflection and pass-through without distorting the image. With 1000 nits the prompting image will always be crisp and visible whether you're under the sun or studio lighting.

Easy-To-Balance
The PT4900S-PTZ includes a long rail which allows you to easily balance your entire teleprompter setup. The teleprompter base can be easily moved forwards and backwards until the perfect balance is set.

Large Range of Camera Compatibility
Our PTZ Teleprompter includes a large canvas hood, making it compatible with the vast majority of PTZ cameras.

Comes In Reusable Foam
The professional teleprompter is comes in reusable custom cut foam which will help keep the kit safe and organized when you set it up or break it down. The custom cut foam can also be re-purposed to perfectly fit in the SKB iSeries 3i-2217-12BE Waterproof Hard Case

Note: Hard Case Not Included

Camera Performance
Advanced ISP processing algorithms provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. The OTTICA supports H.265/H.264 encoding which makes motion video fluent and clear even with less than ideal bandwidth conditions. A full-bandwidth NDI 1080p x60 fps video data stream uses approximately 100Mbps, whereas a video data stream using NDI|HX will only require around 10Mbps (approximately 1/10th of full-bandwidth NDI). Using NDI|HX will expand the camera's compatibility with different types of network options.

Superb High-Definition Image
The OTTICA employs 1/2.8 inch high-quality CMOS sensor and supports resolutions up to 1920 x1080 with frame rates up to 60 fps. Supported outputs include HDMI,3G-SDI, wired LAN (NDI|HX), and wireless LAN interfaces. The 3G-SDI will work up to 100 meters in distance with transmission at 1080p60 format.

Variable Optical Zoom Lens
The camera includes a 5.5-110mm f/1.6-3.5 varifocal lens with a viewing angle ranging from 3.3 Degree to 54.7 Degree and offers 20x optical zoom.

Auto Focus Technology
The OTTICA employs an autofocus algorithm that ensures the len's focusing performance is lens fast, accurate, and stable.

Low Noise and High SNR
The Low Noise CMOS effectively ensures the camera's high SNR. Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Quiet PTZ
By adopting a high accuracy step-driving motor mechanism, the OTTICA performs smoothly and quietly even when moving quickly to any position.

Low-Power Sleep Function
The OTTICA supports a low-power sleep/wake up function. The consumption is lower than 500mW while in sleep mode.

RS-232 Cascade Function
The OTTICA supports RS-232 cascade function which is convenient for installing. One cable is included in the box.

255 Presets Positions
You can program up to 255 preset camera positions (10 presets by IR remote).

Control Camera Over IP Through Web Client
After using "Advanced IP Scanner" to find the OTTICA's IP address, input the camera IP address in the URL bar of your browser and click the "Enter" button to proceed to the Web Client login page. This web client will allow you to control various parameters including pan, tilt, zoom, exposure, shutter speed, focus, color temperature, sound, preset positions, compression format, resolution, bitrate, framerate, noise reduction, character displays, and many more.

Supports Multiple Control Protocols
VISCA, IP VISCA, PELCO-D, PELCO-P, ONVIF protocols are supported and can also be automatically recognized right out of the box. The OTTICA can be directly controlled from either within software like OBS, using NDI|HX, or from the Web Client using the camera IP address in a browser tab.

Wall Mount Included
The included OTTICA PTZ Camera Wall Mount will support the OTTICA camera using a 1/4"-20 screw on the bottom. Attaching the camera and mount directly to the wall will provide you with a sturdy long-term mounting solution.

Note: The bottom piece is flat and ensures support for any sized camera with a 1/4"-20 thread.
