Maintenance Cartridge
Driver/Software CD for Windows
PosterArtist Lite CD
Power Cord
User Manual
Inkjet
Color
5x Individual Cartridge
Pigment-Based (Black, Cyan, Magenta, Matte Black, Yellow)
1x Black
1x Matte Black
1x Cyan
1x Magenta
1x Yellow
Canon PFI-110, Canon PFI-310, Canon PFI-710
15,360 Nozzles (Total)
Color: 2400 x 1200 dpi
Yes
Standard: HP-GL/2, HP-RTL, JPEG, PDF
+/- 0.1%
5 pL
22 x 34" (55.9 x 86.4cm): 20 Seconds (Max Speed)
Manual Feed, Media Cutter
Roll Width: 6 to 44" (15.2 to 111.8cm)
Sheet Width: 6 to 44" (15.2 to 111.8cm)
Roll Length: 6 to 59' (182.9 to 1798.3cm)
Sheet Length: 6 to 63" (15.2 to 160cm)
Roll: 2.8 to 31.4 mil (0.1 to 0.8mm)
6.7" (17cm) (Outer)
USB-B (USB 2.0), RJ45, USB-A
Wi-Fi
802.11b/g; Single-Band (2.4 GHz)
USB Port
500 GB
2 GB (RAM)
Windows
macOS
59 to 86 Degree F (15 to 30 Degree C)
10 to 80%
4.3"
Color Touchscreen LCD
AC Adapter (Included)
None
100 to 240 VAC, 50 / 60 Hz
116 W (Maximum)
2 W (Standby)
0.3 W (Off)
51 dBA
35 dBA
6.9 BA (Power)
ENERGY STAR
63 x 46 x 39" (160 x 116.8 x 99.1cm) (Fully Assembled)
252 lbs (114.3kg) (with Stacker)
Setting the Next Standard of Engineering

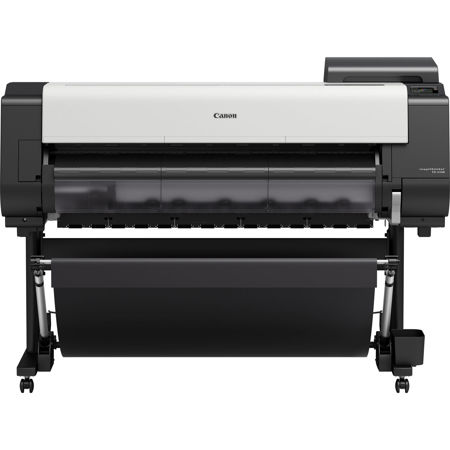

Canon delivers the imagePROGRAF TX Series of Large-format Printers- the solution to help you capitalize on the emerging market trends and help lead your organization on the path to success.
Core Technologies
Canon continues to innovate and build on its award-winning technology, year after year. These advances have allowed Canon to design solutions to help improve productivity, maximize use, and enhance security features in a seamless system that can put you at the forefront of the large-format printing industry.
Built for today's culture- where more is asked with less- Canon offers multifaceted advanced solutions for the high production, technical document inkjet printer market.
Advantages Built Right In
The imagePROGRAF TX Series printers offer innovative technologies integrated in their ink system, print head, and mechanical platform. These printers satisfy the needs of the high-volume CAD and low volume LED plotter markets with print quality, usability, security features, and print speeds up to 190 D-sized prints per hour.
Lucia TD Pigment Ink
The imagePROGRAF TX Series printers have a 5-color LUCIA TD Pigment ink system. This ink produces fine lines and sharp text, even on non-inkjet coated paper. This ink helps provide a balance between bleed resistance, black density, and water resistance not found in dye ink. Choose from 160 ml, 330 ml, or 700 ml ink tanks.
Intelligent Media Handling
The TX Series now has a new Intelligent Media Roll with an advanced sensor technology system. This allows the printer to detect roll width, length and media type, reducing the amount of time it takes to load media into the printer.
Security Features
The imagePROGRAF TX Series Large format Printers come equipped with security features designed to help protect confidential information.
Features include:
Encrypted Hard Drive
Enhanced Printer Setting Initialization Function
Secure Disk Erase (Conforms to U.S. Department of Defense standard DoD5220.22-M)
IPsec Support
SSL/TLS
802.1x Authentication
DHCP
SNMPv3
Secure Encrypted PIN Printing
Second Roll Option
The optional Multifunction Roll System can be used in two different ways. You can load a second roll of media, which can be of a different type and size, so you can automatically switch between media types and sizes, without interrupting your workflow. Or the unit can be operator-configured as a bi-directional Take-up unit. For production printing, two rolls of media up to 650 ft. in length each (6.7" diameter) can be loaded on the printer, giving you the ability to produce over 4,700 sq. ft. of continuous printing on the TX-4100.
Media Output
The TX Stacker can stack up to 100 sheets of ARCH C, ARCH D, or ARCH E page sizes for increased productivity. For those who don't require this stacker, offers choices on how prints will be outputted based on the type and quantity being produced.
Sub-Ink Tank System
As always, the Sub-Ink Tank System is standard with all imagePROGRAF printers for uninterrupted printing. This feature allows for virtually all the available ink in a tank to be used before having to replace it, helping to eliminate any wasted ink.
Printing Solutions
A wide variety of standard software is available to help streamline and optimize workflows in large-format printing environments.
Direct Print Plus
This job submission software gives users the ability to upload, download, and print files, including:
Easily collate sets
Accurate errors displayed preprint to save ink/media
Nesting
Now displays job progress
Up to 60% faster processing speeds than Direct Print & Share
Drag-and-drop files to a Hot Folder
Batch Print Files-PDF, JPEG, TIFF, and HP-GL/2 supported
Direct USB Printing
Both PDF and JPEG files can be directly printed on the imagePROGRAF TX Series devices. Simply input the thumb drive into the USB port on the printer, preview the image on the operation panel, and print!
CPP Publisher Select
Manage printer status, media, and ink availability and receive operator warnings when ink is low or the media roll is empty.
Wi-Fi
Wi-Fi connectivity is standard for the imagePROGRAF TX Series printers.
Unified Printer Driver
A unified Windows driver enables users to print to any imagePROGRAF TX Series device, without the need to install additional drivers for each printer model. This simplifies installation of multiple devices within the same environment.
AutoCAD Optimized Printer Driver
This optimized printer driver helps enable accurate printing of data created with AutoCAD.
Accounting Manager
This helps track actual ink and media usage and costs for up to 50 devices.
Poster Artist Lite
This poster-creation software for PCs makes it easy to create posters, signs, and banners from hundreds of customizable templates and stock images. Users just follow the simple, step-by-step, on-screen instructions-no design experience is required!
Canon's Print Plug-In For Microsoft Office
Makes printing enlargements from Microsoft Excel, Word, and PowerPoint as easy as printing to a desktop printer! The on-screen wizard simplifies settings, scaling, and paper size selection.
Media Configuration Tool
Register new or custom media types and update the list of Canon GENUINE media.
