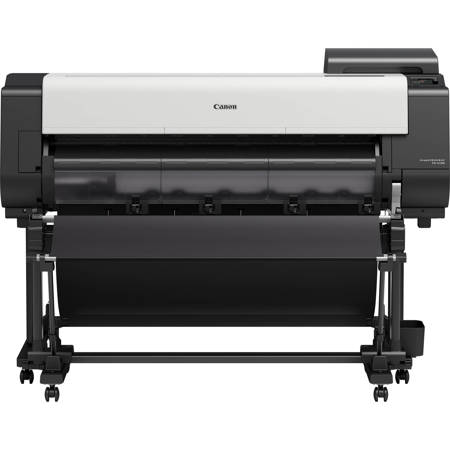

Canon imagePROGRAF TX-4100 44" Wireless Color Large-Format Inkjet Printer with Stacker

SKU: ICATX4100S MFR: 5516C001
Earn VIP Reward Points

Key Features

  • Achieve stunning, high-resolution prints with 2400 x 1200 dpi color inkjet technology.
  • Print quickly with speeds up to 20 seconds for 22 x 34" prints, boosting your productivity.
  • Enjoy versatile media handling with roll and sheet support up to 44" for various projects.
  • Experience seamless connectivity with USB, Wi-Fi, and Ethernet options for easy access.
  • This wide-format printer uses pigment-based inks for vibrant, long-lasting professional prints.
  • The Canon TX-4100 includes a user-friendly 4.3" color touchscreen LCD for easy operation.
See More Product Details
Special Order Item?Estimated to Ship: 09/04/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Canon imagePROGRAF TX-4100 Specifications

Additional Included Items

Additional Included Items

Jump to...
  • Additional Included Items

    Maintenance Cartridge
    Driver/Software CD for Windows
    PosterArtist Lite CD
    User Manual

Printer

Jump to...
  • Printing Technology

    Inkjet

  • Color Type

    Color

  • Configuration

    5x Individual Cartridge

  • Ink Type

    Pigment-Based (Black, Cyan, Magenta, Matte Black, Yellow)

  • Ink Color

    1x Black
    1x Matte Black
    1x Cyan
    1x Magenta
    1x Yellow

  • Compatible Cartridges

    Canon PFI-110, Canon PFI-310, Canon PFI-710

  • Number of Nozzles

    15,360 Nozzles (Total)

  • Print Resolution

    Color: 2400 x 1200 dpi

  • Borderless Printing

    Yes

  • Printer Language

    Standard: HP-GL/2, HP-RTL, JPEG, PDF

  • Line Accuracy

    +/- 0.1%

  • Minimum Ink Droplet Size

    5 pL

  • Print Speed (By Size)

    22 x 34" (55.9 x 86.4cm): 20 Seconds (Max Speed)

Printer Media Handling

Jump to...
  • Media Handling

    Manual Feed, Media Cutter

  • Media Sizes

    Roll Width: 6 to 44" (15.2 to 111.8cm)
    Sheet Width: 6 to 44" (15.2 to 111.8cm)
    Roll Length: 6 to 59' (182.9 to 1798.3cm)
    Sheet Length: 6 to 63" (15.2 to 160cm)

  • Media Thickness

    Roll: 2.8 to 31.4 mil (0.1 to 0.8mm)

  • Media Roll Diameter

    6.7" (17cm) (Outer)

Connectivity

Jump to...
  • Inputs/Outputs

    USB-B (USB 2.0), RJ45, USB-A

  • Wireless

    Wi-Fi

  • Wi-Fi

    802.11b/g; Single-Band (2.4 GHz)

  • Direct Printing

    USB Port

  • Hard Drive

    500 GB

  • Internal Memory

    2 GB (RAM)

  • OS Compatibility

    Windows
    macOS

Environmental

Jump to...
  • Operating Temperature

    59 to 86 Degree F (15 to 30 Degree C)

  • Operating Humidity

    10 to 80%

General

Jump to...
  • Display Size

    4.3"

  • Display Type

    Color Touchscreen LCD

  • Power Source

    AC Adapter (Included)

  • Battery

    None

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Power Consumption

    116 W (Maximum)
    2 W (Standby)
    0.3 W (Off)

  • Max Acoustic Noise

    51 dBA
    35 dBA
    6.9 BA (Power)

  • Certifications

    ENERGY STAR

  • Dimensions (W x H x D)

    63 x 46 x 47" (160 x 116.8 x 119.4cm) (Fully Assembled)

  • Weight

    278 lbs (126.1kg) (with Stacker)

  • UPC Code

    013803340037

18 Accessories for Canon imagePROGRAF TX-4100 44" Wireless Color Large-Format Inkjet Printer with Stacker

  • All Accessories (18)
  • Ink (9)
  • Printer Accessories (5)
  • Software (1)
  • Monitors (2)
  • Printers & Scanners (1)

About Canon imagePROGRAF TX-4100

Where precision meets innovation, the imagePROGRAF TX-4100 44" Wireless Color Large-Format Inkjet Printer with Stacker stands as a testament to Canon's commitment to pushing the boundaries of large-format printing. This high-quality, reliable printer is designed to cater to the needs of high-volume CAD and low-volume LED plotter markets, delivering superior print quality, enhanced usability, and robust security features.

Engineered with advanced technologies, the imagePROGRAF TX-4100 is equipped with a 5-color LUCIA TD Pigment ink system, ensuring sharp text and fine lines even on non-inkjet coated paper. Its high resolution of 2400 x 1200 dpi guarantees high-quality prints, while the wide paper width of up to 44 inches makes it a versatile choice for printing large documents or images.

The printer's Intelligent Media Handling feature, powered by advanced sensor technology, automatically detects roll width, length, and media type, significantly reducing media loading time. This durable printer also boasts a second roll option with the optional Multifunction Roll System, allowing for automatic switching between media types and sizes without disrupting your workflow.

Security is a top priority with the imagePROGRAF TX-4100. It comes equipped with a range of security features, including an encrypted hard drive, IPsec support, SSL/TLS, and secure encrypted PIN printing, designed to protect confidential information.

The TX Stacker can stack up to 100 sheets of various page sizes, enhancing productivity. The Sub-Ink Tank System ensures uninterrupted printing by allowing virtually all the available ink in a tank to be used before replacement, minimizing ink wastage.

The imagePROGRAF TX-4100 also offers a suite of standard software to optimize workflows in large-format printing environments. Direct Print Plus, Direct USB Printing, CPP Publisher Select, and AutoCAD Optimized Printer Driver are just a few of the tools available to streamline your printing process.

Wi-Fi connectivity is standard for the imagePROGRAF TX-4100, and a unified Windows driver simplifies the installation of multiple devices within the same environment. With the ability to print on a variety of media types, including coated and uncoated paper, canvas, and vinyl, the imagePROGRAF TX-4100 is a testament to Canon's dedication to versatility and innovation in the world of large-format printing.

Canon imagePROGRAF TX-4100 Features

  • 36" Large Format printer
  • Direct USB Thumb Drive Printing
  • Supports borderless printing
  • 5-Color LUCIA TD pigment based ink system
  • Print up to 190 D-sized prints per hour
  • Intelligent media handling
  • Custom Roll Width 6- 44" with micro margin technology
  • Comes with TX stacker

Warranty Information

This product has a limited warranty of 3 months.

Product Documents

User Manual

Key Features

  • Achieve stunning, high-resolution prints with 2400 x 1200 dpi color inkjet technology.
  • Print quickly with speeds up to 20 seconds for 22 x 34" prints, boosting your productivity.
  • Enjoy versatile media handling with roll and sheet support up to 44" for various projects.
  • Experience seamless connectivity with USB, Wi-Fi, and Ethernet options for easy access.
  • This wide-format printer uses pigment-based inks for vibrant, long-lasting professional prints.
  • The Canon TX-4100 includes a user-friendly 4.3" color touchscreen LCD for easy operation.

What's in the box:

  • Canon imagePROGRAF TX-4100 44" Wireless Color Large-Format Inkjet Printer
  • TX Stacker
  • Stand
  • PFI-310MBK Matte Black Pigment Ink Tank (330ml)
  • PFI-310C Cyan Pigment Ink Tank (330ml)
  • PFI-310M Magenta Pigment Ink Tank (330ml)
  • PFI-310Y Yellow Pigment Ink Tank (330ml)
  • PFI-310BK Black Pigment Ink Tank (330ml)
  • PF-06 Print Head
  • 2/3" Core Media Spool with Adapters
  • Power Cord
  • Tools & Screws
  • (See the Specification Section for Additional Included Items)
  • Canon 90 Day Limited Warranty
