HiTi CS-220e Dye-Sub Color Transparent Card Printer, 300dpi Print Resolution, 100 Cards Input Capacity, Up to 180/1400 Color/Black Cards per Hour, USB

SKU: IHICS200ETC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Anna G : Hello does this printer also print ok white pvc ? And do any of the ribbon come with uv ?ANDREW R : The manufacturer states the following: "Accepted Card Type - PVC or polyester cards with polished PVC finish"
Shopper : Why Did You Choose This?AQUILES B : Work

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

HiTi CS-220e Specifications

  • rinting Technology

    Dye-sublimation (direct-to-card)

  • Maximum Resolution

    300dpi

  • Ink Palette

    CMYK

  • Print Speed

    Color (YMCKO): Up to 180 cards/hour
    Black: Up to 1400 cards/hour

  • Input Buffer

    64MB

  • Duplex Printing

    With optional Flipper Module

  • Card Sizes

    2.13 x 3.37" / 53.98 x 85.60 mm (CR-80 ISO 7810, ID-1 format)

  • Thickness

    9.8-39.4 mil / 0.25-1.0 mm

  • Borderless Printing

    Yes

  • Capacity

    Input: 100 cards (30 mil / 0.76 mm)
    Output: 50 cards (30 mil / 0.76 mm)

  • Print Media

    Full panel YMCKO 400 roll (ribbon only)
    Half panel YMCKO 560 roll (ribbon only)
    Monochrome resin black 1000 roll (ribbon only)
    YMCKOK 330 (ribbon only)

  • Computer Interface

    USB

  • System & Software Requirements

    Mac OS X 10.5-10.9 (Intel-based only)
    Windows 2000, XP, Vista, or 7 (32- or 64-bit)

  • Status Display

    LCD monitor

  • Front Panel Controls

    4 buttons, 2 LEDs

  • Operating Environment

    59-89.6deg.F / 15-32deg.C
    20-75% relative humidity, non-condensing

  • Dimensions (W x H x D)

    7.8 x 13.9 x 8.0" / 19.8 x 35.4 x 20.4cm

  • Weight

    10.8lb / 4.9kg

  • UPC Code

    6928404399060

About HiTi CS-220e

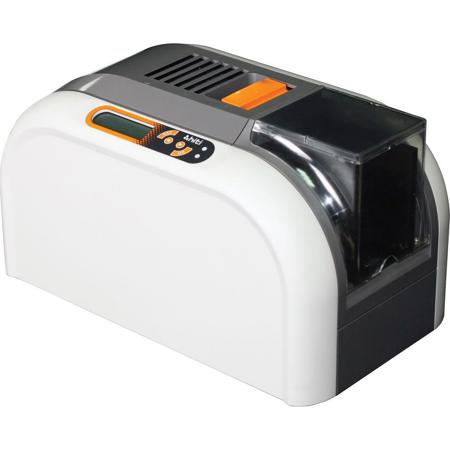

The HiTi CS-220e Dye-Sub Color Transparent Card Printer permits fast, convenient printing of standard ISO 7810 ID-1-sized cards with the unique ability to print on fully transparent card types. Edge-to-edge printing is possible at a rate of up to 180 cards per hour in color, or 1400 cards per hour in monochrome, with a resolution of 300 dpi. The printer's dye sublimation printing process requires no ink cartridges and little maintenance for maximum uptime and efficiency.

Included with the printer is the Card Desiree CS software, which facilitates editing and designing templates and other components for cards. To further extend the capabilities of the CS-220e, a range of optional accessory encoding modules are available, as well as a Flipper module to permit automatic duplex printing.

Dye-sub card printer capable of printing on transparent cards.

Fast printing permits up to 1400 monochrome cards to be made per hour, or up to 180 color cards per hour, with a print resolution of 300 dpi.

Dye-sub process requires no inks and, instead, uses YMCKO or monochrome ribbons for greater uptime and printing efficiency.

An integrated LCD monitor and four-button control system provides direct control over printing functions.

Card Desiree CS software is included for designing ID templates, editing ID photo elements, laying out print settings, managing batch printing jobs and connecting to databases from a Mac or Windows computer.

Optional encoding modules are available as well as a Flipper module for duplex printing, an Ethernet connection module and a high-capacity input hopper.

HiTi CS-220e Features

  • Transparent Card Printer
  • Color: Up to 180 Cards/Hour
  • Black: Up to 1400 Cards/Hour
  • Resolution: 300 dpi
  • One-Sided Printing, Dual-Sided Possible
  • Input Capacity: Up to 100 Cards
  • Print Status LCD Monitor
  • Optional Encoding Modules Available
  • For and Mac and Windows
  • Includes Template Editing Software

Key Features

  • Transparent Card Printer
  • One-Sided Printing, Dual-Sided Possible
  • Print Status LCD Monitor
  • Optional Encoding Modules Available
  • For and Mac and Windows
  • Includes Template Editing Software

What's in the box:

  • HiTi CS-220e Dye-Sub Color Transparent Card Printer
  • Card Output Tray
  • Weight Module
  • USB Cable
  • Power Adapter
  • Power Cord
  • Dust Eliminator with Cleaning Roller
  • Cleaning Kit
  • CardDesiree CS Software CD-ROM
  • HiTi 1 Year Limited Warranty
