Ikan Helia HF150B 150W 4" Bi-Color LED Fresnel 3-Light Kit with DMX Control

SKU: IAHF150B3PTK MFR: HF150B-3PT-KIT
Earn VIP Reward Points

Key Features

  • Achieve stunning cinematic looks with the Helia HF150B's 150W bi-color LED Fresnel, offering versatile lighting.
  • Experience precise color accuracy with a high CRI of 97 and TLCI of 98, perfect for professional video production.
  • Easily control your light beam from 20 to 70 degrees, ideal for spotlighting or broad illumination on set.
  • Enjoy robust and durable construction, ensuring reliable performance for all your demanding film and photo shoots.
  • Power up effortlessly with AC power, providing consistent brightness for extended creative sessions.
  • Integrate seamlessly into your existing setup using DMX control for advanced lighting automation and effects.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Ikan Helia HF150B Specifications

General

General

Jump to...
  • Color Temperature

    Bi-Color

  • Specific Color Temperature

    N/A

  • Color Temperature Range

    3200 to 5600K

  • Beam Angle

    20 to 70 Degree

  • Lens Diameter

    4" (10.16cm)

  • Water Resistance/IP Rating

    N/A

  • Country of Origin

    China

Light Fixture

Jump to...
  • Fixture Type

    Fresnel

  • Number of Heads/Lights

    3

  • Photometrics

    Flood Beam at 3200K:
    294 fc / 3172 Lux at 3.3' (1m)
    130 fc / 1410 Lux at 4.9' (1.5m)
    42 fc / 454 Lux at 9.8' (3m)
    19 fc / 212 Lux at 14.8' (4.5m)

    Flood Beam at 5600K:
    365 fc / 3937 Lux at 3.3' (1m)
    162 fc / 1750 Lux at 4.9' (1.5m)
    48 fc / 526 Lux at 9.8' (3m)
    23 fc / 251 Lux at 14.8' (4.5m)

  • Dimming

    Built-In Dimmer / DMX
    10 to 100%

  • Cooling System

    Fan

  • Photometrics (Contd.)

    Spot Beam at 3200K:
    160 fc / 1732 Lux at 3.3' (1m)
    71 fc / 770 Lux at 4.9' (1.5m)
    213 fc / 2300 Lux at 9.8' (3m)
    96 fc / 1040 Lux at 14.8' (4.5m)

    Spot Beam at 5600K:
    2008 fc / 21,622 Lux at 3.3' (1m)
    892 fc / 9610 Lux at 4.9' (1.5m)
    242 fc / 2610 Lux at 9.8' (3m)
    96 fc / 1040 Lux at 14.8' (4.5m)

  • Color Accuracy Standard

    CRI: 97
    TLCI: 98

  • Power Source

    AC Power (Cable Included)

  • Voltage

    120 VAC, 60Hz

  • Power Consumption

    150W

  • Inline Switch

    No

  • Frequency

    60Hz

Mounting

Jump to...
  • Mounting

    Yoke, Supports Standard Stage Clamps

  • Front Accessory Mount

    Proprietary

  • Fixture Mounting

    1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

  • Umbrella Mount

    No

  • Yoke Type

    Manually-Operated Yoke

Battery

Jump to...
  • Battery Connection

    N/A

  • Battery Quantity

    N/A

Connectivity

Jump to...
  • Mobile App Compatible

    N/A

Physical Details

Jump to...
  • Dimensions

    19 x 12 x 6" (48.3 x 30.5 x 15.2cm) (Fixture) (Each)

  • Weight

    10 lbs (4.54kg) (Fixture) (Each)

  • UPC Code

    847983035946

Models
<b>New Arrival</b> - Ikan Helia HF150B 150W 4" Bi-Color LED Fresnel 3-Light Kit with DMX Control
$3,499.00

New Item

Expecting delivery from Manufacturer. Order now, your card will not be charged until it is ready to ship

Ikan Lyra LBF60-POE 3.25" 60W Bi-Color Fresnel LED 3-Light Kit w/Ultra60 Switch
$3,499.00

Ships from Manufacturer

Usually ships within 2-5 Days. Delivery is subject to availability.

Ikan Lyra LBF60Z-POE Bi-Color LED Fresnel 3-Light Kit with PoE++ Ultra60 Switch
$3,799.00

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

Kit Style3 Light Kit3 Light Kit3 Light Kit
Power SourceACDCDC
MountManual YokeStand MountManual Yoke
Color TemperatureBi-ColorBi-ColorBi-Color
Battery ConnectionNoneNoneNone
Color Temperature Range3200-5600K2700-6500K2700-6500K

About Ikan Helia HF150B

Helia HF150B
The Helia HF150 is a 4" Fresnel light with an 150W output and a bi-color range from 3200K to 5600K. Equipped with an 8-leaf barn door, the Helia HF150 provides enhanced light control, allowing you to sculpt your lighting with ease. Whether you prefer on-device control or DMX512 functionality, the Helia HF150 offers options to suit your workflow.

Bi-Color Fresnel
The 4" Fresnel lens gives professionals better control over the use of the light. With its bi-color capabilities, the HF150 can help color match in all production situations. The Helia has a very consistent color across all temperatures giving it high CRI and TLCI ratings.

Beam Angle
The Helia's 20 to 70 degree beam angle can easily shift from flood to spot, making it very helpful in any production. The light can be substituted for a 500 watt hot light.

Included Accessories
The 4 inch Fresnel comes with barn doors and a gel frame to help you get the look that you want.

DMX In and Out
The DMX 5-pin in and out connectors give you better control over the light.

Ikan Helia HF150B Features

  • Kit includes 3 light and 1 SKB Rolling Hard Case
  • 4" Fresnel
  • Bi-Color Light adjustable from 3200K-5600K
  • 8-Leaf Barndoors
  • High CRI and TLCI
  • 500 watts equivalency
  • 20 to 70 Degree Beam Angle
  • DMX512 In and Out (5 Pin)
  • Fixture DMX Profile is available on ETC EOS and Carallon Database

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve stunning cinematic looks with the Helia HF150B's 150W bi-color LED Fresnel, offering versatile lighting.
  • Experience precise color accuracy with a high CRI of 97 and TLCI of 98, perfect for professional video production.
  • Easily control your light beam from 20 to 70 degrees, ideal for spotlighting or broad illumination on set.
  • Enjoy robust and durable construction, ensuring reliable performance for all your demanding film and photo shoots.
  • Power up effortlessly with AC power, providing consistent brightness for extended creative sessions.
  • Integrate seamlessly into your existing setup using DMX control for advanced lighting automation and effects.

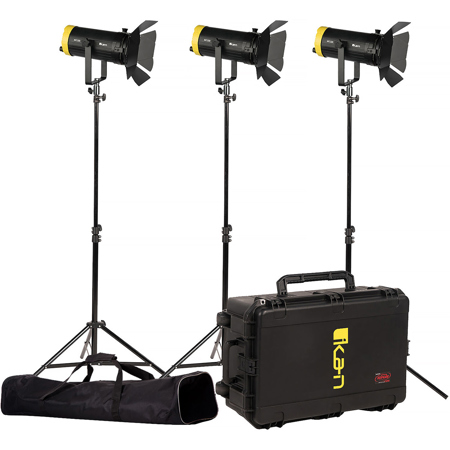

What's in the box:

  • 3x Ikan Helia HF150B 150W 4" Bi-Color LED Fresnel Light
  • 3x 8-Leaf Barndoors
  • 3x Gel Frame
  • 3x Power Cord
  • 3x Light Stand
  • Light Stand Bag
  • SKB Rolling Hard Case
  • Ikan 1 Year Limited Warranty
