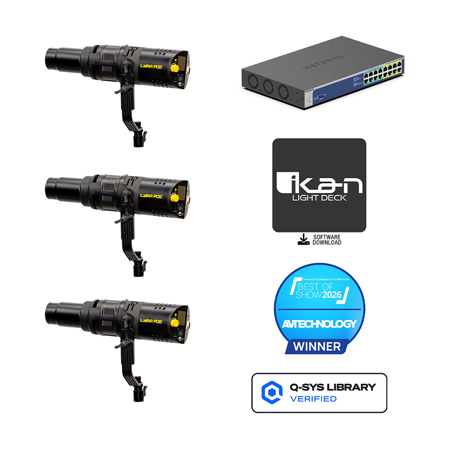

Ikan Lyra LBERS60-POE 2.25" 60W Bi-Color Ellipsoidal LED 3-Light Kit with 21 Degree Lens and PoE++ 380W Ultra60 Unmanaged Switch

The Ikan LBERS60-POE-21 is a PoE-powered ellipsoidal light designed for podcast studio, broadcast, corporate AV, and house of worship applications. Unlike panel or Fresnel fixtures, an ellipsoidal produces a sharp, shapeable beam making it ideal for clean spotlighting on podiums, presenters, signage, and architectural features. It also accepts gobos for projecting company logos, church branding, or custom patterns onto walls, floors, and backdrops.

The light utilizes a single Ethernet (RJ45) cable for both power and DMX control via PoE++. This bundle ships with the 21-degree lens, delivering a tight, focused beam well-suited for medium-to-long-throw applications such as highlighting pulpits, lecterns, presenters, and signage from ceiling-mounted positions. A 30-degree lens is available separately for wider coverage on the same fixture. High-CRI (97) LEDs deliver exceptional color accuracy across a 2700K-6500K range, and seamless Q-SYS integration is supported through the Q-SYS Designer Plugin. (Patented)

The interchangeable 21-degree lens delivers a tight, evenly lit circular beam with a crisp, defined edge. The kind of clean, controllable spot you simply can't get from a panel or Fresnel. That precision makes the LBERS60-POE ideal for highlighting pulpits and altars in houses of worship, spotlighting presenters and podiums in corporate broadcast and conference rooms, accenting signage, set pieces, and scenery in theatrical productions, and washing columns and architectural features in lobbies and event spaces. Wherever you need a defined pool of light that lands exactly where you want it, the ellipsoidal delivers a uniform circle with no soft falloff or hot spots.

Four independent cutting blades (shutters) let you reshape the beam from a clean circle into a square, rectangle, triangle, or any four-sided shape your scene calls for. Slide them in to keep light off a back wall, frame a presenter without spilling onto the set, or match the edge of a podium, lectern, or piece of scenery. The entire shutter assembly rotates around the lens barrel, so you can angle the frame to follow whatever you're lighting-giving installers and lighting designers tight, professional control over where the light lands and, just as importantly, where it doesn't.

Power Over Ethernet PoE++
The LBF60Z-POE-WH is powered using a single Ethernet cable (Cat6 RJ45 24AWG or better). This eliminates the necessity for additional wiring or power outlets, saving both time and reducing installation costs on obtaining permits or hiring electricians to install new ceiling outlets. The LBF60Z-POE supports IEEE 802.3bt Type 3 PoE++, ensuring efficient power delivery over the network.

Note: IEEE 802.3bt Type 3 switch is required

Artnet and sACN Compatibility
The LBF60Z-POE supports both Artnet and sACN DMX protocols. A single RJ45 cable can be used for both power and DMX. This versatility empowers users to integrate the light seamlessly into their preferred DMX control systems.

Q-SYS Designer Plugin Integration
Easily integrate Ikan Lyra PoE Lights into your Q-SYS ecosystem with the Q-SYS plugin, available in the Q-SYS Designer Asset Manager. This plugin allows users to control light intensity and color temperature for up to 256 lights per universe directly within Q-SYS Designer. Designed for streamlined workflows in spaces like conference rooms, the plugin eliminates the need for specialized lighting knowledge. With the press of a button, all lights can be set to optimal, pre-configured settings, ensuring a seamless and user-friendly experience for any environment. If using plugin version 1.1 please update light's firmware to Web GUI 1.2 or higher.

Web GUI
Utilize the web GUI to modify Artnet & sACN settings, including DMX addresses and universes, as well as access configured IP address settings.
