Ikegami VF700W High Performance 7" Viewfinder/Field Monitor
See all Ikegami items

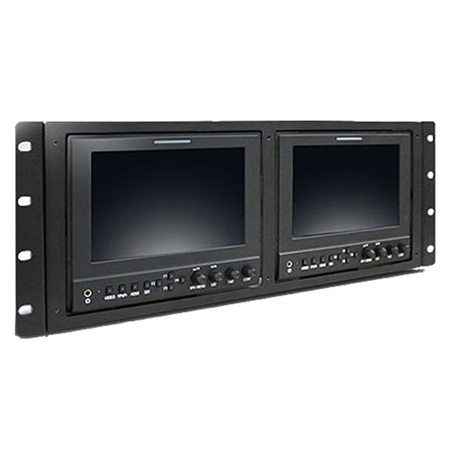

Ikegami VF700W High Performance 7" Viewfinder/Field Monitor with Dual Rack Mount Adapter, 1280x800

SKU: IKVF700WRM2
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ikegami VF700W Specifications

  • Panel

    7" IPS

  • Resolution

    1280 x 800 Pixels

  • Pixel Pitch

    0.11775mm x 0.11775mm

  • Display Area

    150.72mm x 94.2mm

  • Brightness

    400 cd/m2

  • Contrast

    800:1

  • Aspect Ratio

    16:9

  • Backlight

    LED

  • Video Interface

    CVBS 1 In, RGB In, HDMI 1 In/Out
    Speaker 1 (built-in) / Ear Phone 1 (built-in)

  • SDI In

    1080p (23.98/24/25/29.97/30/50/59.94/60)
    1080psf (23.98/24/25/29.97/30)
    1080i / 720p (50/59.94/60), 480i (59.94), 575i (50)

  • Functions Assignable in F1-F4

    Center Marker, Screen Marker, Check Field, Color Bar, PIP
    Camera, Flip, Zoom, Pixel-to-Pixel, Freeze Input, H/V Delay
    Under Scan, Peaking, False Color, Exposure, Histogram

  • Environment

    Operating: 0 to 50 deg. C / 32 to 122 deg. F
    Storage: -20 to 60 deg. C / -4 to 140 deg. F

  • Power Requirement

    100VAC to 240VAC (with AC Adaptor, XLR Connector)

  • Power Consumption

    Approx. 11W

  • Dimensions

    191.5 x 152.3 x 41.7mm / 7.54 x 6.00 x 1.64"

About Ikegami VF700W

This 7" monitor uses an IPS panel featuring 178deg./178deg. wide viewing angles and is capable of multi- inputs including 3G-SDI and HDMI input and output. Many of the built-in functions and front assign- able buttons make very convenience to use in the field.

Ikegami VF700W Features

  • 7" IPS 1280 x 800 High Resolution
  • Wide Viewing Angles (178deg.)
  • Video Input : 3G-SDI / HDMI / YPbPr / CVBS
  • Video Output: 3G-SDI / HDMI
  • Brightness 400cd/m 2
  • Contrast 800:1
  • Tally Interface
  • Input Power DC7-24V (XLR Connector)
  • Center & Screen Markers
  • Peaking Filter
  • False Colors
  • Aspect Ratio
  • Underscan
  • PIP & Zoom
  • HV Delay
  • Flip H/V
  • Battery Bracket (AB or V-Mount)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with this 7" Ikegami field monitor, boasting a sharp 1280x800 resolution.
  • Achieve accurate colors on set with this production monitor, thanks to its high-quality IPS panel.
  • The VF700W offers versatile connectivity with HDMI in/out, perfect for diverse video workflows.
  • Use the assignable function keys for quick access to tools like peaking and false color on this monitor.
  • Easily integrate this 7-inch monitor into your rack setup using the included dual rack mount adapter.
  • Trust Ikegami's reliability; this high-performance monitor is ideal for critical video monitoring tasks.

What's in the box:

  • Ikegami VF700W High Performance 7 " Viewfinder/Field Monitor with Dual Rack Mount Adapter
  • Ikegami 1 Year Parts & Labor Limited Warranty
