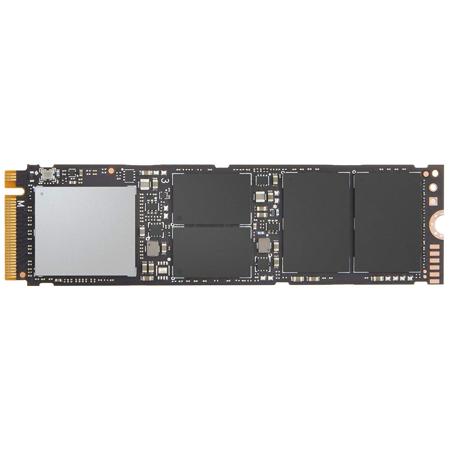

Intel 2TB 760p Series Internal SSD, M.2 80mm, PCIe NVMe 3.0 x4, 3D2, TLC

SKU: INSSDPEKKW2T

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Intel 760p SSD Specifications

Essentials

Essentials

Jump to...
  • Capacity

    2.048TB

  • NAND Flash Memory

    64-layer, TLC, Intel 3D NAND Technology

  • Lithography Type

    3D2 TLC

  • Form Factor

    M.2 22 x 80mm

  • Interface

    PCIe NVMe 3.0 x4

Performance

Jump to...
  • Sequential Read

    Up to 3230MB/s

  • Sequential Write

    Up to 1625MB/s

  • Random Read (8GB Span)

    Up to 340000 IOPS

  • Random Write (8GB Span)

    Up to 275000 IOPS

  • Power

    Active: 70mW
    Idle: 25 mW

Reliability

Jump to...
  • Vibration

    Operating: 2.17 GRMS
    Non-Operating: 3.13 GRMS

  • Shock

    1000 G (Operating and Non-Operating)

  • Operating Temperature Range

    0 to 70 deg. C (32 to 158 deg. F)

  • Endurance Rating

    576 TBW (Lifetime Writes)

  • Mean Time Between Failures (MTBF)

    1.6 million hours

  • Uncorrectable Bit Error Rate (UBER)

    <1 sector per 1015 bits read

Advanced Technologies

Jump to...
  • Enhanced Power Loss Data Protection

    No

  • Hardware Encryption

    AES 256 bit

  • High Endurance Technology (HET)

    No

  • Temperature Monitoring and Logging

    No

  • End-to-End Data Protection

    Yes

  • Intel Smart Response Technology

    Yes

  • Intel Rapid Start Technology

    Yes

  • Intel Remote Secure Erase

    No

General

Jump to...
  • Dimensions (HxWxD)

    2.38 x 22 x 80mm (0.09 x 0.87 x 3.15")

  • Weight

    <10g (0.35 oz)

  • UPC Code

    735858362863

About Intel 760p SSD

Accelerate your PC performance with the optimal PCIe bandwidth of the Intel SSD 760p Series
The Intel SSD 760p Series combines PCIe performance, versatile capacities and high-quality Intel 3D NAND technology to deliver twice capacity, twice the performance and up to 50% of the power consumption than its previous generation - the Intel SSD 600p Series. The Intel SSD 760p features an M.2 thin profile with PCIe Gen3 x4, NVMe interfaces and is ideal for a wide range of devices from desktops to laptops. The SSD is backed by a five-year limited warranty and Intel's world-class quality leadership.

Performance to Handle Multiple Tasks
The SSD 760p is designed to effortlessly manage demanding consumer client applications and easily handle intense multi-tasking. The SSD 760p accelerates platform performance with sequential reads of up to 3,230 megabytes, sequential writes of up to 1625 megabytes per second (MB/s) and random read and write input/output operations per second (IOPS) of up to 340K and 275K, respectively. The SSD 760p enables PC users to experience enhanced efficiency with the applications they care about and up to 6x better performance than SATA SSDs.

3D NAND Delivers 2.048TB Capacity
The SSD 760p is part of the Intel 3D NAND SSD family of products. Built on Intel 3D NAND Technology, these SSDs are designed to transform the economics of storage. The SSD 760p offers capacity points 2.048TB on double-sided M.2, enabling system designers the flexibility to design for thin/light systems or to provide space for other components. The combination of Intel 3D NAND technology and PCIe enables Intel SSDs to push the limits of performance and value.

Performance at Lower Power
The SSD 760p provides extended battery life through low power modes. It reduces idle consumption by >90% compared to a typical hard disk drive, reducing power consumption from watts to milliwatts. When coupled with an 8th generation Intel Core processor-based platform, the advanced power mode settings reduce active and idle power consumption by up to 50% versus the prior generation device (SSD 600p Series).

Quality & Reliability You Can Trust
The SSD 760p is backed by Intel's five-year limited warranty, including Intel's world-class post sales customer support. The SSD 760p also supports AES 256-bit self-encryption to provide protection of critical data stored on the device.

What's in the box:

  • Intel 2TB 760p Series Internal SSD
  • Intel 5 Year Limited Warranty
