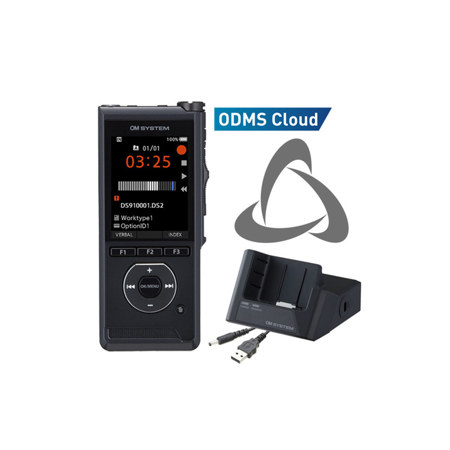

OM SYSTEM DS-9100 2GB Digital Voice Recorder with CR-21 Docking Station

- DS-9100 Digital Voice Recorder -

Professional Dictation, Simplified
The DS-9100 features advanced noise cancellation and 256-bit AES file encryption, streamlining workflow and enhancing dictation management. Its dual microphones prioritize the speaker's voice, using beam forming technology to reduce ambient noise. With a triple-layer studio-quality filter, it ensures precise voice capture while minimizing unwanted sounds, resulting in superior accuracy and improved workflow efficiency.

Intelligent Two-Microphone System
Experience versatile recording with the built-in stereo microphones, providing Beamforming noise reduction, Dictation and Conference modes. Tailor your recording experience further by selecting from three microphone sensitivity options. Opt for High sensitivity for crisp conference recordings, choose Mid for effective dictation, or select Low for optimal up-close recording.

Low-noise microphone unit
The DS-9100 incorporates low noise omni-directional microphones. The built-in shock absorber covers the microphone unit, reducing handling noise from the body.

Beamforming noise cancellation mode
The Intelligent Two-microphone System utilizes the omni-directional microphones, analyzing phase differences from sound sources. Using our unique Audio Beamforming algorithms, the DS-9100 suppresses sound from specific directions, reducing noise from the back and sides significantly, focusing on the speaker during dictation. This dramatically improves sound quality for speech recognition, even in challenging environments.

Dictation mode
For classic dictation of your notes or reports, the main microphone will be recording in an omni-directionality mode so that the recorder can be held in various positions.

Conference mode
Designed for interviews and small meetings, conference recording controls the directionally of the 2 microphones into a 90 Degree layout, which enables high quality recording in a realistic stereo capture. Regardless of where the person speaking is located or the direction of speech, you can clearly capture the information.

Flexible audio recording formats
The DSS format promises effective compression without compromising quality in digital voice capture. The digital speech standard (DSS) allows for quick file editing (insert, overwrite, append, erase/cut) and uses meta information (index, verbal comments, work types, etc.) to facilitate collaboration and automatic processing. PCM format, with its minimal compression, ensures exceptional quality as well as compatibility with a variety of playback tools. Simultaneously, the widely utilized MP3 format serves as an excellent choice for storing consumer audio and enables easy transfer/playback of music on digital audio players.

Noise activated recording with VCVA
The VCVA function efficiently manages memory by pausing recording during quiet intervals and automatically restarting when it detects sound exceeding a preset threshold. This feature optimizes playback efficiency and prolongs recording time.

Index Marks
While recording or playing back, you have the flexibility to insert up to 32 Index Marks into an audio file. These marks act as handy indicators, helping you identify crucial or noteworthy segments of your dictation.

Insert and Overwrite recording modes
Unlock different recording options with the DS-9100. Use Insert mode to seamlessly add recordings into existing audio files without the need for additional addendums. Overwrite mode enables you to record over previous dictation at any chosen point. Lastly, Append mode effortlessly adds a new recording to the end of an existing file. With the addition of the New File creation button, you don't need to start a new recording until you are ready.

Enhanced security
Audio file security is crucial for medical and legal industries due to the sensitive nature of the information they handle. In healthcare, patient confidentiality is paramount to comply with HIPAA regulations, safeguarding patient data from unauthorized access. Legal industries require secure handling of client communications and evidence to maintain attorney-client privilege and uphold the integrity of legal proceedings. Ensuring audio file security protects sensitive information, maintains trust, and prevents legal liabilities.

Encryption
The DS-9100 provides added security with 256-BIT AES encryption when utilized alongside the DSS Pro file format, ensuring user data remains protected from unauthorized access, enhancing confidentiality, and complying with industry standards for secure audio recording.

Note: When used in combination with ODMS Cloud or ODMS R8 On-Premise solutions.

4-digit pin lock
The DS-9100's Device Lock feature secures data with a 4-digit PIN, keeping it inaccessible to unauthorized users. Its data loss prevention function activates a read-only mode when connected to a PC, preventing accidental data copying, enhancing security.

Control and Connectivity
The DS-9100 is designed for easy operation with an intuitive interface and a large color LCD screen. It includes built-in memory for storage, expandability via SD card media for additional capacity, and support for additional microphones and headphones.

Full color screen
The DS-9100 features 2.4 inch TFT color LCD. Featuring a live recording monitor and an easily accessible, intuitive menu system-all at a glance.

4-position slide switch control
Experience effortless dictation with the user-friendly optical slide-switch, enabling you to start, stop, and edit recordings seamlessly without the need to divert your attention to the device.

Recording storage
With 2GB of built-in memory, the DS-9100 also accommodates external SD cards up to 32GB (available separately). Effortlessly transfer your recordings to your PC by utilizing the provided micro-B USB cable.

3.5mm microphone and headphone jacks
Headphones can be connected to monitor or playback your recordings. Additional microphones such as boundary, shotgun or a lavalier can be used for specific situations.

Rechargeable Lithium-ion battery
Benefit from the included Lithium-ion battery, providing an impressive 56 hours of battery life. Recharge the DS-9100 easily by connecting it to a PC or a compatible USB charger.

Author ID & Work Types
The DS-9100 facilitates user identification with Author ID embedded in the audio file header, enabling personalized dictation tracking. It supports multiple work IDs for shared devices, and users can define custom work types such as "case notes" or "patient consultation" for various dictation needs.

Docking station
The CR-21 Docking Station ensures a smooth connection to your PC. When paired with an OM SYSTEM AC Adapter, it efficiently charges the DS-9100 within 2 hours. Additionally, you have the option to connect a footswitch for remote device control, enabling hands-free dictation.

Note: CR-21 Docking Station Sold separately.

Durability
Within the healthcare industry, durability is important. Drops happen; ensuring device functionality post-fall is vital. Alcohol wipes facilitate swift, effective sterilization, maintaining hygiene standards & patient safety.

Resilient in everyday dictation
The DS-9100 showcases a strong and durable design, ensuring its resilience. Rigorous tests have shown its ability to withstand falls of up to 1.5m without impacting recording capabilities.

Alcohol wipe resistance
Thanks to the alcohol resistance coating, the device can be cleaned if used within a medical environment. The following solutions can be used for this purpose in order to disinfect various types of substance.

• Ethanol for disinfection (76.9 to 81.4 v/v%)
• Isopropanol for disinfection (70 v/v%)

Welcome to ODMS Cloud
OM SYSTEM's cloud dictation and transcription solution reflects our dedication to innovation and user-centric design, providing unmatched freedom. Record, share audio files instantly, and access transcriptions effortlessly. It's more than a tool; it's a companion, seamlessly transforming speech into text, anytime, anywhere. Whether on PC, Mac, or smart device, our platform ensures uninterrupted workflow across devices and locations.

- CR-21 Docking Station -
This docking station for the DS-9500, DS-9000 is the professional add-on, which allows you to transfer your dictations via USB or LAN (only supported by DS-9500). Connected with an Olympus AC-Adapter it charges your DS-9500 in half the time than via USB connection (USB: ca. 4 hours). It also provides a connector to your Olympus footswitch to remote control the recorder for hands-free dictation or transcription. The dedicated connector for your voice recorder spare the fragile microUSB connector from being broken easily after several connections.

- F-5AC AC Adapter -
This 5V AC Adapter provides direct power to Olympus docking stations for charging. Compatible Models CR-15 / CR-21
