About JLCooper GangWay4

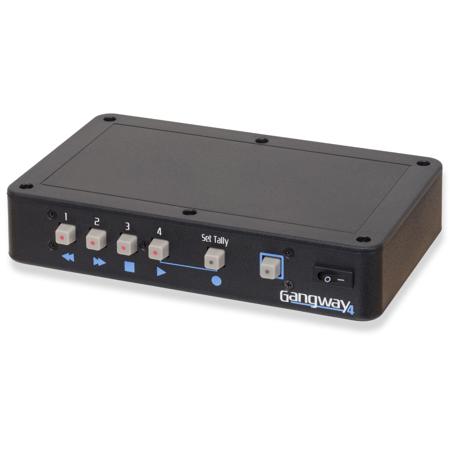

GangWay4 is a compact, 4 port RS-422 Gang Roll Switcher and GPI Trigger Box for controlling up to four video recorders. Connect any RS-422 controller, like VTC1, MCS6 or Transport Pro, with it's unique ability to remotely select GangWay channels. GangWay4 has illuminated buttons for clear indication of enabled channels, "All" button and a Tally Select button. Channel buttons also serve as transport controls, allowing you to control decks right from the front panel.
Controls Most Professional RS-422 File-Based Recorders including; AJA Ki Pro Rack, Ki Pro Ultra, Ultra Plus, Atomos Shogun Studio, BlackMagic Hyperdeck Studio, Hyperdeck Studio Mini, Video Devices Pix 250i, 260i, 270i, Sony XDCAM and more! GangWay4 has 1 RS-422 Input, 4 RS-422 Outputs and GPI I/O on rear panel 9-pin D-Sub connectors. For table top or rack use (1/2 single rack space). See GangWay 16 and GangWay 32 for larger configurations.
JLCooper GangWay4 Features
- Allows a single deck controller to control 4 video decks
- Allows selection of the Tally deck
- Remote port selection from SloMoPro or Transport Pro
- Illuminated front panel buttons can also be used for control routing and deck control
- GPI Inputs for deck transport control
- GPI Outputs for deck status
- Compact half rack enclosure
- Powered from AC mains or 12 volt DC
