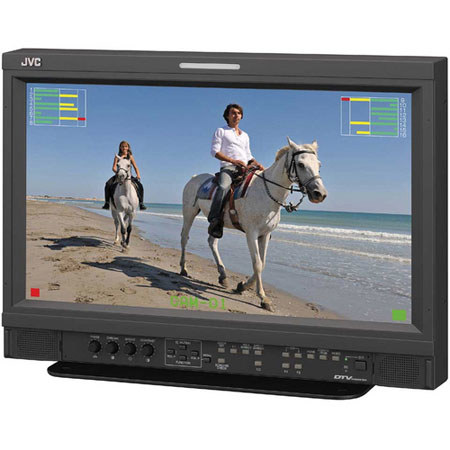

JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor
See all JVC items

JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor, 1920x1080 Resolution, 1000:1 Contrast Ratio, 1W x 2 Speaker Output

SKU: JVDTE21L4U

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JVC DT-E21L4U Specifications

  • Display

    21.5" LCD display (54.6 cm)

  • Aspect Ratio

    16:9

  • Resolution

    1920 x 1080 total pixels

  • Inputs

    (2) HD/SD-SDI on BNC
    (1) HDMI
    (1) Composite on BNC
    (1) Component analog RGB on Mini D-Sub 15-pin
    (1) L/R 3.5mm RCA audio
    (1) RS-485 on 8-pin RJ-45
    (1) RS-232C on 9-pin D-sub
    Make/Trigger: 8-pin RJ-45

  • Outputs

    (1) HD/SD-SDI on BNC (switched / reclocked out)
    (1) Composite loop-through on BNC
    (1) L/R 3.5mm RCA audio
    (1) Monitor audio out
    (1) RS-485 on 8-pin RJ-45

  • Panel Surface

    Non-glare

  • Viewing Angle

    170deg. x 160deg.

  • Contrast Ratio

    1000:1

  • Display Colors

    16.7M

  • Backlight

    Mercury-free LED backlight

  • Power Requirement

    AC 120, 220-240V 50/60 Hz
    DC 12-17V

  • Speaker Output

    1W x 2

  • VESA Standard

    3.93 x 3.93" / M4 x4 (10 x 10 cm)

  • Dimensions (W x H x D)

    515 x 352.1 x 181mm / 20.2 x 13.8 x 7.12"

  • Weight

    7.7kg/6.2kg

  • UPC Code

    046838049057

About JVC DT-E21L4U

The JVC DT-E21L4U 21.5" Multi-Format HD LCD Monitor consumes 20-30% less power than conventional CCFL monitors do. Other than cost and environmental efficiency, reduced consumption also makes possible for 12VDC support to be added for field use. Inputs and outputs include HD/SD-SDI and HDMI. Resolution is full HD at 1920 x 1080, contrast ratio is 1000:1 and color processing is at 10 bit. LED backlighting provides improved contrast and black level. The monitor has Built-In Speakers and 16-channel embedded audio with a level indicator.

Additional features consist of low latency, area / center / safety markers, LTC and VITC time code support and an In-Monitor Display function (IMD) based on TSL's UMD protocol version 4.

JVC DT-E21L4U Features

  • HD-SDI and HDMI compatible
  • Full HD Resolution with 1920 x 1080 panel
  • Composite Video In/Out, Component Video In, Analog RGB Video In, HDMI In, HD/SD-SDI In/Out
  • 3-Way stand for versatile installation
  • Mercury-free LED Backlight
  • IMD (In Monitor Display) function based on TSL's UMD protocol ver. 4.0
  • 10bit color processing
  • 16ch embedded audio with level indicator

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • JVC DT-E21L4U 21.5 " Multi-Format HD LCD Monitor
  • AC Adapter
  • 12-17V DC Power Input Connector
  • 3-Way Stand for Versatile Installation
  • JVC Warranty
