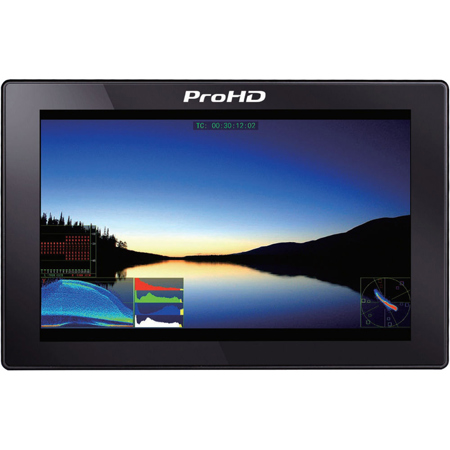

JVC DT-X73F 7" ProHD LCD VF Monitor
See all JVC items

JVC DT-X73F 7" ProHD LCD VF Monitor

SKU: JVDTX73F

This item is no longer available.

Recommended Alternatives

JVC DT-X71HI: Picture 1 regular
JVC DT-X71HI 7" On-Camera Field Monitor, 1024x600 Resolution, 400nit Brightness
$1,280.00
JVC ProHD 7" AC/DC: Picture 1 regular
JVC DT-X71HP ProHD 7" AC/DC Portable HD & C2K LCD Monitor
$1,280.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

JVC 7" ProHD LCD VF Specifications

  • Size

    7 inches

  • Display area

    151.2x94.5mm

  • Resolution

    1920x1200 (323PPI)

  • Color depth

    8-bit, 16.77 million color

  • Aspect ratio

    16:9 (4:3 adjustable)

  • Brightness

    450cd/sq. m

  • Contrast

    1200:1

  • Viewing angle

    H 160 Degree / V 160 Degree

  • Backlighting

    LED

  • Working voltage

    DC 6.5V-36V

  • Power consumption

    12W

  • Working temperature

    -10 Degree C - +50 Degree C

  • Working humidity

    10% - 90%

  • Storage temperature

    -15 Degree C - +60 Degree C

  • Storage humidity

    10% - 90%

  • Audio Meters

    SDI: 16-ch / HDMI: 8-ch
    Select any 2 channel to output
    Audio abnormal alert info display
    Display only 2-ch, 8-ch, or full 16-ch
    Chart position / Translucent adjust

  • Peaking Focus Assist

    Red / Blue lines select

  • Waveforms

    Y/Cb/Cr/R/G/B with single line selection
    White / Green / False color display
    Larger size waveform in center
    Chart position / Translucent adjust

  • Vector Scope

    White / Color / False color display
    Larger size vector pattern in center
    Chart position / Translucent adjust

  • Histogram

    R/G/B/Y histogram display
    100%-107% Over-exposure alert

  • Scale Markers

    4:3,13:9, 14:9, 15:9, 1.85:1, 2.35:1 markers
    Mask background translucent adjust

  • Compatible video formats: SDI:

    SMPTE ST 2048-2: 2048x1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60/2048x1080i (50 / 59.94 / 60)

  • SD:

    SMPTE-425M (Level A&B):1080p (60 / 59.94 / 50)
    SMPTE-274M:1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211;1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M:480i (59.94)
    ITU-R BT.656:576i (50)

  • Compatible video formats: HDMI:

    480i/ 576i / 480p / 576p
    720p (60 / 59.94 / 50)
    1080i (60 / 59.94 / 50)
    1080psf (30 / 29.97 / 25 / 24 / 23.98)
    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

  • CVBS:

    NTSC / PAL

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    Non universal

  • Dimensions

    184 x 120 x 33mm

  • Weight

    650g

  • UPC Code

    6948193503493

About JVC 7" ProHD LCD VF

After expanding their range of professional monitors, JVC presents the DT-X73, a standout model in the DT-X series. This compact, 7-inch ProHD LCD VF Monitor is perfectly designed for on-camera use, or as a control monitor within a system rack, providing versatility for various production environments.

The DT-X73 boasts full HD resolution, delivering crisp, clear images that enhance your viewing experience. Its robust construction ensures durability, while its extensive selection of accessories further enhances its functionality.

One of the key features of the DT-X73 is its support for 3G HD-SDI and input signals up to 2048x1080 50/60P. This high signal compatibility ensures seamless integration with a wide range of video equipment, making it a valuable addition to any professional setup.

Equipped with advanced measurement tools such as waveform, vectorscope, and histogram, the DT-X73 allows for precise image control. This makes it an ideal choice for playout or OB van applications, where accurate image representation is crucial.

Furthermore, the dual 9" rack-mounted model of the DT-X73 provides an optimal solution for those seeking a compact yet powerful monitor for their professional needs. With the JVC DT-X73 7" ProHD LCD VF Monitor, you can expect superior performance and reliability in all your video production tasks.

JVC 7" ProHD LCD VF Features

  • 7" optical bonding LCD, 1920x1200 resolution
  • All metal housing, thinner and stronger
  • 2K/3G/HD/SD-SDI, HDMI and CVBS
  • HDMI input converted to SDI output
  • Up to 16-ch embedded audio meters with alert
  • Select any 2 audio channels to output
  • Waveform Y/Cb/Cr/R/G/B and single line
  • Vector scope, R/G/B/Y histogram
  • GPI / TALLY input and control
  • Display soft TALLY and rear TALLY light
  • AFD, timecode, H/V delay
  • R/G/B/Mono, False color
  • Zebra stripes, Peaking focus assist
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • V-mount / Gold mount, DV battery plate install
  • USB firmware upgrade

Join VIP PRO

2 Day Delivery on thousands of items!

Request a Callback

Chat one-on-one with an expert

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Compact 7-inch ProHD LCD VF Monitor for on-camera or system rack use
  • Full HD resolution for crisp, clear image quality
  • Robust construction with a wide range of accessories for enhanced functionality
  • Supports 3G HD-SDI and input signals up to 2048x1080 50/60P for high signal compatibility
  • Equipped with advanced measurement tools such as waveform, vectorscope, and histogram
  • Dual 9" rack-mounted model for optimal professional use

What's in the box:

  • JVC DT-X73F 7 " ProHD LCD VF Monitor
  • Sun Hood
  • AC-DC Power Adapter
  • Arm Trestle
  • HDMI Cable
  • Battery Plate
