JVC GY-HM890U ProHD Compact Shoulder Mount Camera with Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens

SKU: JVGYHM890F17

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

JVC GY-HM890U Specifications

  • Image Sensor

    1/3" 2.2M pixels progressive scan 3CMOS

  • Synchronizing System

    Internal/external synchronization

  • Stabilizer

    Optical image stabilizer

  • Shutter Speed

    1/4 to 1/10000

  • Filter Diameter

    72mm

  • Gain

    -6dB, -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux (30dB, 36dB), ALC

  • ND Filter

    Clear, 1/4, 1/16, 1/64

  • LCD Display

    4.3" 1.15M pixels

  • Viewfinder

    0.45" 1.22M pixels

  • Recording Media

    2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 SD/Web only)

  • Video Recording

    Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264

  • File Format

    MOV (HD/SD/WEB), MP4 (XDCAM EX)
    MTS (AVCHD progressive), MXF

  • NTSC Recording Mode

    MPEG-2 Long GOP
    NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p
    SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p

  • PAL Recording Mode

    HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i
    SP mode: 1440 x 1080/50i, 1280 x 720/50p

  • AVCHD NTSC Setting

    Progressive mode (Max 28Mbps): 1920 x 1080/59.94p
    HQ mode (24Mbps): 1920 x 1080/59.94i
    SP mode (17Mbps): 1920 x 1080/59.94i
    LP mode (9Mbps): 1440 x 1080/59.94i
    EP mode (5Mbps): 1440 x 1080/59.94i

  • AVCHD PAL Setting

    Progressive mode (Max 28Mbps): 1920 x 1080/50p
    HQ mode (24Mbps): 1920 x 1080/50i
    SP mode (17Mbps): 1920 x 1080/50i
    LP mode (9Mbps): 1440 x 1080/50i
    EP mode (5Mbps): 1440 x 1080/50i

  • HD (H.264)

    NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
    UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
    PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)

  • SD (H.264)

    NTSC setting: 720 x 480/59.94i (GY-HM850U/HM890U only)
    PAL setting: 720 x 576/50i (GY-HM850E/HM890E only)

  • Web (H.264)

    NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p
    LP mode (1.2Mbps): 480 x 270/29.97p, 23.98p
    PAL setting: HQ mode (3Mbps): 960 x 540/25p
    LP mode (1.2Mbps): 480 x 270/25p

  • Audio Recording

    LPCM 2ch/4ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 2ch (AVCHD), ½-law 2ch (Web)

  • Video Input

    SDI input (BNC x1) (GY-HM890 only)

  • Video Output

    Composite output (BNC x 1), 3G SDI output (BNC x 1), HDMI output x 1

  • Audio Input

    XLR 3-pin x 2, (MIC,+48V, LINE)/f3.5mm stereo mini jack x 1

  • Audio Output

    RCA x 2

  • Headphone

    3.5mm mini jack x 2

  • Genlock Input

    BNC x 1

  • Time Code Input/Output

    BNC x each 1

  • Remote

    DIN 6-pin x 1/f2.5mm mini jack x 1

  • USB

    HOST x 1 (Network connection)/DEVICE x 1 (Mass storage)

  • DC Input

    XLR 4-pin x1

  • Power

    DC 12V (10.5V-17V)

  • Power Consumption

    Approx. 28W (Camera body with provided lens and LCD/VF ON, single recording mode, default settings)

  • Operating Temperature

    -20½C to 50½C (14½F to 122½F)

  • Operating Humidity

    35% to 80%

  • Storage Temperature

    -20½C to 50½C (14½F to 122½F)

  • Storage Humidity

    Under 85%

  • Dimensions (LxWxH)

    20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3mm)

  • Weight

    Without battery: Approx. 8.9 lbs (4.0kg)
    With battery: Approx. 10.6 lbs (4.8kg)

8 Accessories for JVC GY-HM890U ProHD Compact Shoulder Mount Camera with Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens

  • All Accessories (8)
  • Bags & Cases (2)
  • Microphones & Audio (3)
  • Monitor & Recorder (2)
  • Headphones (1)

About JVC GY-HM890U

While capturing professional-grade videos, the JVC GY-HM890U ProHD Compact Shoulder Mount Camera, equipped with a Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens, stands out as a high-quality, durable, and versatile choice. This advanced 3-CMOS camera delivers pristine HD images to solid-state memory while simultaneously streaming via Wi-Fi or a plug-in LTE modem.

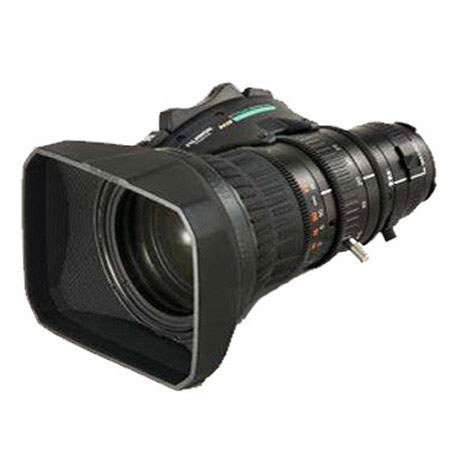

Designed specifically for JVC's ProHD line of ENG 1/3" camcorders, the Fujinon XT17sx45BRMK1 lens offers an enhanced wide-angle zoom range of 4.5-77mm. It also features Quick Zoom and Cruising Zoom functions, previously found only in higher-end models. This lens, known for its high build quality and precision optics, has become the industry standard for professional video applications worldwide.

The JVC GY-HM890U is designed for both studio and field production, with a shoulder-mount form factor and a multi-pin connection that accommodates JVC fiber or multi-core camera modules. It's compatible with a full range of studio components, including customized studio sled, zoom and focus controls, CCUs, and 8.4-inch LCD viewfinder, as well as box-style lenses from Canon and Fujinon.

This camera also includes an HD/SD-SDI pool feed input that can record and stream video and audio from another camera or SDI source during press conferences or other pool feed environments. It supports LANC remote controllers and JVC's proprietary wired remote control system.

The camcorder features three, 1/3-inch 2.07 effective megapixel CMOS sensors, capturing full 1920x1080 images. The imagers provide 12-bit processing, F12 sensitivity (50Hz), and an excellent signal-to-noise ratio to produce superior color reproduction.

The GY-HM890U records HD or SD footage in a variety of formats for compatibility with most major NLE systems. It offers simultaneous recording of a full HD file on one memory card and smaller, web-friendly H.264 files on the other. Dual SDHC/SDXC card slots allow simultaneous recording or relay recording to low-cost, non-proprietary media.

The camera's live HD streaming and file transfer capabilities are enhanced by JVC's exclusive dual codec design. This allows the camera to transmit live HD footage or transfer files in the background while users continue to record footage in their normal workflow.

The GY-HM890U also features a built-in GPS for recording location information, and metadata can be edited on a smartphone or tablet and transferred to the camera via Wi-Fi. It's compatible with Advanced Streaming Services, powered by Zixi, for reliable live content delivery.

In summary, the JVC GY-HM890U ProHD Compact Shoulder Mount Camera with Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens is a high-quality, professional, and versatile tool for any videographer seeking superior image quality and flexible recording options.

JVC GY-HM890U Features

  • Adorama Camera Valuable Bundle. Kit Includes.
  • JVC GY-HM890U ProHD Compact Shoulder Mount Camera, Shotgun Microphone, JVC Limited Warranty (1 Year Labor, 2 Year Parts).
  • JVC GY Fujinon 17X Lens

Product Documents

User Manual

Key Features

  • Advanced 3-CMOS camera with high-definition recording and streaming capabilities
  • Equipped with a Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens for superior image quality
  • Dual codec design for simultaneous recording of a full HD file & smaller, web-friendly H.264 files
  • Compatible with a wide range of studio components and box-style lenses from Canon and Fujinon
  • Live HD streaming and file transfer capabilities enhanced by Advanced Streaming Technology (AST)
  • Built-in GPS for recording location information and metadata editing via Wi-Fi

What's in the box:

  • JVC GY-HM890U ProHD Compact Shoulder Mount Camera
  • Fujinon XT17sx45BRMK1 17x 4.5mm HD ENG Lens
  • Viewfinder
  • Anton Bauer Battery Plate
  • Shotgun Microphone
  • JVC 3 Year Warranty (1 Year on Lens)
