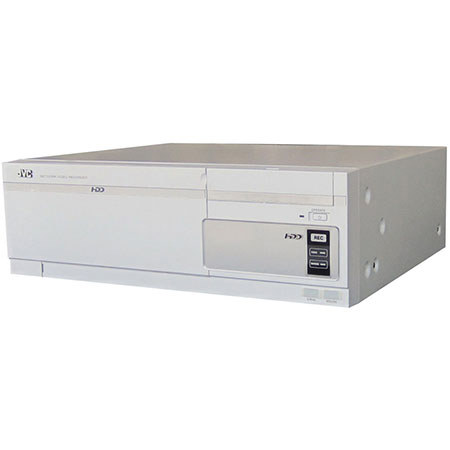

JVC VR-X3200U 32 Channel Network Video Recorder, 1TB HDD, RAID 1/5/10

SKU: JVVRX3200U

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

JVC VR-X3200U Specifications

  • Camera channel

    32-Ch licensed

  • Video compression

    H.264 / MPEG-4 / JPEG

  • Audio compression

    u-law (64kbps) A/D 8 bit, Fs 8KHz

  • Frame Rate

    Without local view (Recording / Local viewing / Distribution):
    H.264 VGA: 2800 / 0 / 450 ips
    H.264 720P: 900 / 0 / 150 ips
    H.264 720P: 480 / 0 / 66 ips
    PEG VGA: 270 / 0 / 192 ips
    With local view (Recording / Local viewing / Distribution):
    H.264 VGA: 450 / 450 / 450 ips
    H.264 720P: 150 / 150 / 150 ips
    H.264 Full HD: 66 / 66 / 66 ips
    JPEG VGA: 192 / 192 / 192 ips

  • CPU and memory

    Intel Core i3 3GHz, RAM 4GB

  • HDD capacity

    1TB pre installed
    3TB additional (Optional bracket VR-HD0U is required to HDD installation additionally)

  • NAS archiving

    Yes

  • RAID

    RAID 1, 5, 10 initially, RAID 6 optionally

  • Export function

    Export media: ISB memory, CD-R/RW or DVD-R/RW (USB external)
    Export format: AVI (video), JPEG (image), database (internal format)

  • Recording function

    Alarm recording, Scheduled recording, Manual recording

  • Search function

    Normal/Slow/Fast playback, fast forward and reverse, Frame-by-frame playback

  • Security

    Protected by user name and password

  • Supported protocol

    HTTP, SMTP(client), TCP, DHCP(client/IP lease), ARP, DNS(client), NTP, SNMP(ver1 and 2c)

  • System Requirement (for NVR Viewer)

    OS: Microsoft Windows XP professional, Windows Server 2003, Windows Server 2008 R1/R2 Windows Vista (Business, Enterprise, Ultimate), Windows 7 (Professional, Enterprise, Ultimate)
    CPU: Intel Core2 Duo 2.4GHz or higher
    RAM: 1GB
    Network: 100Mbit or higher
    HDD: 100 MB free
    Graphic: AGP or PCI-Express, minimum 1024 x 768 (1280 x 1024 recommended), 16-bit color
    Other: DirectX 9.0 or newer required to run Playback Viewer application, Microsoft .Net Framework 4.0

  • Supported devices

    VN-V17U/217U/217WPU, VN-H37U/137U/57U/157U/157WPU/237U/237VPU/257U/257VPU/VN-V25U/26U/X35U, VN-V225U/V225VPU/X235U/X235VPU/VN-V685U/V686U/V686WPU/V686BU/V686WPBU/AXIS 206/207/2099FD/211/211A/216FD/225FD/20W/212/213/214

  • I/F

    LAN1 / LAN2: 1000BASE-T, 100BASE-TX, 10BASE-T
    Serial: 6x USB 2.0
    Display: RGB, DVI (digital only)
    External storage: eSATA
    Audio in/out: 2x mini jack
    Alarm terminal: 12x Input, 5x Output/3x GND

  • Power

    120V AC - 240V AC, Max 1.2 A (120VAC) consumption

  • Operating temperature

    5 to 40 deg. C / 41 to 104 deg F

  • Dimensions

    16.54 x 5.51 x 13.78" / 420 x 140 x 350mm

  • Weight

    Excluding power supply: 20.06lbs / 9.1kg

About JVC VR-X3200U

Because security is paramount in today's digital age, the JVC VR-X3200U 32 Channel Network Video Recorder stands as a robust solution for high-definition surveillance. This advanced device is an ideal match for JVC's innovative line of SuperLoLuxHD security cameras, designed with cutting-edge CMOS technology.

The VR-X3200U comes equipped with enduring built-in camera licenses, eliminating the need for recurring fees and providing cost-effective operation. This feature-rich Network Video Recorder is built on the reliable platforms of Milestone XProtect Enterprise and Windows Embedded OS, ensuring seamless, enterprise-level recording and viewing capabilities.

With the VR-X3200U, you can enjoy full HD recording across an unlimited number of Network Video Recorders, cameras, sites, and users, making it a versatile choice for large-scale operations. Its compatibility with over 1,000 different camera and encoder models, achievable through the installation of the latest Milestone device driver pack, further enhances its adaptability.

Moreover, the JVC VR-X3200U offers a wide array of software add-ons and third-party integrations, making it a flexible solution for various security needs. Its fully documented Software Development Kit (SDK) also allows for custom modifications, ensuring it can be tailored to meet specific requirements.

In summary, the JVC VR-X3200U 32 Channel Network Video Recorder, with its 1TB HDD and RAID 1/5/10 support, is a comprehensive solution for high-definition, large-scale surveillance, offering unparalleled flexibility and adaptability.

JVC VR-X3200U Features

  • Pre-installed Milestone Xprotect Enterprise for user friendly interface
  • 32 channel fully camera licensed
  • Optional camera licenses expand your system efficiently
  • H.264 / MPEG-4 / JPEG multi format
  • 2800 ips recording maximum [H.264 VGA]
  • Preinstalled 1 Terebyte drive
  • Three HDD expansion slots for additional storage up to 4TB
  • Maintenance friendly HDD installation mechanism from the front panel
  • Reliable design, MTBF 49,000 hours
  • Reliable and high performance components for industrial use provide durable and stable performance
  • Master/Slave configuration for large system without any additional license or server PC
  • Support RAID 1, 5, 10 initially and 6 optionally
  • Remote setup and monitoring by PC
  • Alarm interface on rear panel
  • Password protection for exported data and total system protection

Key Features

  • High-definition 32 Channel Network Video Recorder from JVC, perfect for large-scale surveillance
  • Equipped with enduring built-in camera licenses, eliminating recurring fees
  • Compatible with over 1,000 different camera and encoder models for versatile use
  • Offers a wide array of software add-ons & third-party integrations for flexible security solutions
  • Includes a fully documented Software Development Kit (SDK) for tailored modifications

What's in the box:

  • JVC VR-X3200U 32 Channel Network Video Recorder
  • Quick Reference
  • Set Up Guide
  • Power Cord (2.4m)
  • 2x Power Cord (2m)
  • 2x Rack Mount Bracket
  • 6x Screw (M4 x 11mm)
  • 4x Screw (M5 x 10mm)
  • JVC 3 Year Labor and Parts Warranty
